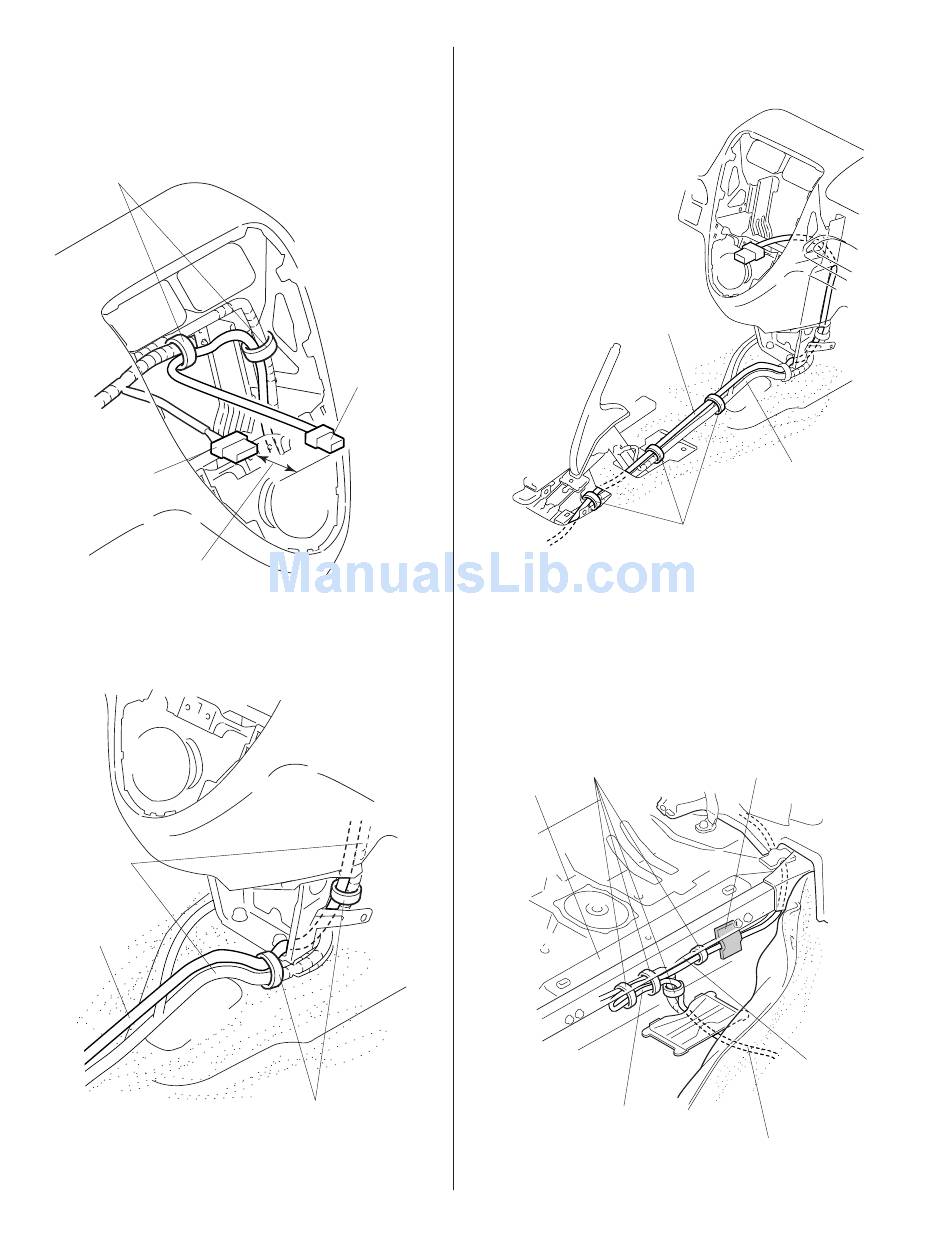

53. Route the bus cable so that its connector is
about 50 mm farther than the vehicle 20-pin
connector. Secure the bus cable to the vehicle
harness with two wires in the areas shown.
WIRE TIE
VEHICLE 20-PIN
CONNECTOR
About 50 mm
54. Secure the bus cable to the vehicle harness with
two wire ties in the areas shown.
VEHICLE
HARNESS
BUS CABLE
12 of 14
BUS CABLE
CONNECTOR
WIRE TIE
AII 27936 (0408)
55. Near the parking brake lever, secure the bus cable
to the vehicle harness with three wire ties in the
areas shown.
BUS
CABLE
56. Loop the excess bus cable at the floor cross
member, and secure it to the vehicle harness with
four wire ties and one cushion tape. Clean the area
where the cushion tape will attach with isopropyl
alcohol.
FLOOR
WIRE TIE
CROSS
MEMBER
Loop the bus cable,
and secure it to the
vehicle harness with
four wire ties and one
cushion tape.
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
VEHICLE
HARNESS
WIRE TIE
CUSHION TAPE
VEHICLE
HARNESS
BUS CABLE
