Honda 2008 PILOT Installation Instructions Manual

Cassette/mp3 player (ex).
Hide thumbs


Advertisement

INSTALLATION
INSTRUCTIONS

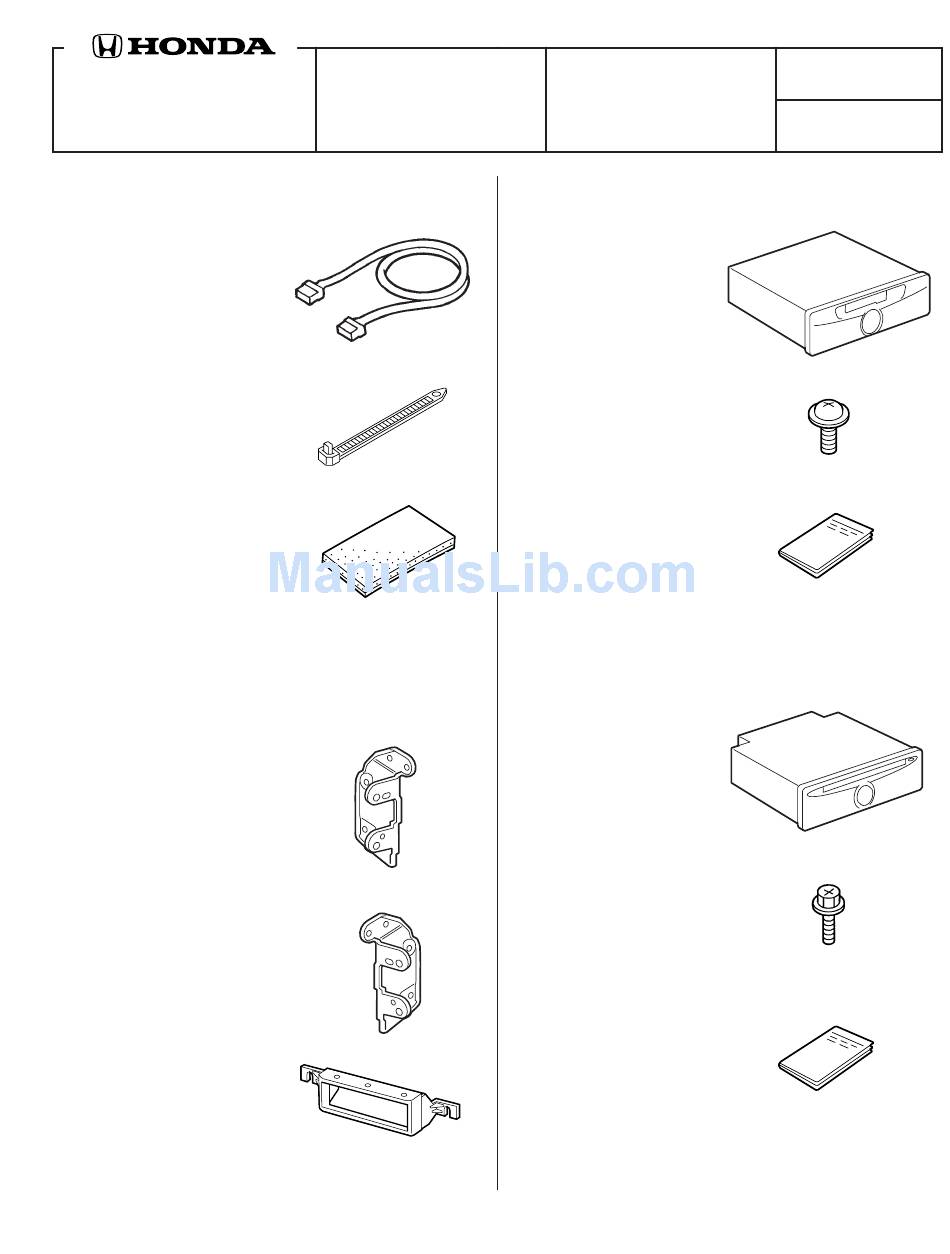

Player Attachment Kit (sold separately) :
P/N 08B06-S9V-100A
Bus cable
3 Wire ties
3 EPT sealer
DIN Bezel Kit (sold separately) :
P/N 08B23-S9V-100C
Left player bracket
Right player bracket
DIN bezel
©
2007 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
CASSETTE/MP3 PLAYER
(EX)
All 37152 (0706)
Application
2008 PILOT

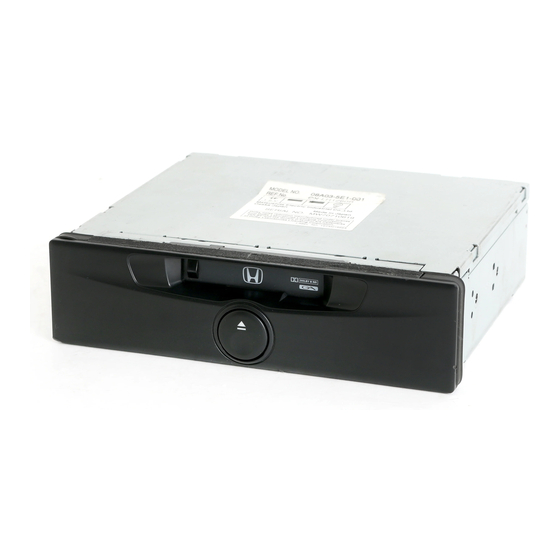

Cassette Player (sold separately) :
P/N 08A03-5E1-001
Cassette player
4 Washer-screws, 5 x 8 mm
Owner's manual
MP3 Player (sold separately) :
P/N 08A06-4E1-201
MP3 player
4 Washer-bolts, 5 x 8 mm
Accessory user's information
manual
Publications No.
All 37152
Issue Date
JULY 2007
1 of 6
08B06-S9V-1B00-91

Advertisement

   Also See for Honda 2008 PILOT

   Related Manuals for Honda 2008 PILOT

   Summary of Contents for Honda 2008 PILOT

  • Page 1

    P/N 08B23-S9V-100C MP3 player Left player bracket 4 Washer-bolts, 5 x 8 mm Right player bracket Accessory user's information manual DIN bezel 1 of 6 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. All 37152 (0706) 08B06-S9V-1B00-91...

  • Page 2

    Make sure you have the anti-theft code for the radio, then write down the frequencies for the preset buttons. Disconnect the negative cable from the battery. 2 of 6 © All 37152 (0706) 2007 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 3

    Unplug the vehicle connector from the accessory socket, and remove the center panel. 10. Remove four screws that fasten the left and right 3 of 6 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. All 37152 (0706)

  • Page 4

    SELF- TAPPING SCREWS AUDIO PANEL OPENING SELF- POCKET RIGHT TAPPING VEHICLE SCREWS BRACKET (not reused) CABLE 30 mm HEATER CONTROL UNIT OPENING 5426240Y 4 of 6 © All 37152 (0706) 2007 American Honda Motor Co., Inc. - All Rights Reserved.

  • Page 5

    18. Connect the bus cable 14-pin connector to the VEHICLE 14-PIN VEHICLE 20-PIN CONNECTOR CONNECTOR (2WD vehicle only.) ANTENNA CONNECTOR AUDIO UNIT AUDIO BRACKET AUDIO SCREWS BRACKET (Reuse.) 5426260Y 5 of 6 © 2007 American Honda Motor Co., Inc. - All Rights Reserved. All 37152 (0706)

  • Page 6

    29. Pull up on the driver’s window switch to close the window completely, then hold the switch for 2 seconds or more. 30. Test the AUTO window function. 6 of 6 © All 37152 (0706) 2007 American Honda Motor Co., Inc. - All Rights Reserved.
