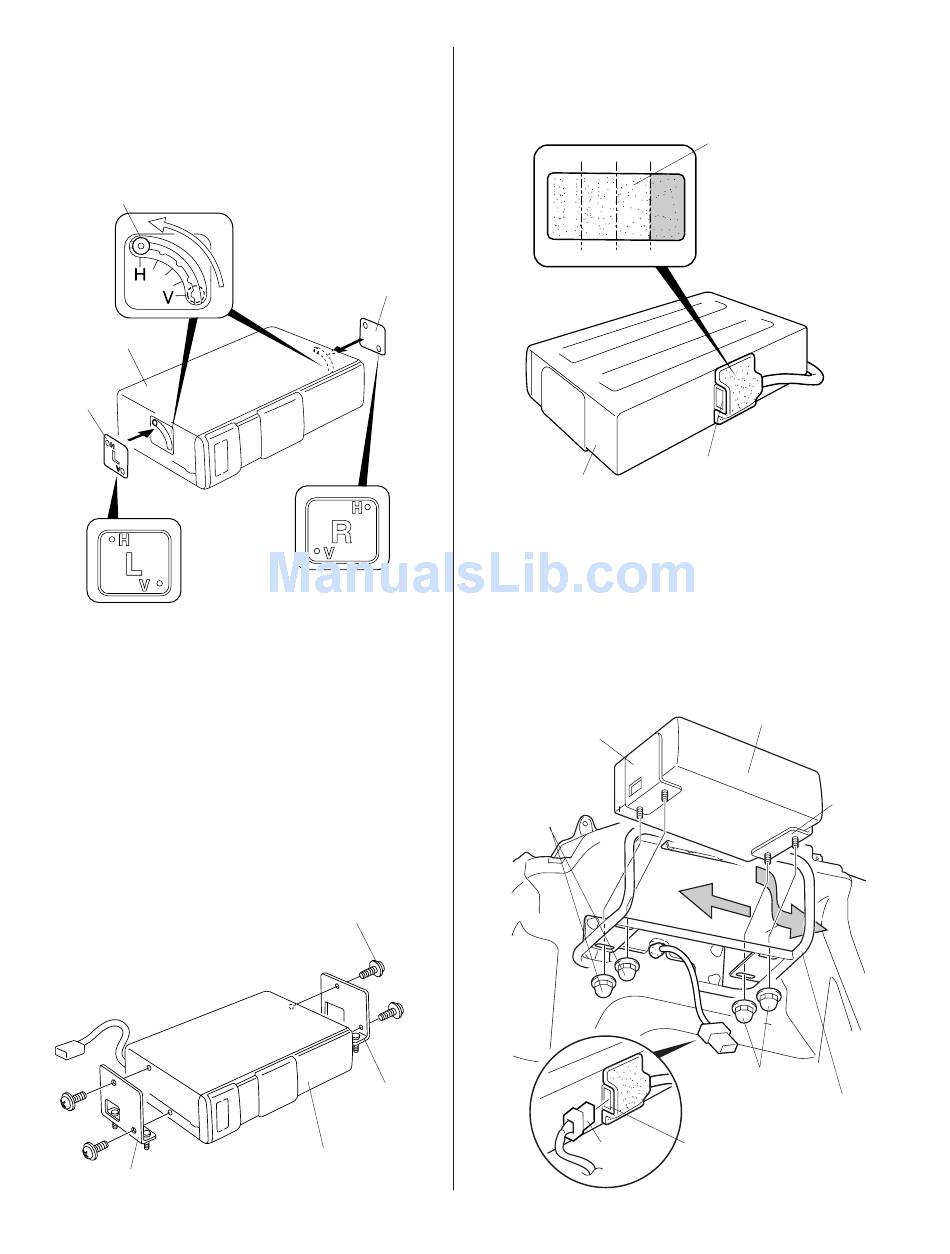

42. Visually check the position of the spring adjusting
pins on both sides of the CD changer. If both of the
spring adjusting pins are not in the horizontal (H)
position, move the pins to the horizontal (H)
position by sliding them up with an awl.
SPRING ADJUSTING PIN
(H: HORIZONTAL POSITION)
CD CHANGER
LOCKING
COVER
43 Remove the backing from the "L" and "R" locking
covers, and attach them to the sides of the CD
changer. Align the diagonally opposite holes with
the H and V positions.
44. Position the side brackets on the CD changer, and
install the four washer-screws supplied with the CD
Changer Attachment Kit. Note the direction of the
side brackets. The square hole in each of the
brackets should face the rear of the CD changer.
Tighten the washer-screws securely.
LEFT SIDE BRACKET
10 of 14
LOCKING
COVER
WASHER-SCREWS (4)
(Supplied with CD
changer attachment kit)
RIGHT SIDE
BRACKET
CD CHANGER
AII 27936 (0408)
45. Secure the CD changer bus cable connector to the
CD changer with the remaining 3/4 piece of the
EPT seal cut in step 36.
CD CHANGER
46. Connect the bus cable connector to the CD
changer bus cable connector.
47. Insert the studs of the right and left side brackets
installed on the CD changer into the holes in the
CD changer bracket, and install a cap nut on the
end of each stud. Tighten the cap nuts securely.
LEFT SIDE
BRACKET
6 mm CAP
NUT
BUS
CABLE
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
EPT SEAL
(Remaining piece of
the EPT seal cut in
step 36)
CD CHANGER BUS
CABLE CONNECTOR
CD CHANGER
RIGHT
SIDE
BRACKET
6 mm CAP
NUT
CD CHANGER
BRACKET
CD CHANGER BUS
CABLE CONNECTOR
