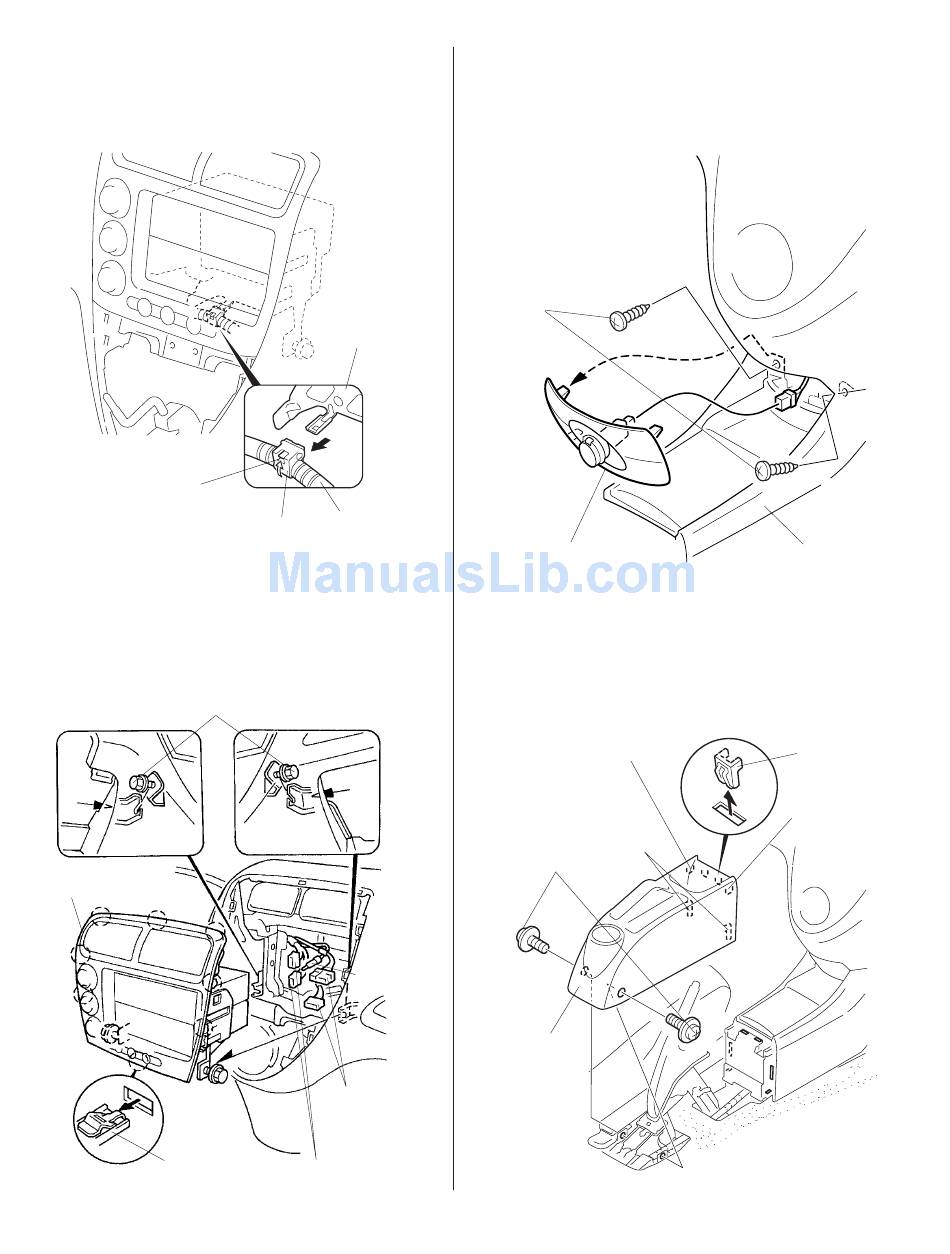

7. Remove the vehicle harness clip from the center
panel bracket by pushing up on the locking tab on
the clip and pulling the clip out toward you.
Push on the
locking tab.
8. Reach through the glove box area, and loosen the
bolt that secures the center panel. Reach through
the area near the steering wheel, and loosen the
bolt that secures the center panel. Remove the
center panel (eight clips, and unplug the
connectors).
BOLTS
(Loosen from the inside.)
CENTER
PANEL
CLIPS (8)
4 of 14
CENTER
PANEL
BRACKET
VEHICLE
CLIP
HARNESS
ANTENNA
LEAD
VEHICLE
CONNECTOR
VEHICLE
CONNECTOR
AII 27936 (0408)
9. Remove the dashboard center lower cover, and
disconnect the accessory power socket connector.
Remove the two self-tapping screws from the back
of the front center console.
SELF-TAPPING
SCREW
DASHBOARD CENTER
LOWER COVER
10. Slide the front seat completely forward. Remove
the rear center console (two washer-screws, two
clips, and two retaining tabs). Take care not to
damage the clips and retaining tabs.
RETAINING
TABS (2)
HOOK
WASHER-
SCREW
REAR
CENTER
CONSOLE
© 2004 American Honda Motor Co., Inc - All Rights Reserved.
FRONT CENTER
CONSOLE
CLIPS (2)
RETAINING
TAB
