Atlona AT-HDPIX User Manual

Usb to hdmi
Hide thumbs Also See for AT-HDPIX:

Advertisement

Quick Links

AtlonA
USB to HDMI Converter

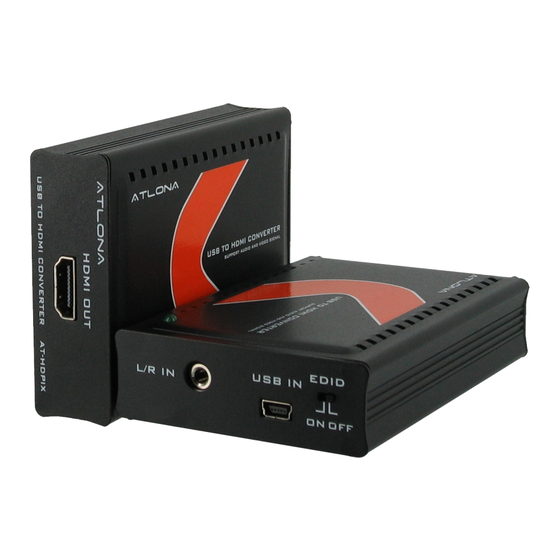

AT-HDPIX
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Atlona AT-HDPIX

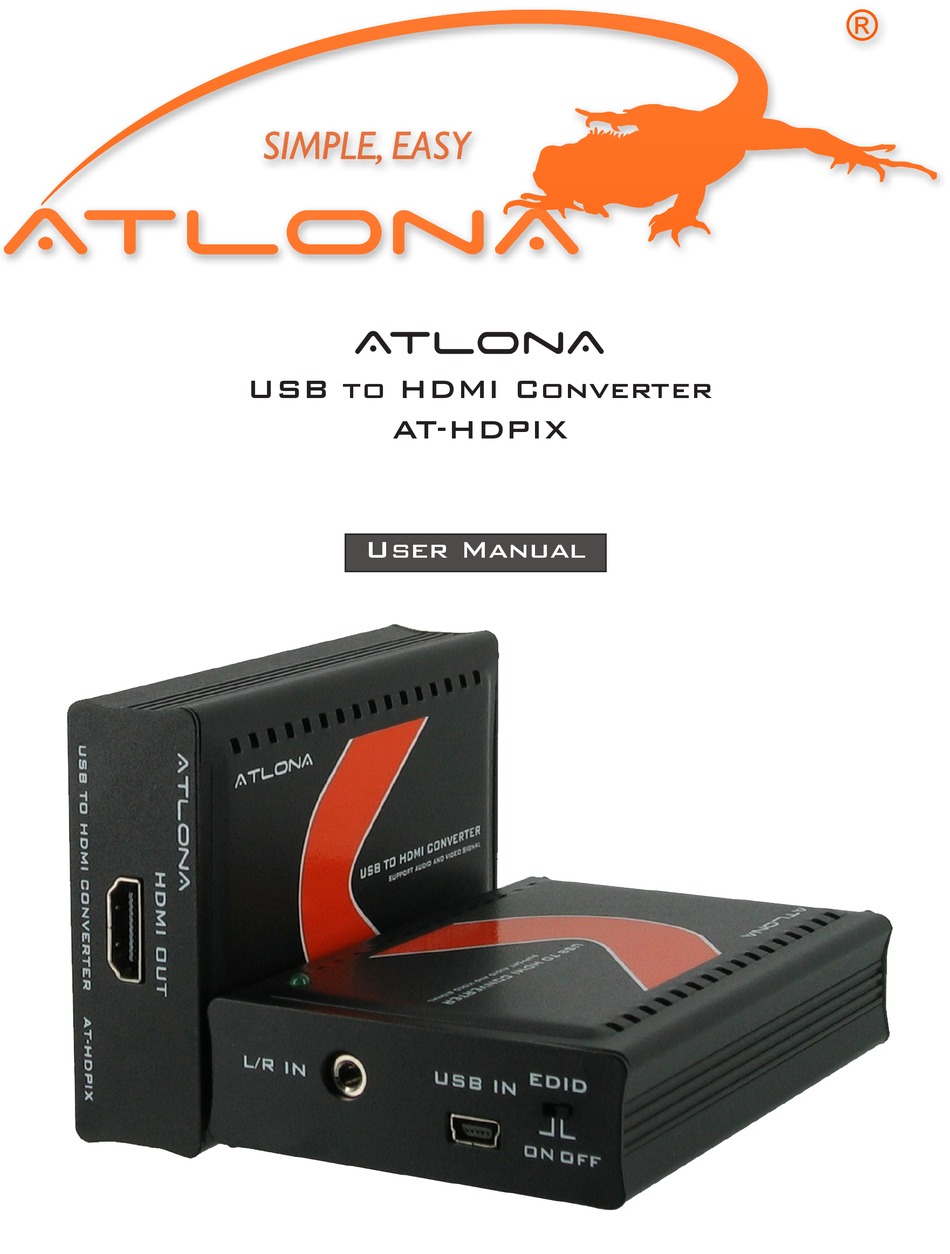

  • Page 1 AtlonA USB to HDMI Converter AT-HDPIX User Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. PC Requirements ..........3.1 Mac Requirements ..........4. Installation ..........5.0 Updates ..........5.1 Screen Resolution ..........5.2 Color Quality ..........5.3 Screen Rotation ..........5.4 Extend To ..........5.5 Extend ..........
  • Page 3: Introduction

    Introduction Atlona Technologies presents the all new USB to HDMI adaptor, the HDPiX. This new solution is designed to add a HDMI port to any computer (Mac or PC) and has limitless applications in both consumer and commercial environments. From digital...
  • Page 4: Installation

    Installation Insert CD into CD-ROM drive Run the SETUP.EXE file and select language to install Connections: Options # 1 Extended Screen Options # 2 Mirror Screen Updates From this menu the software can be updated online, or configured for automatic updates...
  • Page 5: Screen Resolution

    Screen Resolution Screen Resolution for extended display or mirrored display. To change the resolution, you have to be in extended mode. Color Quality Color Quality can be selected to 16 bit or 32 bit...
  • Page 6: Screen Rotation

    Screen Rotation Normal - screen is in normal position Rotated left - Rotates screen to the left Rotated right - Rotates screen to the right Upside-Down - Rotates screen upside down Extend To When multiple displays are connected the image can be extended separately to different monitors.
  • Page 7: Extend

    Extend Extends the desktop to second display Mirror Mirros desktop to second display. When connecting to computer LCD the PC and the MAC display settings are unchanged. The max resolution that can be displayed on the mirror display is 1600x1200. If connecting to a LCD or Plasma TV the PC display settings need to be set at 1024x768 the MAC display settings are unchanged...
  • Page 8: Off

    Turns off software. Advanced Windows Display Settings...
  • Page 9: Technical Specifications

    Technical Specifications * Compatible with Windows 2000, XP and Vista * Compatible with Mac OS 10.4.1 or higher * Audio connector: 3.5mm stereo jack (1/8) * USB connector: mini-USB female * HDMI connector: Standard HDMI 19-pin female * Dimensions: 3.2” W x 0.8” H x 2.2” D * Gross Weight: 1lb 3.5mm stereo jack (1/8) mini-USB female...
  • Page 10: Hdpix Troubleshooting Guide

    HDPiX Troubleshooting guide Problem Solution If your HDPiX doesn’t turn a. Turn of all Programs that are running (i.e. Internet Explorer, Microsoft Word) and re- on after being plugged in connect the HDPiX try the following: b. If you have an Antivirus running, disable it and reconnect the HDPix. Once the HDPiX connects turn the Antivirus program back on.
  • Page 11: Safety Information

    • When it is done updating, disconnect the HDPiX and reconnect to the PC that did not recognize it. • The HDPiX should now work If the HDPiX is still not working after the updates, please contact the Atlona Technical Support department at: 1 877 536 3976...
  • Page 12: Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
  • Page 13: Product Registration

    At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
