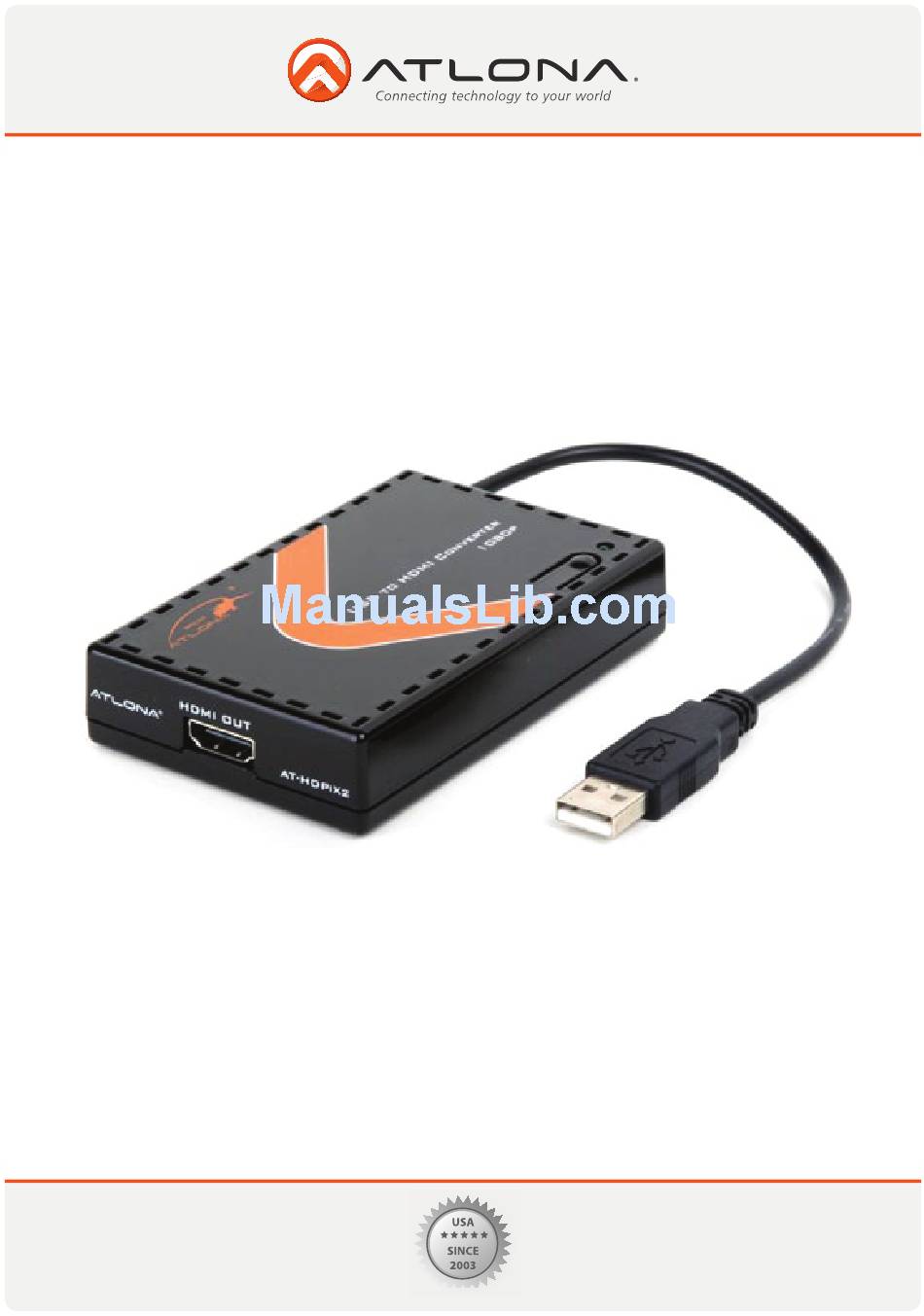

- Page 1 Atlona USB to HDMI Converter AT-HDPiX2 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
12.3.5. Changing the main display ..........16 12.4. Configuring Displays from the Menu Bar ..........17 13. Known Issues ..........17 14. Safety Information ..........18 15. Warranty ..........19 16. Atlona Product Registration ..........20 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Set up is as simple as plug and play; convenient for any user, no matter the level of technical knowledge. Connect up to 6 x AT-HDPiX2 to a PC and up to 4 x AT-HDPiX to a Mac. The HDPiX2 is able to display resolutions up to 1080p or... -
Page 4: Features
Operating System Support Window XP/7, Vista 32/64, Mac OS X Tiger 10.4.11 or Mac OS X Leopard 10.5.5 and Snow Leopard 10.6.3 Dimensions (mm) 114 x 65 x 26 Wight (g) Chassis Material Aluminum Color Black Operating Temperature 10°C ~ 40°C Power Consumption Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Installation
INSTALLATION Monitor AT-HDPiX2 Notebook / PC 1. Step 1: Insert the provided CD , then execute the Setup.exe file and select your language to install. If you don’t have a CD, please download drivers from: http://www.displaylink.com/support/downloads.php 2. Step 2: Connect the unit to an USB 2.0 port of your computer. -
Page 6: Using The Displaylink Manager
Screen Resolution: Select the screen resolution (available only in extended mode). NOTE: When display has build-in native EDID the screen will show the display’s resolution, if no EDID the screen have the follow resolution. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... - Page 7 Color Quality: Select the screen color quality (available only in extended mode). Screen Rotation: Rotate the screen on the additional monitor by 90, 180 or 270 degrees. Extend to: Reposition the extended screen to the top, bottom, left or right of the primary display. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 8 Extend: Set the DisplayLink Manager to Extended mode. Set as Main Monitor: Set the monitor to be the main monitor. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 9 Notebook Monitor off: Set the PC/notebook’s monitor off. Mirror: Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional monitor. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
- Page 10 Off: Disable the HDPiX2 Manager on the system. Advanced: Directly access the Display Properties. You can also adjust the resolution, color quality, position and re- fresh rate via the Display Properties. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 11: Using Multiple Hdpix2 Units
8.3. Software Update (THIS STEP IS RECOMMENDED AS IT SOLVES A LOT OF ISSUES) Click the Updates -> Check Now…, and it will check and download the latest fi immediately.. NOTE: Confirm that your computer is already connected to the network. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 12: Uninstall The Device Driver
Follow the steps below to uninstall the driver of the Multi View. Step 1: Open the Control Panel: Start -> Control Panel -> Add or Remove Programs. Step 2: Select USB to HDMI DisplayLink Adapter and click Remove. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 13: Troubleshooting
Check the display settings and make sure that your display number 2 is on pass the right side of the the right side of display number 1. screen as it should on extended desktop Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 14: Setup Guide
It is possible to use the ‘Gather Windows’ button to bring all the ‘Display Preferenc- es’ windows onto the main display. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 15: Setting The Display Resolutions
Display Preferences: Rotation Options Each time the user rotates, any settings made to the mode, resolution, frequency or depth are remembered the next time the user switches back to that angle of rotation. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 16: Setting The Position Of Displays
When in Mirror mode, additional displays will display what is being shown on the primary display. Checking the “Mir- ror Display” on the ‘Arrangement’ pane enables this feature. Display Preferences: Displays set to Mirror Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 17: Setting The Display To Extend
The ‘Menu Bar’ can be moved so that it is shown on an alternative display. Clicking the white menu bar and dragging it to the desired display will perform this action. Display Preferences: Moving Menu Bar Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 18: Configuring Displays From The Menu Bar
OpenGL, Quartz Extreme, Quartz Composer and other framework based on OpenGL will not be fully sup- ported. Examples of such features are Keynote Presentations, iPhoto Slideshows and iMovie. The most up to date information about known issues and FAQs can be found at: www.displaylink.com/mac Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 19: Safety Information
It may also cause damage to your AT-HDPiX2. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 20: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 21: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
