Page 1: User Manual

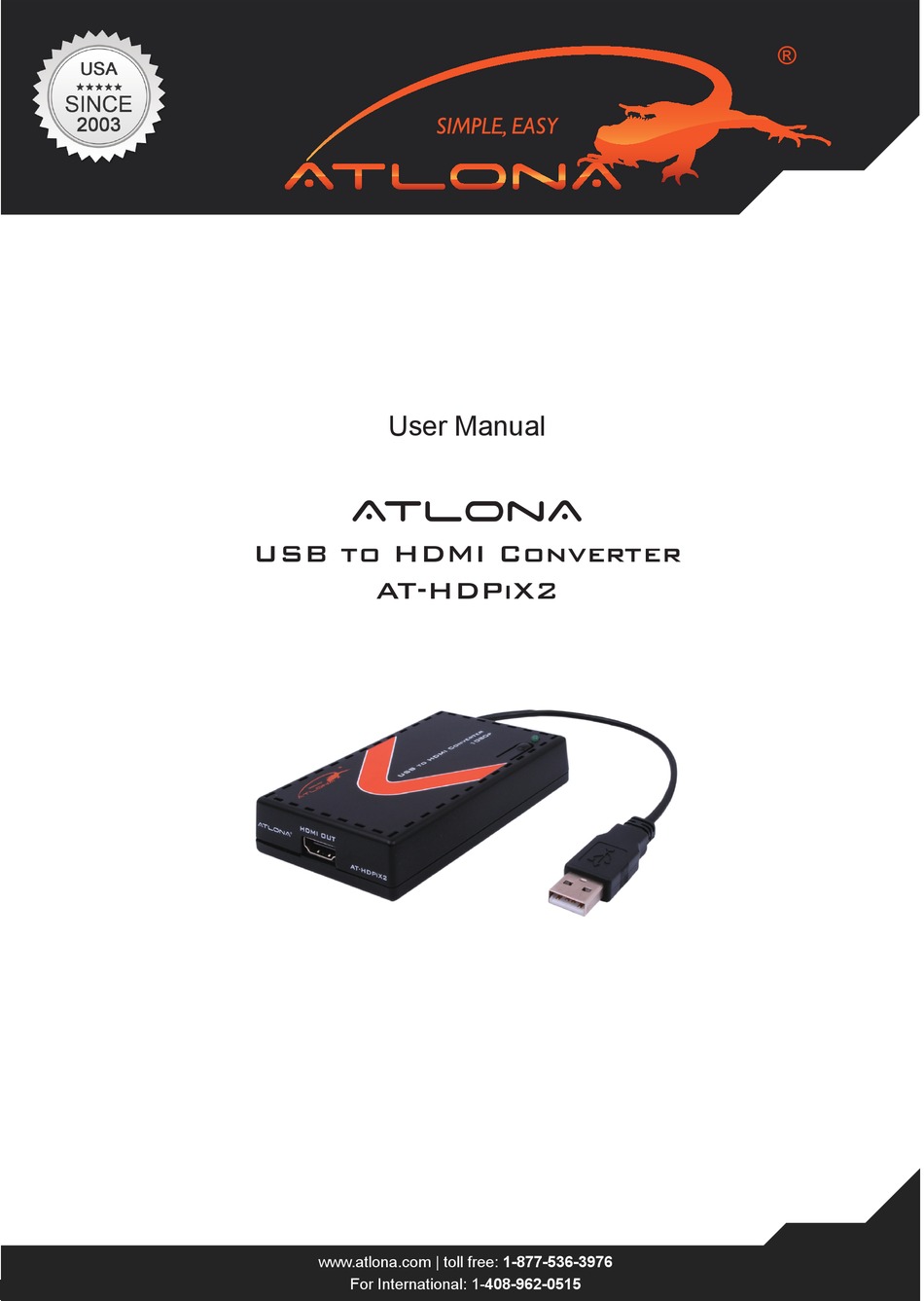

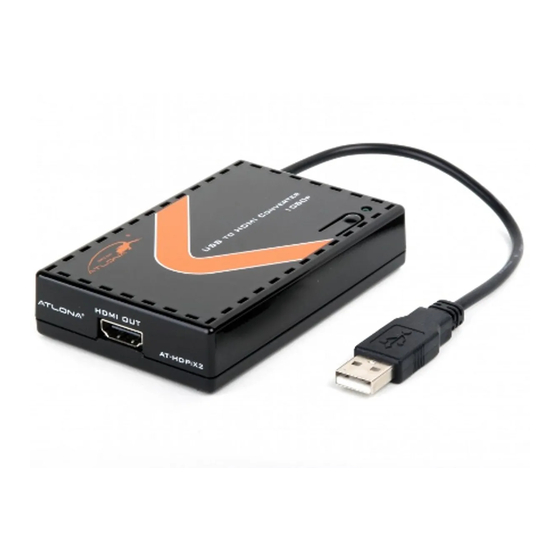

User Manual AtlonA USB to HDMI Converter AT-HDPiX2 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 2: Table Of Contents
12.3.4. Using both extended and mirrored displays ........12.3.5. Changing the main display ..........12.4. Configuring Displays from the Menu Bar ..........13. Known Issues ..........14. Safety Information ..........15. Warranty ..........16. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
Set up is as simple as plug and play; convenient for any user, no matter the level of technical knowledge. Con- nect up to 6 x AT-HDPiX2 to a PC and up to 4 x AT-HDPiX to a Mac. The HDPiX2 is able to display resolutions... -
Page 4: Features
Window XP/7, Vista 32/64, Mac OS X Tiger 10.4.11 or Mac OS X Leopard 10.5.5 and Snow Leopard 10.6.3 Dimensions (mm) 114 x 65 x 26 Wight (g) Chassis Material Aluminum Color Black Operating Temperature 10°C ~ 40°C Power Consumption www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Installation
Switching from ON to OFF inputsource PC must be reboot in order for the device to use the built-in EDID. However, from OFF to ON the reboot is not necessary. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Using The Displaylink Manager
Screen Resolution: Select the screen resolution (available only in extended mode). NOTE: When display has build-in native EDID the screen will show the display’s resolution, if no EDID the screen have the follow resolution. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... - Page 7 Screen Rotation: Rotate the screen on the additional monitor by 90, 180 or 270 degrees. Extend to: Reposition the extended screen to the top, bottom, left or right of the primary display. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
- Page 8 Extend: Set the DisplayLink Manager to Extended mode. Set as Main Monitor: Set the monitor to be the main monitor. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
- Page 9 Notebook Monitor off: Set the PC/notebook’s monitor off. Mirror: Set the DisplayLink Manager to Mirror mode. You can see the same desktop image on the additional monitor. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
- Page 10 Off: Disable the HDPiX2 Manager on the system. Advanced: Directly access the Display Properties. You can also adjust the resolution, color quality, position and refresh rate via the Display Properties. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 11: Using Multiple Hdpix2 Units
8.3. Software Update (THIS STEP IS RECOMMENDED AS IT SOLVES A LOT OF ISSUES) Click the Updates → Check Now…, and it will check and download the latest fi immediately.. NOTE: Confirm that your computer is already connected to the network. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Uninstall The Device Driver
Follow the steps below to uninstall the driver of the Multi View. Step 1: Open the Control Panel: Start → Control Panel → Add or Remove Programs. Step 2: Select USB to HDMI DisplayLink Adapter and click Remove. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 13: Troubleshooting
Check the display settings and make sure that your display number 2 is on right side of the screen as it the right side of display number 1. should on extended desktop www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 14: Setup Guide
This will open a ‘Display Preferences’ window on each of your attached displays allowing you to configure each display as required. It is possible to use the ‘Gather Windows’ button to bring all the ‘Display Preferences’ windows onto the main display. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 15: Setting The Display Resolutions
Rotation Options Each time the user rotates, any settings made to the mode, resolution, frequency or depth are re- membered the next time the user switches back to that angle of rotation. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 16: Setting The Position Of Displays
When in Mirror mode, additional displays will display what is being shown on the primary display. Checking the “Mirror Display” on the ‘Arrangement’ pane enables this feature. Display Preferences: Displays set to Mirror www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 17: Setting The Display To Extend
The ‘Menu Bar’ can be moved so that it is shown on an alternative display. Clicking the white menu bar and dragging it to the desired display will perform this action. Display Preferences: Moving Menu Bar www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 18: Configuring Displays From The Menu Bar
OpenGL, Quartz Extreme, Quartz Composer and other framework based on OpenGL will not be fully supported. Examples of such features are Keynote Presentations, iPhoto Slideshows and iMovie. The most up to date information about known issues and FAQs can be found at: www.displaylink.com/mac www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 19: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. - Page 20 Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
-
Page 21: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
