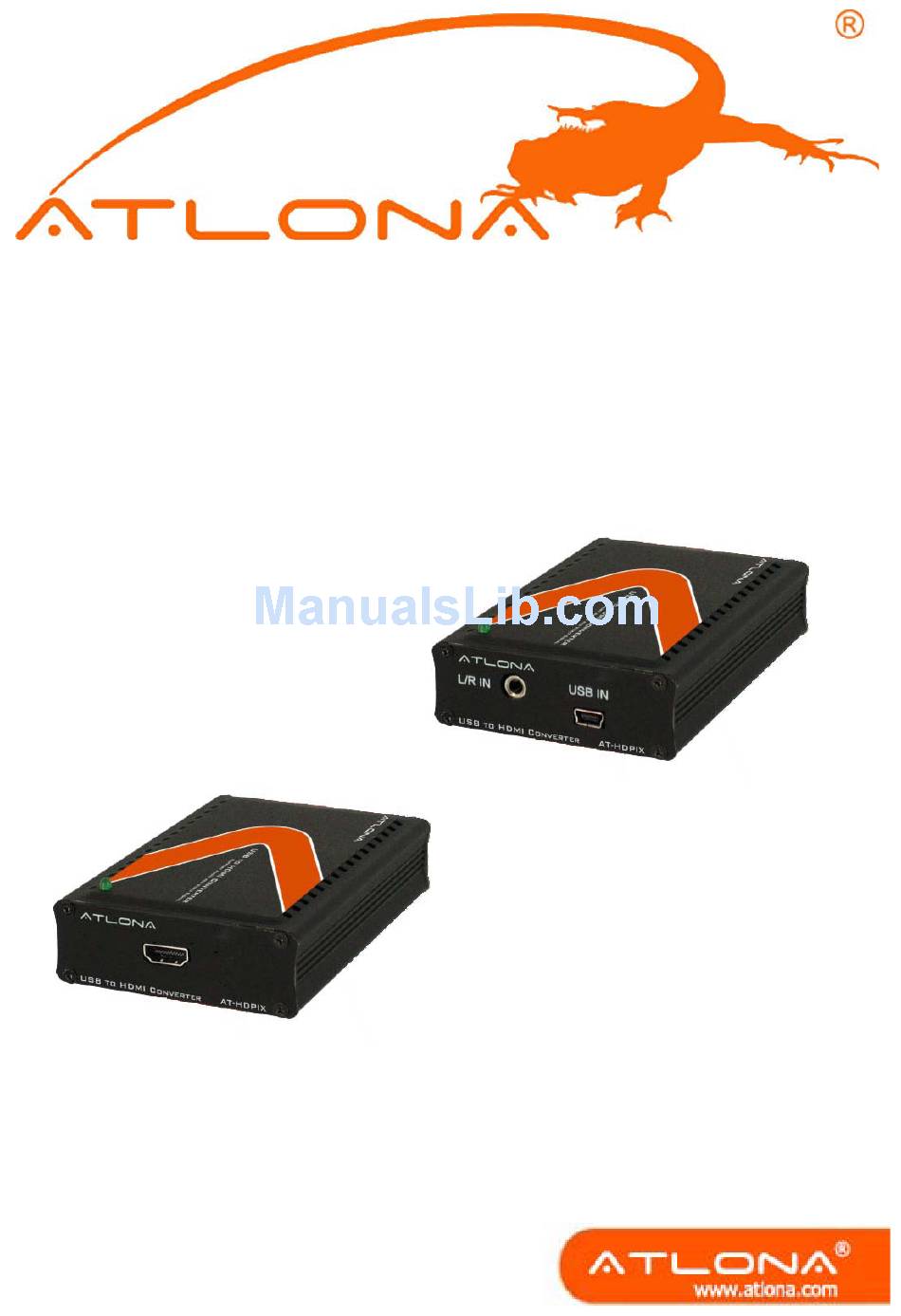

- Page 1 AT-HDPIX Users Manual...
-
Page 2: Table Of Contents
Contents 1. Installation............2 2. Introduction:............3 3. Features:............3 4. PC Requirements:...........3 4.1 Mac Requirements:........3 5.0 Updates:............4 5.1 Screen Resolution:........4 5.2 Color Quality:..........5 5.3 Screen Rotation:.........5 5.4 Extend To:..........6 5.5 Mirror:............7 5.6 Advanced:...........8 6. Troubleshooting:..........8 7. Safety Information..........9 8. Warranty............10 1. Installation: Insert CD into CD-ROM drive Run the SETUP.EXE file and select language to install... -
Page 3: Introduction
2. Introduction Atlona Technologies presents the all new USB to HDMI adaptor, the HDPiX. This new solution is designed to add a HDMI port to any computer (Mac or PC) and has limitless applications in both consumer and com- mercial environments. From digital signage to home theater, the all new HDPiX provides a simple solution for viewing content from a computer on any HDTV making it the perfect device for any consumer or com- mercial application. -
Page 4: Updates
5.0 Updates: From this menu the software can be updated online, or configured for automatic updates 5.1 Screen Resolution: Screen Resolution for extended display or mirrored display. To change the resolution, you have to be in extended mode. -
Page 5: Color Quality
5.2 Color Quality: Color Quality can be selected to 16 bit or 32 bit 5.3 Screen Rotation: Normal - screen is in normal position Rotated left - Rotates screen to the left Rotated right - Rotates screen to the right Upside-Down - Rotates screeb upside down... -
Page 6: Extend To
5.4 Extend To; When multiple displays are connected the image can be extended separately to different monitors. Extend To Right - Extends to the right display Extend To Left - Extends to the right display Extend to Above - Extends to above display Extend to Below - Extends to below display Extend: Extends the desktop to second display... -
Page 7: Mirror
5.5 Mirror: Mirros desktop to second display. When connecting to computer LCD the PC and the MAC display settings are unchanged. The max resolution that can be displayed on the mirror display is 1600x1200. If connecting to a LCD or Plasma TV the PC display settings need to be set at 1024x768 the MAC display settings are unchanged Off: Turns off software. -
Page 8: Advanced
5.6 Advanced: Windows Display Settings 6. Troubleshooting: Problem Solution Displaylink icon does not appear in the task bar Restart the computer and reconnect the usb cable manager Screens flash after install, wont stop. If continues flashing update graphic driver check the manufacture website for latest version. -
Page 9: Safety Information
It may also cause and swimming pools damage to your AT-HDPIX. * Opening the product will void * Use only accessories the warranty. recommended by ATLONA to avoid fire, shock or other hazards. -
Page 10: Warranty
8. WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
