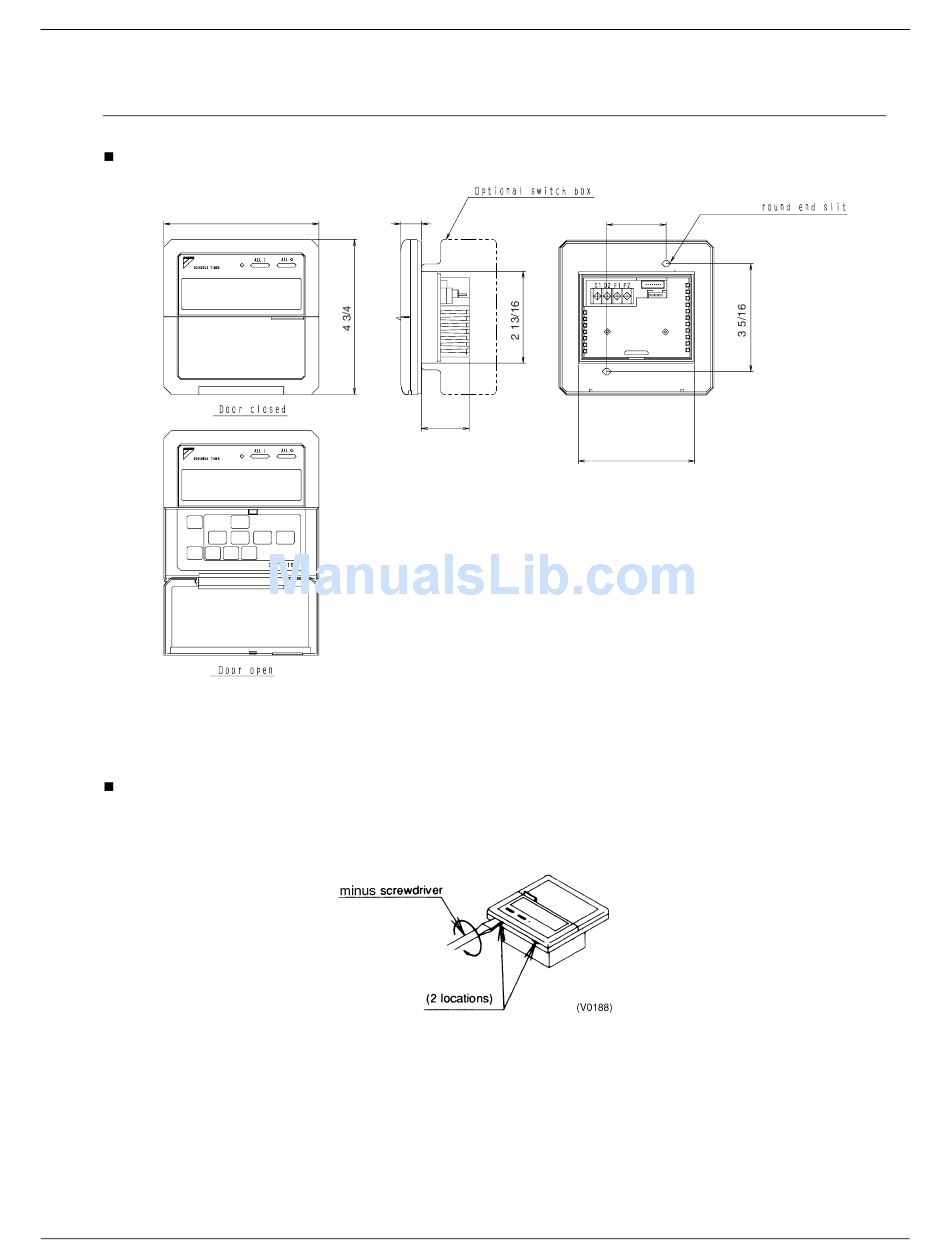

2.6.3 Dimension
Schedule Timer
DST301BA61
C:3D049544
2.6.4 Installation and Initial Setting
1. Remove the upper part of the remote controller.
Insert a minus screwdriver (2 locations) into the recess between the upper part and the lower part of the remote
controller and turn the screwdriver lightly.
The PC board is attached with the upper part of the remote controller. Do not damage electric parts with a screwdriver
or other tools.
Controls
5/8
4 3/4
1 7/16
Control Devices
2 3/16 × 1/4
1 3/4
3 1/2
Unit (in)
