Call Flows for 3G and 4G Mobile IP Users
4G DHCP Discover Call Flow

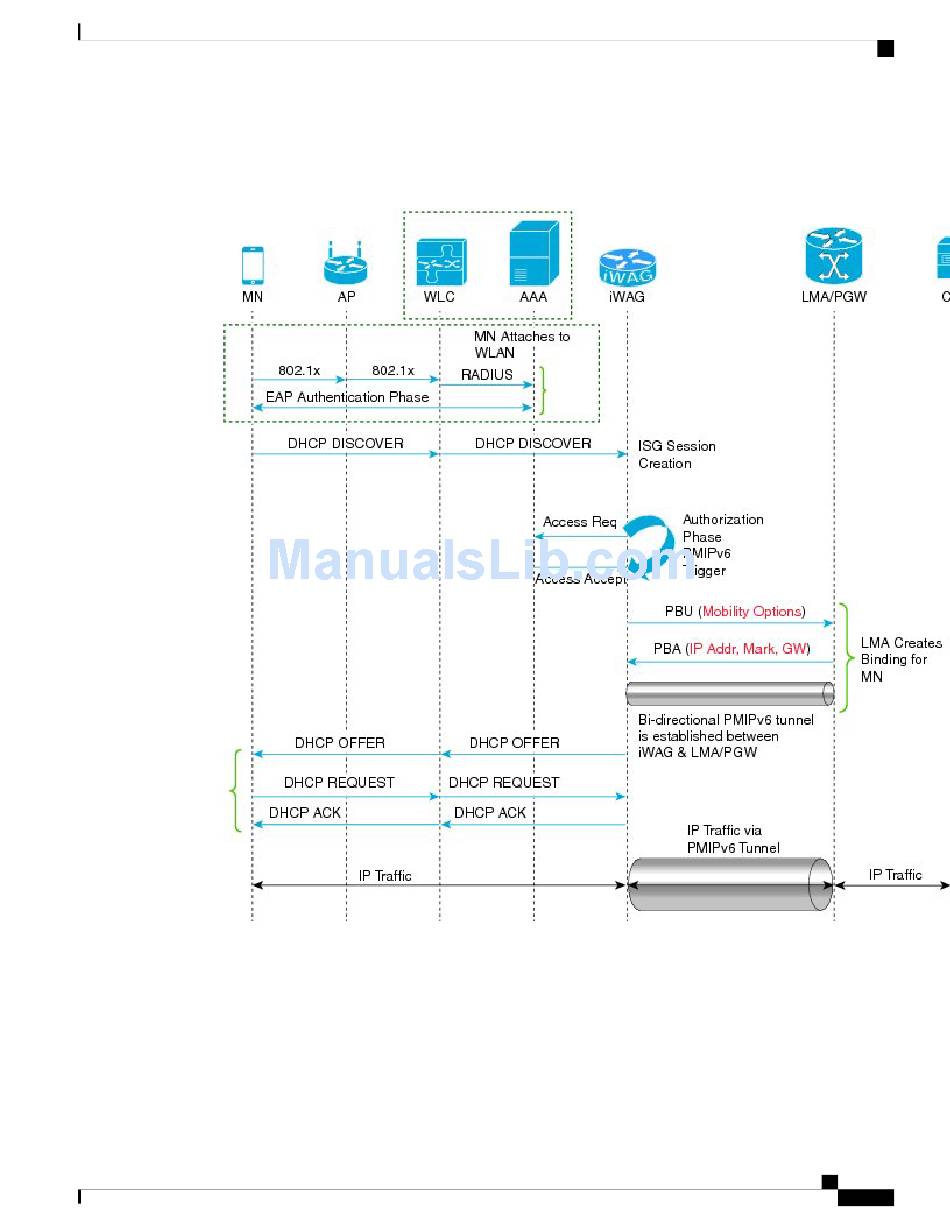

The figure below shows the 4G DHCP session initiator call flow:
Figure 14: 4G DHCP Discover Call Flow
The following are the call flow steps for the 4G DHCP session initiator configuration:
1 The client sends an EAP authentication request to the AP or WLC.
2 The WLC sends an Access Request message to AAA server.
3 On receiving Access Accept message from the AAA server, the WLC authenticates the client or mobile
node.
Intelligent Wireless Access Gateway Configuration Guide
OL-30226-03
109
