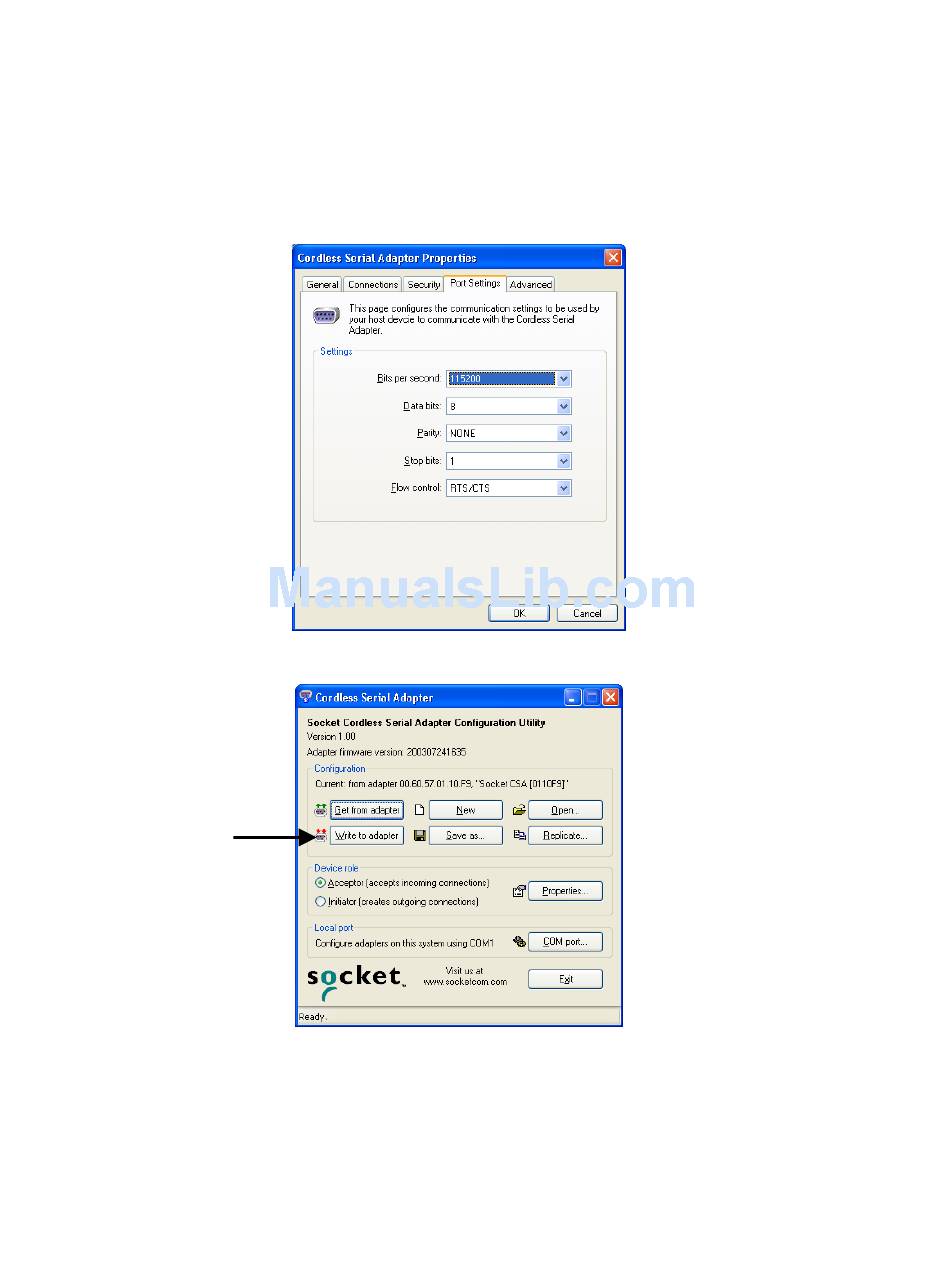

5. Click on the Port Settings tab. Enter the appropriate settings for your
devices and applications. Do not change any of the default settings in
the Advanced screen. Afterwards, click OK to exit the properties
screens.
6. Click Write to adapter to configure your CSA with the new settings.
Click
Write to
adapter.
7. Unplug the CSA from the computer. Now you are ready to attach the
CSA to the device.
Important!
Be sure to set
the baud rate
to match that
of the local
host serial
port!
You must
also enter the
same baud
rate in any
third party
applications
used with the
CSA!
Important!
If you do not click
Write to adapter,
the CSA will not
be configured with
the new settings!
