Socket RS-232 serial User Manual page 12

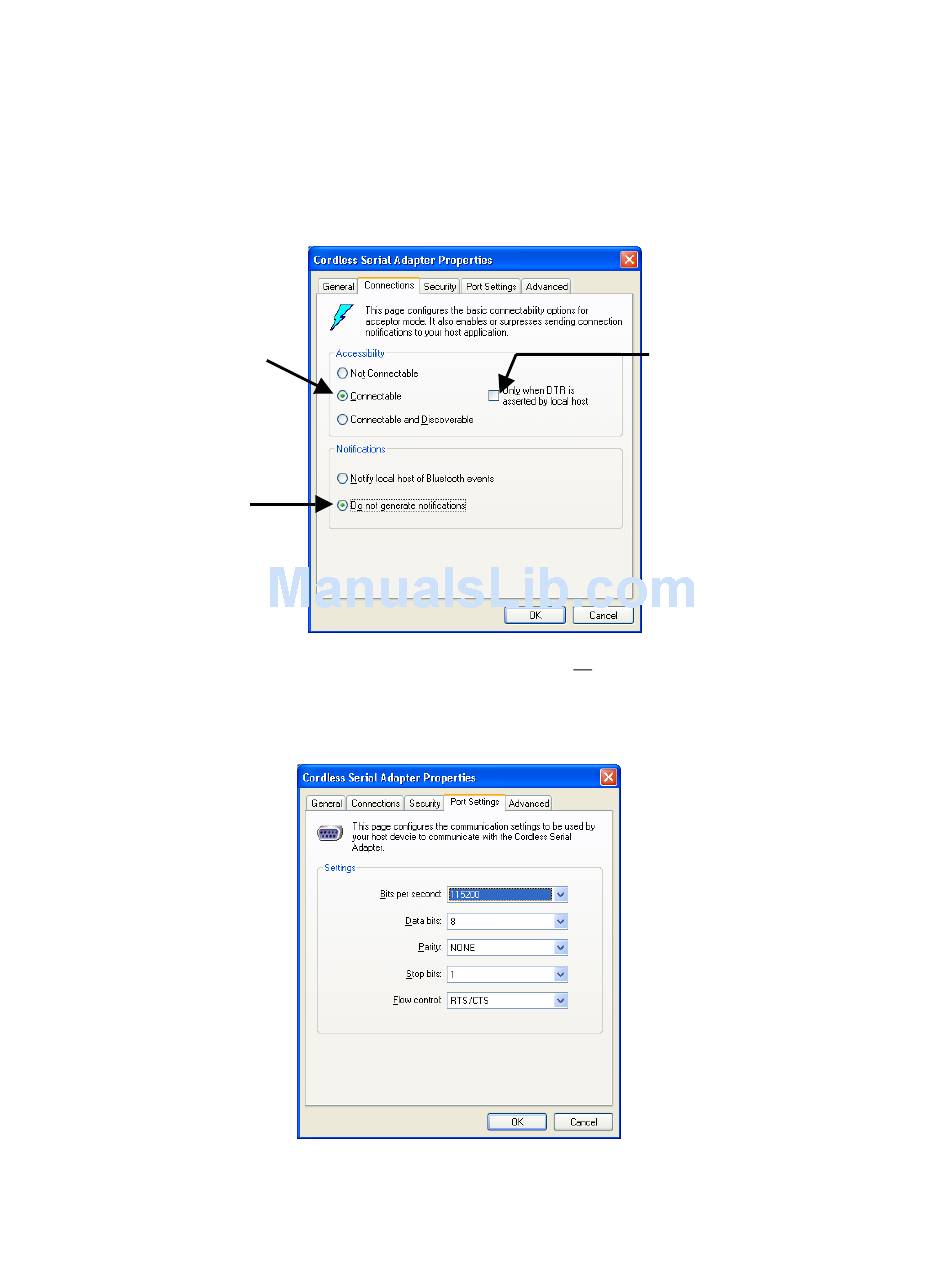

3. Click on the Connections tab. Enter the following settings:
• Accessibility: Select Connectable
Uncheck Only when DTR is asserted by local host
• Notifications: Select Do not generate notifications
Select
Connectable.
Select
Do not
generate
notifications.
4. Click on the Security tab. Make sure all boxes are unchecked.
5. Click on the Port Settings tab. Enter the appropriate settings for your
devices and applications. Do not change any default settings in the
Advanced screen. Afterwards, click OK to exit the properties screens.
12 | CHAPTER 2: SETUP
Uncheck.
Important!
Be sure to set
the baud rate
to match that
of the local
host serial
port!
You must
also enter the
same baud
rate in any
third party
applications
used with the
CSA!
