Socket 8550-00026 A User Manual

Usb bluetooth 2.0 adapter with bluetooth wireless technology

Advertisement

Quick Links

USB Bluetooth 2.0 Adapter
®
with Bluetooth
Wireless Technology
Model Number: 8550-00026 A
User's Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8550-00026 A and is the answer not in the manual?

Questions and answers

Summary of Contents for Socket 8550-00026 A

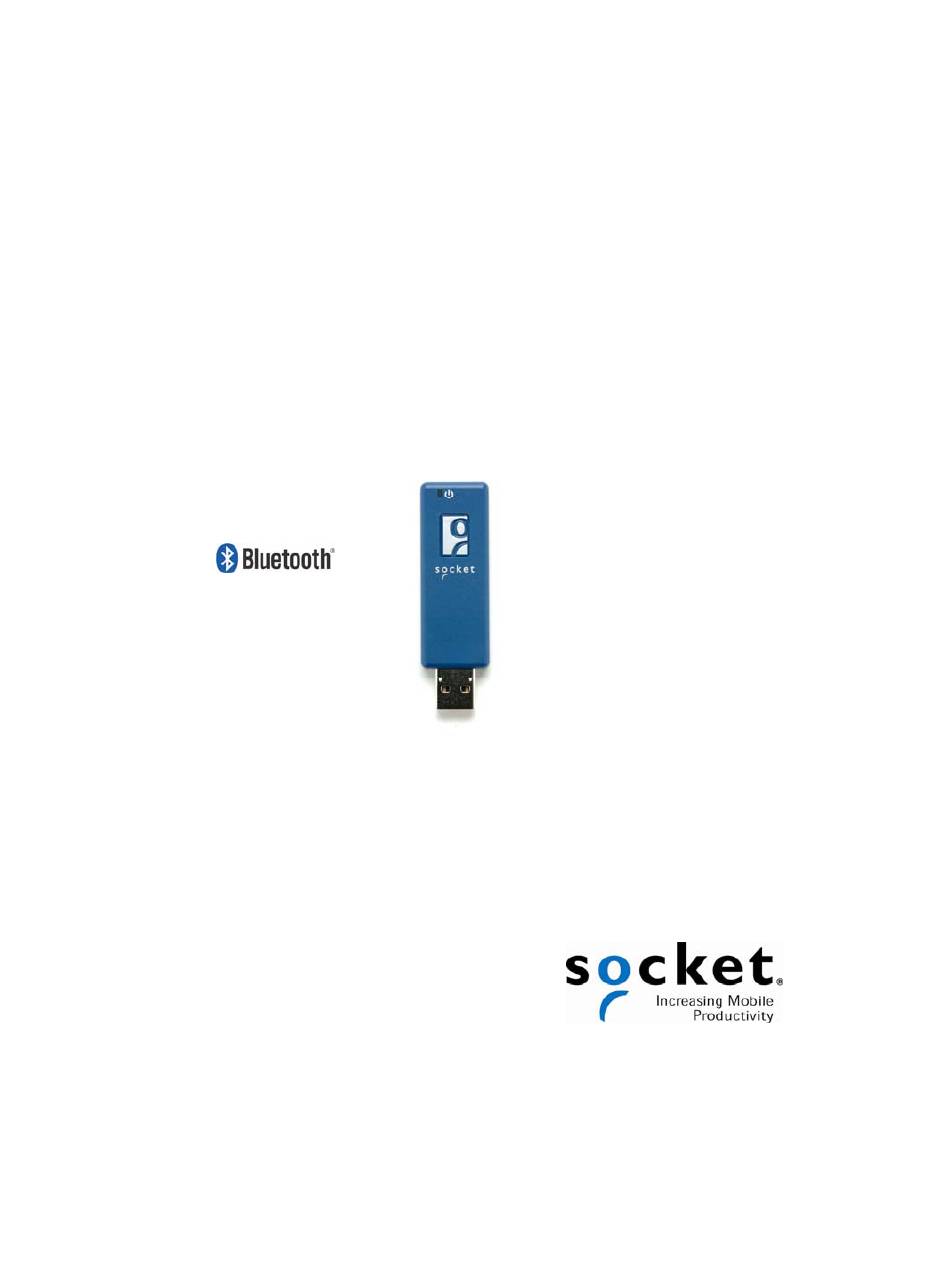

  • Page 1 USB Bluetooth 2.0 Adapter ® with Bluetooth Wireless Technology Model Number: 8550-00026 A User’s Guide...
  • Page 2: Copyright Notice

    Socket Communications, Inc. dba Socket Mobile, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by Socket Mobile, Inc. is under license. All other brand and product names are trademarks of their respective holders.
  • Page 3: Table Of Contents

    Table of Contents COPYRIGHT NOTICE 1 | INTRODUCTION 2 | INSTALLATION INSTRUCTIONS APPENDIX A SPECIFICATIONS APPENDIX B SAFETY AND USAGE TIPS APPENDIX C TECHNICAL SUPPORT LIMITED WARRANTY REGULATORY COMPLIANCE...
  • Page 4: Introduction

    USB-to-AC adapter to form a Bluetooth beacon. System Requirements • USB-to-AC adapter Product Registration Socket highly recommends that all customers register their Socket products. Registered users receive the following benefits: • Priority for technical support • Special offers for future products and product upgrades •...
  • Page 5: Installation Instructions

    2 | Installation Instructions STEP 1: Insert into USB-to-AC Adapter Insert the USB Bluetooth 2.0 Adapter into the USB port of a USB-to-AC Adapter as shown. STEP 2: Insert into Wall Outlet Insert the combined unit into an AC wall outlet. The LED will turn orange to indicate that the USB Adapter is on.
  • Page 6: Appendix A Specifications

    Appendix A Specifications Physical Characteristics: L x W x H: 2.7 x 0.79 x 0.34 inches (69 x 20 x 8.6 mm) Weight: 0.39 oz (11 g) Power Consumption: Requirement: 5 VDC Maximum: 200 mA (normal operation) Environmental Conditions: Operating Temperature: 0 to +45° C (ambient) Storage Temperature: -20 to +45°...
  • Page 7: Appendix B Safety And Usage Tips

    Treat your product with care. Keep in a clean and dust-free place. • Changes or modifications of this product, not expressly approved by Socket, may void the user’s authority to operate the equipment. APPENDIX B: SAFETY AND USAGE TIPS | 7...
  • Page 8 Antenna Care Do not place a metallic shield around your adapter since it will reduce the radio transmission efficiency. Efficient Use For optimum performance, please make sure that there is no metal surrounding your adapter. Driving RF energy may affect some electronic systems in motor vehicles, such as car stereo, safety equipment, etc.
  • Page 9: Appendix C Technical Support

    Appendix C Technical Support If you have trouble installing or using the Class 1 USB Adapter, Socket has two resources to help you: Socket Online Support Socket Online Support is an interactive technical support program that provides immediate service and is the best place to start for technical support.
  • Page 10: Limited Warranty

    Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center. The returned product must be accompanied by a return material authorization (RMA) number issued by Socket or by Socket's Authorized Service Center.
  • Page 11: Regulatory Compliance

    Regulatory Compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12 Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1).this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an...
  • Page 13 7/2006 Printed in U.S.A.
