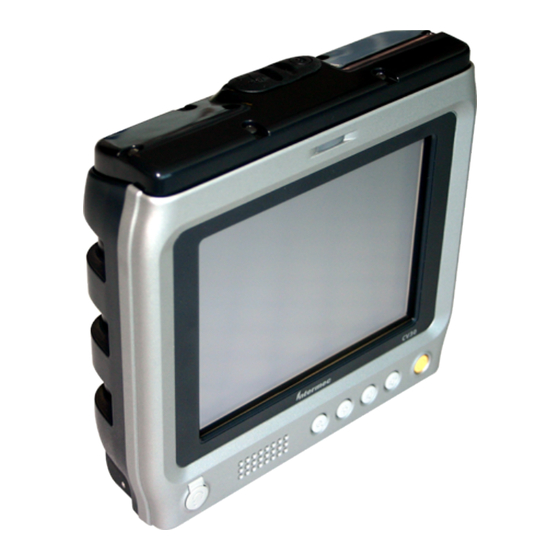

Fixed mount computer with windows ce
Hide thumbs Also See for CV30:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Instructions for Using
User's Manual
CV30 Fixed Mount
Computer With
Windows CE

Advertisement

Table of Contents
loading

Related Manuals for Intermec CV30

Summary of Contents for Intermec CV30

  • Page 1 User’s Manual CV30 Fixed Mount Computer With Windows CE...
  • Page 2 Intermec Technologies Corporation. Information and specifications contained in this document are subject to change without prior noticed and do not represent a commitment on the part of Intermec Technologies Corporation. © 2007 by Intermec Technologies Corporation. All rights reserved.

  • Page 3: Table Of Contents

    ....1 Introducing the CV30 Fixed Mount Computer ......2 Understanding the Features of the CV30 .
  • Page 4 Configuring Security on the CV30 ........
  • Page 5 Developing Applications for the CV30 ........
  • Page 6 Accessories for the CV30 ........

  • Page 7: Before You Begin

    Global Services and Support Warranty Information To understand the warranty for your Intermec product, visit the Intermec web site at www.intermec.com and click Service & Support > Warranty.

  • Page 8: Telephone Support

    • Inquire about repair billing or other service invoicing questions. Outside the U.S.A. and Canada, contact your local Intermec representative. To search for your local representative, from the Intermec web site, click Contact. viii CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 9: Who Should Read This Manual

    This manual provides you with information about the features of the CV30, and how to install, configure, operate, maintain, and troubleshoot it. Before you work with the CV30, you should be familiar with your network and general networking terms, such as IP address. Related Documents The Intermec web site at www.intermec.com...
  • Page 10 Before You Begin There may be other U.S. and foreign patents pending. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 11: Using The Cv30 Fixed Mount Computer

    Using the CV30 Fixed Mount Computer Use this chapter to familiarize yourself with the CV30 Fixed Mount Computer. In this chapter, you will find these sections: • Introducing the CV30 Fixed Mount Computer • Attaching the CV30 to Power • Understanding the Status Lights •...

  • Page 12: Introducing The Cv30 Fixed Mount Computer

    Chapter 1 — Using the CV30 Fixed Mount Computer Introducing the CV30 Fixed Mount Computer The Intermec CV30 is a rugged fixed mount computer designed for real-time data collection applications in warehousing, distribution, work-in-process, time and attendance, and stationary applications. The CV30 is built on the Microsoft®...
  • Page 13 Chapter 1 — Using the CV30 Fixed Mount Computer • 128 MB RAM, 128 MB Disk on Chip Flash memory • 520 MHz Intel XScale PXA270 processor These options are available for the CV30: • TE 2000 terminal emulation application, including 3270, 5250, and VT-ANSI •...
  • Page 14 Connects the CV30 to 10BaseT/100BaseT full duplex standard Ethernet interfaces. Use this manual to understand how to use the features and options available on the CV30. For a complete list of accessories available for the CV30, see “Accessories for the CV30” on page CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 15: Using The Power Button

    CV30 back on, the computer resumes where it was when you turned it off. You can configure the CV30 to turn off if not used for a specified period of time by going to Start > Settings > Control Panel >...

  • Page 16: Adjusting The Volume

    “Connecting a Scanner” on page Using the Touch Screen The CV30 has a 6.4 inch color VGA touch screen display with a resolution of 640 x 480 pixels. The touch screen has a built-in heater to reduce condensation on the external surface of the display when moving between sub-freezing temperatures and normal temperatures.

  • Page 17: Navigating The Touch Screen

    Chapter 1 — Using the CV30 Fixed Mount Computer CV30 Start Screen Navigating the Touch Screen You can use the stylus accessory to navigate the touch screen. Touch Screen Navigation Action Description Touch the screen once with the stylus or finger to select options, open or close applications, or launch menus.

  • Page 18: Attaching The Cv30 To Power

    CV30 for it to operate. Use the AC power supply and power cord when you are using the CV30 with a desk mounting kit or a wall mounting kit. The AC power supply does not provide power for the internal touch screen heater.

  • Page 19: Understanding The Backup Power System

    The CV30 contains a backup battery that has enough capacity to support the suspend state for at least 72 hours. When power is restored to the CV30, it resumes the state it was in when the power was removed. An internal charger automatically charges the backup battery within 4 hours when external power is supplied.

  • Page 20: Using The Power Button To Reset The Cv30

    Chapter 1 — Using the CV30 Fixed Mount Computer • Using the Reset button If you try both of the following options to reset the CV30 and you cannot restore system operation, you may need to perform a clean boot. For more information, see “Troubleshooting the...

  • Page 21: Understanding The Status Lights

    Chapter 1 — Using the CV30 Fixed Mount Computer Understanding the Status Lights The status lights on the CV30 turn on to indicate the status of the network connection, a successful decode of a bar code, or a user-defined function.

  • Page 22: Installing An External Antenna

    Chapter 1 — Using the CV30 Fixed Mount Computer The Ready-to-Work indicator has three states: off, blinking, and on. Use this table to understand the different states of the light. Ready-to-Work Light States Light State What It Means The TE 2000 application has not loaded successfully, or you are not running a Ready-to- Work application.

  • Page 23: Installing An External Keyboard

    Chapter 1 — Using the CV30 Fixed Mount Computer Antenna Attaching an External Antenna Installing an External Keyboard There are two types of keyboards you can install and use with the CV30: • The compact keyboard (P/N VE011-2002) • Rugged QWERTY large external keyboards. For a complete list of available keyboards, see “Accessories for the CV30”...

  • Page 24: Connecting A Scanner

    For information on installing the compact keyboard, see the instructions that ship with it. Connecting a Scanner You can attach a tethered scanner to one of the serial (COM3 or COM1) connectors on the CV30 if you order the appropriate RS-232 cable. Supported Scanners and Cables Scanner...
  • Page 25 CV30. 2 Attach the other end of the cable to the tethered scanner. 3 On the CV30, go to Start > Settings > Control Panel> Intermec Settings. For help using Intermec Settings, see “Configuring the CV30 Using Intermec Settings” on page 4 Go to Data Collection >...

  • Page 26: Increasing Memory Storage

    CV30 currently supports SD cards that hold up to 2 GB of information. The SD card slot is located on the top of the CV30 under the top cover. You must remove the top cover to access the SD card slot.
  • Page 27 Chapter 1 — Using the CV30 Fixed Mount Computer 3 Disconnect the antenna cable from the Remote Antenna connector. 4 Gently insert the SD card into the CV30. Screw (6 places) cover Antenna cable SD card 5 Push the SD card into the slot until it latches in place.
  • Page 28 Chapter 1 — Using the CV30 Fixed Mount Computer CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 29: Understanding Windows Ce

    Understanding Windows CE This chapter introduces Microsoft Windows CE. In this chapter you will find these sections: • Understanding Windows CE • Using Microsoft ActiveSync • Using Internet Explorer Mobile CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 30: Understanding Windows Ce

    Learning to use the CV30 is easy. This section describes the basic concepts of using and customizing your CV30 Computer. Using the Desktop Screen When you turn on your CV30 for the first time each day, you see the Desktop Screen. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 31: Accessing Programs

    To access programs • Tap Start > Programs and then the program name. The following is a partial list of programs that are on your CV30, in the order they appear in the Start menu. • Internet Explorer • Microsoft WordPad •...

  • Page 32: Entering Information

    Understanding the Ways to Enter Information Enter Information By: Description Typing Enter typed text into the CV30 by tapping keys on the onscreen keyboard or by using the handwriting recognition software. Writing Use the stylus to write directly on the screen.

  • Page 33: Using Transcriber

    For help using Transcriber, tap the question mark in the lower right-hand corner of the Input Panel. Finding and Organizing Information You can use Windows Explorer to find files on your CV30 and organize these files into folders. To open Windows Explorer •...

  • Page 34: Customizing The Cv30

    All other programs and files added to the CV30 after factory installation are stored in Random Access Memory (RAM). You can install any program created for the CV30, as long as the computer has enough memory available. Using Microsoft ActiveSync Use Microsoft ActiveSync to synchronize the information on your desktop with the information on the CV30.

  • Page 35: Using Internet Explorer

    Using Internet Explorer You can use Internet Explorer to run web-based applications, and view pages downloaded to the CV30. You can also connect to the internet through an ISP or a network connection. You can make connections using a modem, a wireless network, or Ethernet.
  • Page 36 Chapter 2 — Understanding Windows CE Default Internet Explorer Web Page CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 37: Configuring The Cv30

    Configuring the CV30 Use this chapter to understand how to configure the CV30 to communicate in your network. In this chapter, you will find these sections: • Configuring the CV30 Operating Parameters • Setting Up Ethernet Communications • Setting Up Bluetooth Communications •...

  • Page 38: Configuring The Cv30 Operating Parameters

    Settings that allows you to set all of the operating parameters in one place. Configuring the CV30 Using Intermec Settings Use Intermec Settings to configure the CV30 and to view system information. You access Intermec Settings from the Control Panel.

  • Page 39: Remotely Configuring The Cv30 Using Smartsystems Foundation

    SmartSystems enabled. The SmartSystems server has a console that displays all of the CV30s in your network. In the console, you can right-click a CV30 and a menu appears. To configure the CV30, choose Intermec Settings from the menu.

  • Page 40: Setting Up Bluetooth Communications

    CV30: • Primary and secondary DNS servers • Primary and secondary WINS servers 4 Make sure your CV30 is talking to the network and that the network can see your CV30. Setting Up Bluetooth Communications You can send information to a Bluetooth device wirelessly using the standard Bluetooth radio in the CV30.

  • Page 41: Configuring The Cv30 To Communicate With A Wireless Scanner

    Bluetooth wireless scanners. The CV30 ships with a Bluetooth association label attached to the left side. Scan the association label to quickly connect the CV30 to the Bluetooth wireless scanner. If for some reason the Bluetooth association label does not work, you can follow the procedure for configuring the CV30 from Intermec Settings at the end of this section.
  • Page 42 To connect to the wireless scanner using the association label 1 Using your wireless scanner, scan the Bluetooth association label on the side of the CV30. 2 The CV30 prompts you to enter the passcode for your scanner. The default passcode for Intermec Bluetooth scanners is 0000 3 Tap Finish.

  • Page 43: Configuring Bluetooth Communications For Wireless Printing

    7 In the Passcode text box, enter the passcode for your scanner. The default passcode for Intermec Bluetooth scanners is 0000 8 Tap Next. The CV30 connects to the scanner and displays the remote device information. 9 Tap Finish. 10 Refresh Intermec Settings to see the Bluetooth scanner under Data Collection.

  • Page 44: Creating An Application That Lets You Print Wirelessly

    Chapter 3 — Configuring the CV30 Creating an Application That Lets You Print Wirelessly The CV30 does not ship with an application that lets you print wirelessly. You must create an application that opens the wireless printing COM port on the CV30. For help, see the Bluetooth Resource Kit.
  • Page 45 If your preferred printer does not appear, make sure the printer is turned on and discovery is enabled, and then repeat Steps 1 through 3. 4 Tap Print Test Page. The printer prints out the test page. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 46 3 Type the address of the printer in the Enter Device Address text box and then tap OK. The keyword -unknown- appears in the Device Name field in the Current Wireless Printer box. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 47: Connecting To A Bluetooth Audio Device

    Chapter 3 — Configuring the CV30 The name of the printer is not sent to the CV30 when you manually enter the printer address. 4 Tap Print Test Page. The printer prints out the test page. To choose the printer from a list of previously discovered printers 1 Make sure you have already performed a Bluetooth device discovery.

  • Page 48: Setting Up 802.11 Radio Communications

    3 Configure security. For help, see “Configuring Security on the CV30” on page 4 Make sure that the CV30 is talking to the network and that the network can see the CV30. The easiest way to configure the network parameters on the CV30 is to use Intermec Settings.

  • Page 49: Configuring The Network Parameters For A Udp Plus Network

    3 Configure security. For help, see “Configuring Security on the CV30” in the next section. 4 Make sure the CV30 is talking to the network and that the network can see the CV30. Checking the Status of Your Wireless Connection After you configure your wireless settings, you can use iConnect to check the status of your connection.

  • Page 50: Configuring Security On The Cv30

    Chapter 3 — Configuring the CV30 Configuring Security on the CV30 The CV30 provides three types of security for your wireless network: • Wi-Fi Protected Access (WPA) • Wi-Fi Protected Access 2 (WPA2) • WEP This section explains how to configure security on your wireless CV30.

  • Page 51: Using Wpa Security

    • an access point with an 802.11 b/g radio that supports WPA. • a CV30 with the 802.11b/g radio and the 802.1x/WPA security option. The CV30 also supports Wi-Fi Protected Access 2 (WPA2) if you are using Funk security. WPA2 uses an Advanced Encryption Standard (AES) for data encryption.

  • Page 52: Using Static Wep Security

    PSK is a good solution for small offices or home offices that do not want to use an authentication server. Using Static WEP Security The CV30 uses the Wired Equivalent Privacy (WEP) protocol to add security to your wireless network based on the 802.11 standard.

  • Page 53: Using Leap Security

    LEAP security is not supported with Microsoft security. Choosing Between Funk and Microsoft Security The CV30 provides both Funk and Microsoft security choices. Funk security is the default setting. Use the following sections to set security using either Funk or Microsoft as your security choice.

  • Page 54: Configuring Funk Security Using Intermec Settings

    Profile_1. To select a profile for Funk security 1 Select Start > Settings > Control Panel > Intermec Settings. 2 Select Communications > 802.11 Radio > Funk Security. 3 Select Active Profile, choose a profile from the list, and save your settings.
  • Page 55 7 Save your settings. Configuring WPA Security With Funk Security Use these procedures to set WPA-802.1x, WPA2-802.1x, WPA- PSK, or WPA2-PSK security on your CV30 with Funk security. To configure WPA-802.1x or WPA2-802.1x with Funk security 1 Open Intermec Settings.
  • Page 56 Note: You must have the date on the CV30 set correctly when you enable Validate Server Certificate. If you choose TLS: a Load a user and root certificate on your CV30. For help, “Loading a Certificate” on page b For Validate Server Certificate, choose Yes.
  • Page 57 4 For Association, choose Open. 5 For Encryption, choose WEP. 6 For Authentication, choose TTLS, PEAP, or TLS. If you choose TTLS or PEAP: a Select User name and type your user name. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 58 Select User Password and type a user password. d For Validate Server Certificate, choose Enabled. If you choose TLS: a Load a user and root certificate on your CV30. For help, “Loading a Certificate” on page b For Validate Server Certificate, choose Yes.

  • Page 59: Configuring Funk Security Using The Profile Wizard

    9 Save your settings. Configuring Funk Security Using the Profile Wizard You can start 802.11 b/g communications on the CV30 using the Profile Wizard. A profile contains all the information necessary to authenticate you to the network, such as login name, password or certificate, and protocols by which the CV30 is authenticated.
  • Page 60 Select Ad-Hoc to set up a private network with one or more participants. 6 Enter the SSID (Network Name). 7 Tap OK. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 61 7 Tap OK. Configuring WPA-PSK Security With Profile Wizard 1 In the Profile Wizard, select the Security page. 2 For 8021x Security, choose None. 3 For Association, choose WPA. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 62 Windows domains and directory services. It is comparable to EAP-TTLS, though not as flexible. To configure PEAP security 1 In the Profile Wizard, select the Security page. 2 For 8021x Security, choose PEAP. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 63 To configure TLS security 1 In the Profile Wizard, select the Security page. 2 For 8021x Security, choose TLS. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 64 TLS. 10 Tap Root CA, select a root certificate, and then tap OK. 11 Enter the Common Names of trusted servers. 12 Tap OK. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 65 7 Select Prompt for password to have the user enter this password each time to access the protocol, or select Use following password to use the protocol without entering a password each time you use the CV30. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 66 16 Tap OK. Configuring LEAP Security With Profile Wizard LEAP is the Cisco Lightweight version of EAP. To configure LEAP security 1 In the Profile Wizard, select the Security page. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 67 7 Select Prompt for password to have the user enter this password each time to access the protocol, or select Use following password to use the protocol without entering a password each time you use the CV30. 8 Tap OK. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 68: Configuring Eap-Fast With Profile Wizard

    CV30. 8 Tap Additional Settings to set options for PAC management and assign an anonymous EAP-FAST name. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 69: Configuring Microsoft Security

    9 Tap PAC Manager to view the PAC files currently installed on the CV30. Tap ok to return to the Additional Settings screen. 10 If you already have a PAC on the CV30, clear Allow Automatic PAC provisioning to avoid receiving more PACs from the server.
  • Page 70 3 From the Security Choice list, select Microsoft Security and save your settings. An alert box appears telling you that you must save your settings and warm boot the CV30 for the new security choice to take effect. 4 Tap Yes. The CV30 resets and starts with Microsoft Security as the Security Choice.
  • Page 71 To change the network key, clear The key is provided automatically check box, enter the new Network key, and then select the appropriate Key index. Follow these steps to enable WPA authentication: a Set Authentication to WPA. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 72: Loading A Certificate

    • If you have multiple certificates to install, you can use the Import Root Certificates and Import User Certificates functions. Note: For certificates to be valid, the CV30 must be set to the correct date and time. After cold booting the CV30, you may need to correct the date and time.
  • Page 73 Chapter 3 — Configuring the CV30 To load certificates if you are using Active Directory 1 Configure the network and radio settings for the CV30 to communicate with your certificate authority or establish an ActiveSync connection with the CA. 2 From Intermec Settings, select Communications > 802.11 Radio >...
  • Page 74 Chapter 3 — Configuring the CV30 9 Tap OK to close the Success message box. 10 Configure your CV30 for WEP, WPA, or WPA2 security. To load multiple certificates 1 Create the \Temp\Root and the \Temp\User folders on the CV30.

  • Page 75: Disabling Security

    Chapter 3 — Configuring the CV30 Disabling Security If you choose not to use security with your wireless network, you can disable it on the CV30. Intermec recommends that you always set security in your network. To disable security 1 Open Intermec Settings.
  • Page 76 Chapter 3 — Configuring the CV30 CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 77: Developing And Installing Applications

    Applications Use this chapter to understand the guidelines for developing applications and converting existing Trakker Antares applications for use on the CV30. You will also find information on installing applications and automatically launching them. This chapter contains these sections: • Developing Applications for the CV30 •...

  • Page 78: Developing Applications For The Cv30

    Developing a New Application Use the Intermec resource kits to develop new applications to run on the CV30. The Intermec resource kits are a library of C++ and .NET components grouped by functionality that you can use to create applications for the CV30. The resource kits are part of the Intermec Developer Library (IDL), and can be downloaded from the Intermec web site at www.intermec.com/idl.

  • Page 79: Developing A Web-Based Application

    The CV30 does not support all Trakker Antares functions. You may need to rewrite parts of your application when converting it for use on the CV30. See the resource kit for a list of functions that are not supported. You need these hardware and software components to use the resource kit: •...

  • Page 80: Installing Applications On The Cv30

    Chapter 4 — Developing and Installing Applications Installing Applications on the CV30 There are several ways you can install applications on the CV30: • You can package your application as a cabinet (.cab) file. • If you have a simple application, you may only need to deliver the .exe file.

  • Page 81: Installing Applications Using Smartsystems Server

    PC and is up and running. To install an application on the CV30 using ActiveSync 1 Connect the CV30 to a PC using a USB cable. You may have to disconnect and then connect the cable to “wake” the connection.

  • Page 82: Installing Applications Using Your Sd Card

    9 Tap the .cab files to install them. Installing Applications Using Your SD Card If you have an SD card for your CV30, this is the best place for you to install applications. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 83: Installing Applications Using Wavelink Avalanche

    Chapter 4 — Developing and Installing Applications To install applications using the SD card 1 If you are using an SD card reader, remove the SD card from the CV30 and place it in the reader. For help, see “Increasing Memory Storage” on page 2 Copy your application file to the SD card.

  • Page 84: Freeing Up Virtual Memory For Applications

    Intermec service representatives. Do not run InstallSelect while using any other applications. InstallSelect manages the installation of value-added software features of the CV30. Removing software features may result in loss of CV30 functionality or the ability to manage device settings. See “Understanding the InstallSelect Software...
  • Page 85 6 Click Apply to initiate the clean boot and install only the files that are selected. 7 Click Yes to continue with the clean boot. The CV30 performs a clean boot and restarts with all of the checked components installed.
  • Page 86 SmartSystems or Intermec Settings locally on the device. Intermec DHCP Client Provides the Intermec DHCP client application. Bluetooth Provides the Intermec Bluetooth application support. Avalanche Enabler Enables the client to the Wavelink Device Management solution. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 87: Launching An Application Automatically

    AutoRun handles quoted file names for the first parameter, which allows you to specify path names or file names that contain white spaces. AutoRun only supports one set of quotes per command. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 88 Chapter 4 — Developing and Installing Applications CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 89: Troubleshooting And Maintaining The Cv30

    Troubleshooting and Maintaining the CV30 If you encounter any problems while using the CV30, look in this chapter to find a possible solution. You will also find information on routine maintenance. This chapter contains these sections: • Calling Product Support •...

  • Page 90: Calling Product Support

    • Start> Programs > Internet Explorer An Intermec page opens and displays the OS version loaded on the CV30. To find your configuration number • Look at the label on the back of the CV30. CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 91: Troubleshooting The Cv30

    Try these possible solutions in order: up and you cannot enter data. • Press Power to turn off the CV30 and then turn it back on. • Press and hold the Power button for 5 seconds to reset the CV30.
  • Page 92 You receive a message saying “The The date and time on the CV30 are not saved through a server certificate has expired or clean boot. You need to correctly set the time and date and your system date is incorrect”...
  • Page 93 • The CV30 is not connected to the access point. Make sure the access point is turned on and operating. You may also be using the CV30 out of range of an access point. Try moving closer to an access point to reestablish communications.
  • Page 94 • Try setting the Scanner Model command to the specific input appear to work well or read device you have attached. bar code labels very • Check the bar code symbologies you have enabled on the CV30. quickly. Enable only the symbologies being used. You scan a configuration...
  • Page 95 Your 1551E or 1553 The 1551E or 1553 scanner must be using the correct RS-232 scanner was working fine, settings to allow configuration in the Intermec Settings applet. Try but after changing the port disabling, then enabling the scanner port state.

  • Page 96: Upgrading The Cv30

    You need to download the latest upgrade files from the Intermec web site to your desktop computer. To download the upgrade files 1 Start your web browser and go to the Intermec web site at www.intermec.com. 2 Go to Service & Support > Downloads.

  • Page 97: Upgrading The Cv30 Using An Sd Card

    5 Copy the contents of the <version> folder to the SD card. 6 If you are using an SD card reader, insert the SD card into the CV30. Note: Make sure the CV30 has completely loaded all of the upgrade files before you remove the SD card or reset the computer.

  • Page 98: Upgrading Your Cv30 Using Smartsystems Server

    5 Copy the contents of the <version> folder to the SD card. 6 If you are using an SD card reader, insert the SD card into the CV30. Note: Make sure the CV30 has completely loaded all of the upgrade files before you remove the SD card or reset the computer.

  • Page 99: Troubleshooting The Boot Process (Clean Booting)

    CV30 reboots and reconnects to the system. Troubleshooting the Boot Process (Clean Booting) When you clean boot the CV30, it loads only those files and programs that are absolutely required by the operating system. Use the clean boot to troubleshoot the computer by getting it up...
  • Page 100 Flash File Store. To clean boot the CV30 1 Press the Power button to turn off the CV30 and hold. 2 Using a small pointed device (such as the end of the stylus) or your finger, press the Reset switch on the top of the CV30.

  • Page 101: Cleaning The Screen

    Chapter 5 — Troubleshooting and Maintaining the CV30 Cleaning the Screen To keep the CV30 in good working order, you may need to clean the screen whenever necessary depending on the environment in which you use the computer. To clean the CV30, use a solution of ammonia and water.
  • Page 102 Chapter 5 — Troubleshooting and Maintaining the CV30 CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 103: Specifications

    Specifications CV30 Fixed Mount Computer With Windows CE User’s Manual...

  • Page 104: Physical And Environmental Specifications

    You can use these accessories (sold and ordered separately) with the CV30. To order accessories, contact your local Intermec sales representative. 2455/CV30 Adapter Plate (P/N VE011-2011) Use this adapter plate to mount the CV30 in an existing 2455 installation. CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 105 Use this cable to connect two USB devices to the CV30. CV30 Developer Cable Assembly (P/N VE011-2018) Use this cable to connect the CV30 to the USB port on your desktop PC. This cable is to use for ActiveSync connections from your desktop PC to the CV30.
  • Page 106 The slot reader comes with a mounting plate to attach it to the CV30. Universal Power Supply (P/N 851-082-004) Use the universal power supply to supply AC power to the CV30. You need to purchase a country-specific power cord separately. The universal power supply does not provide power for the internal touch screen heater.

  • Page 107: Index

    Index CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 108 ActiveSync, discoverable setting, defined, using Avalanche, IBTsetting, defined, using SmartSystems Console, InstallSelect component, using the SD card, power setting defined, launching automatically, radio setting, defined, ASCII scanner, configuring, resource kit, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 109 WPA-PSK security storing files to rebuild system, with Microsoft security, the CV30, with Profile Wizard, cleaning the screen, connectable setting for Bluetooth, cold booting with the Reset button, COM1 connector CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 110 Bluetooth, DiskOnChip Good read light description, description, storing applications, illustrated, download, upgrade files, drag-and-drop, using SmartSystems Console, headphone connector, illustrated, dual USB cable assembly, headset, connecting to a Bluetooth, height dimension, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 111 CV30, wall accessory described, using to connect a tethered scanner, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 112 PSK mode, defined, power AC supply, attaching the CV30, QWERTY external keyboard accessories, DC/DC options, described, Power button QWERTY keyboard illustrated, 3, illustrated, pressing to reset, installing, troubleshooting, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 113 SmartSystems Foundation 802.1x overview, described, 29, choice, Funk or Microsoft, defined, downloading, 29, configuring SmartSystems Platform Bundle (SSPB) 802.1x upgrading with SD card, with Funk security upgrading, overview, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 114 ActiveSync, tethered stylus accessory, described, Internet Explorer, third-party certificate authority, using to pop-up menus, issue certificates, taskbar, TLS security Transcriber, configuring, Windows CE, overview, Windows Explorer, top cover, removing, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 115 Microsoft security, understanding, configuring with Funk security, Windows Explorer, using, configuring with Profile Wizard, wireless communications writing on screen, checking status, configuring, troubleshooting, Zoom button wireless printing illustrated, applet using, defined, CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 116 Index CV30 Fixed Mount Computer With Windows CE User’s Manual...
  • Page 118 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com CV30 Fixed Mount Computer With Windows CE User’s Manual *935-012-001* P/N 935-012-001...

Table of Contents
