Chapter 1 — Using the CN4

Understanding the Screen Icons

Aligning the Touch Screen

20
The screen icons on the Status bar and Command bar indicate battery
charge levels, network connections, and so on. Some standard
Microsoft icons are included in this table.

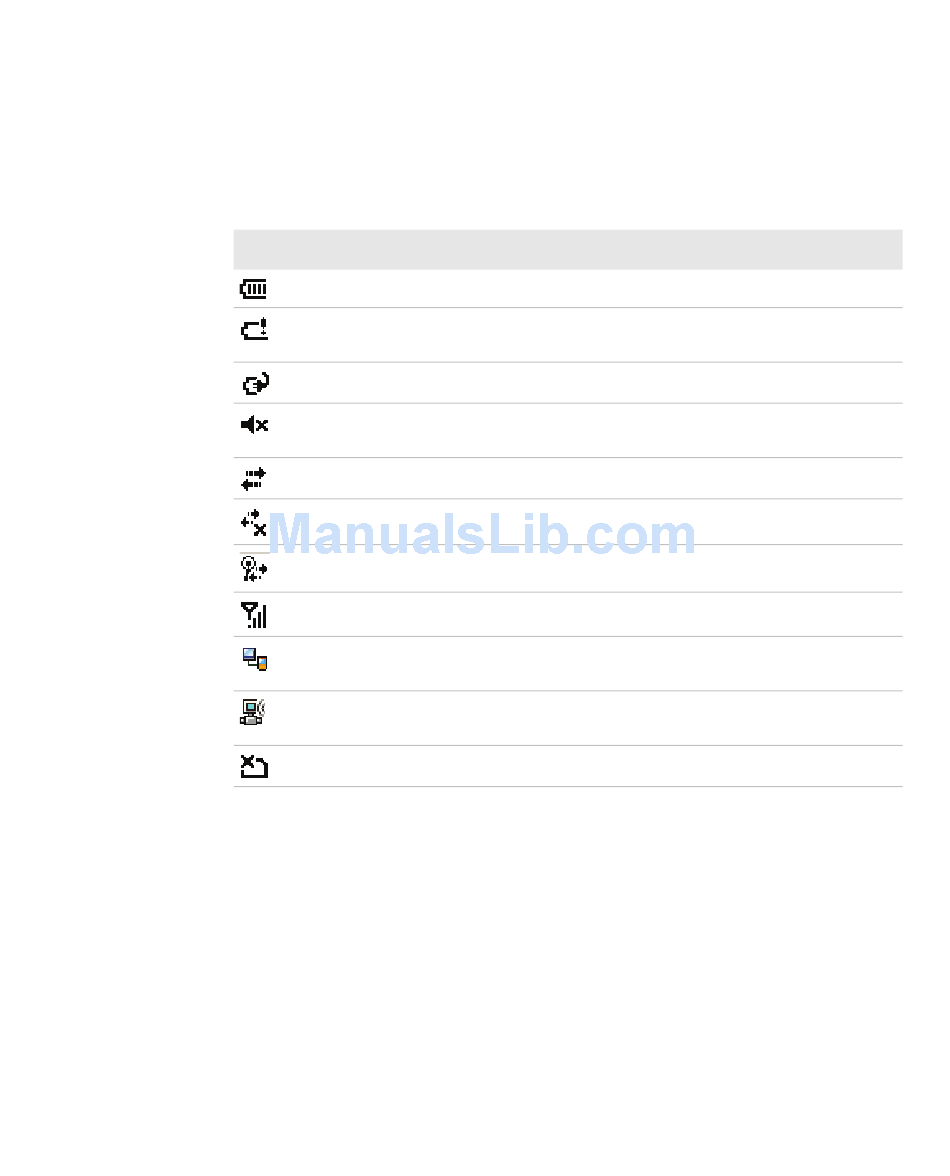

Computer Screen Icons
Icon Description
The battery is full.
The battery is low. You need to replace or charge the battery very
soon.
The CN4 is on external power and the battery is charging.
The volume is turned off. To turn the volume back on, tap this
icon and choose your setting.
The computer is connected to the network.
The computer is not connected to the network.
The 802.11b/g radio is connected to the wireless network.
The phone is connected to your WAN network.
The computer is connected through the USB port to your
desktop PC.
The iConnect application icon. Tap it to set up Ethernet or
Wireless settings.
No SIM card is installed.
If the touch screen does not respond when you tap it with the stylus,
you may need to calibrate the screen.
To calibrate the touch screen
1 Tap Start > Settings > the Systems tab > Screen.
2 Tap Align Screen and follow the instructions to align the screen.
3 Tap ok.
