1BChapter 2: Installation

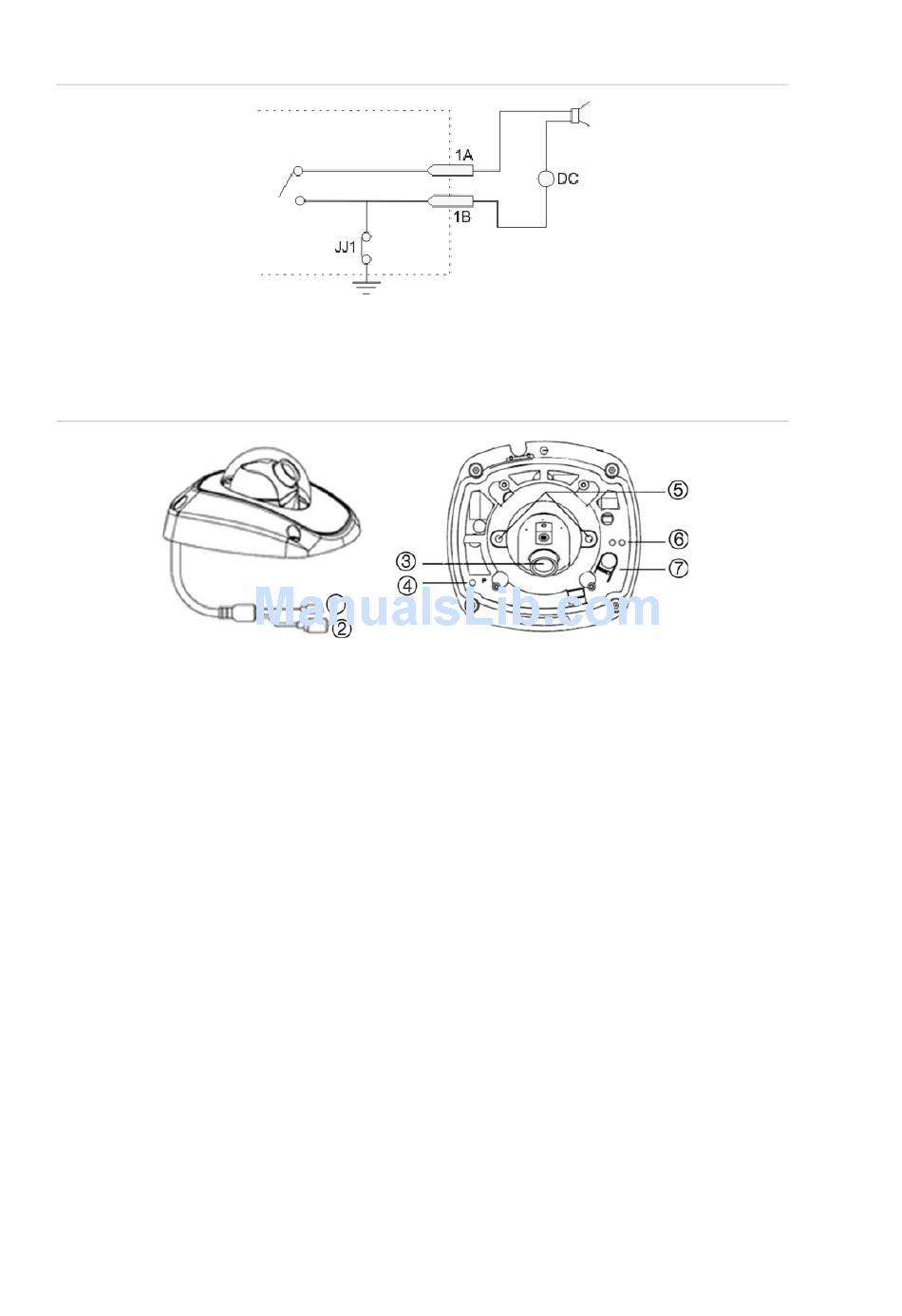

Figure 4: External alarm output
Wedge dome camera connections
Figure 5: Wedge dome camera connections
1. Power input connector
Connect +12 VDC power supply.
2. Ethernet RJ45 PoE connector
Connect to the network devices.
3. Lens

Accessing the SDHC card

Insert an SDHC card up to 32GB for local storage as a backup in case the
network fails, for example (see Figure 6 below) . The card is not supplied with the
camera.
Video and log files stored on the SDHC card can only be accessed via the Web
browser. You cannot access the card using TruVision Navigator or a recording
device.
Note: There is no SDHC card slot in the wedge dome cameras.
8
4. Power LED
5. Lens positioning screws
6. Network status LEDs
7. Reset switch
Click to reset all parameters to factory
default.
TruVision IP Dome Open-Standards User Manual
