TruVision HD-TVI Series
4 PTZ Dome Camera
Installation Guide
P/N 1073206-EN • REV D • ISS 31AUG17

Advertisement

Table of Contents
loading

Related Manuals for Interlogix TruVision

Summary of Contents for Interlogix TruVision

  • Page 1 TruVision HD-TVI Series 4 PTZ Dome Camera Installation Guide P/N 1073206-EN • REV D • ISS 31AUG17...
  • Page 2 Copyright © 2017 United Technologies Corporation, Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and Trade names used in this document may be patents trademarks or registered trademarks of the manufacturers or vendors of the respective products.
  • Page 3 (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Contact For contact information, see www.interlogix.com or information www.utcfssecurityproducts.eu.

  • Page 5: Table Of Contents

    Mounting the outdoor HD-TVI PTZ dome 37 Mount the bracket on the wall 37 Mount the camera on the bracket 38 Flush mount the camera 41 Surface mount the camera 44 Using the camera with a TruVision recorder or another system 49 Installation Guide...
  • Page 6 Specifications 50 TruVision Pendant/Wall HD-TVI PTZ camera 50 TruVision Surface/Flush HD-TVI PTZ Dome 50 TruVision Pendant/Wall IR HD-TVI PTZ Dome 51 Installation Guide...

  • Page 7: Introduction

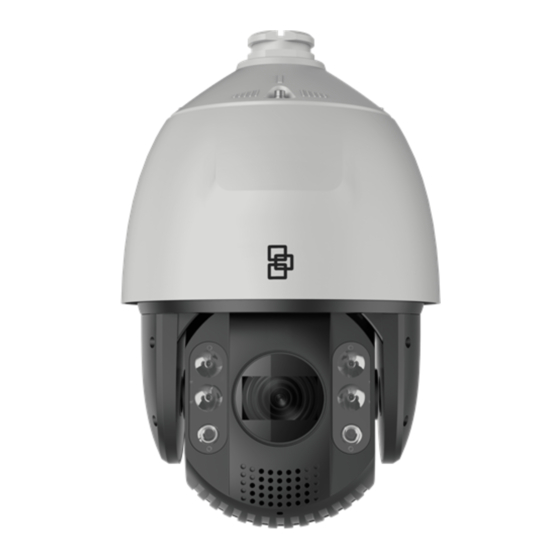

    Introduction Product overview This is the installation guide for TruVision HD-TVI Series 4 PTZ Dome Camera models: HD-TVI 1080P PTZ Dome Cameras TVP-2401 (30X, Pendant/Wall mount, PAL)  TVP-2402 (30X, Surface/Flush mount, PAL)  TVP-4401 (30X, Pendant/Wall mount, NTSC) ...

  • Page 8: Installation

    Installation This section provides information on how to install the cameras. Installation environment When installing your product, consider these factors: • Electrical: Install electrical wiring carefully. It should be done by qualified service personnel. Always use a CE certified power supply (24VAC) to power the camera. Do not overload the power cord or adapter.

  • Page 9: Package Contents

    be used for an extended period of time, put on the lens cap to protect the sensors from dirt. Package contents Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit;...
  • Page 10 • Foam pad • Desiccant 1 (Place it at the top of the (Two small bags. Used housing where the as the spare desiccant harness exits). for the PTZ dome. To use this desiccant, place it inside the cup base and tie it with the zip tie below.) •...

  • Page 11: Surface/Flush Hd-Tvi Ptz Dome

    Surface/Flush HD-TVI PTZ dome • Camera • CD with Configuration manual • Installation manual • WEEE and Battery Disposal sheets • Desiccant 1 • Desiccant 2 (Two small bags. Used as (One large bag. Used the spare desiccant for the to keep the two bags PTZ dome.
  • Page 12 • Zip tie (2 pcs) • Metal mounting base (Used to tie the desiccant 1 bags inside the PTZ dome) • housing ring • Trim ring • Drill template (224 mm or • Phillips screws (4 pcs) 8.82 in.) Installation Guide...

  • Page 13: Pendant/Wall Ir Hd-Tvi Ptz Dome

    • Dry wall anchors (4 pcs) • Fixation pin (4 pcs) Pendant/Wall IR HD-TVI PTZ dome • Camera • CD with Configuration manual Installation Guide...
  • Page 14 • Installation manual • WEEE and Battery Disposal sheets • Desiccant 1 • Desiccant 2 (Two small bags. Used (One large bag. Used as the spare desiccant to keep the two bags of for the PTZ dome. To desiccant away from use this desiccant, place moisture prior to use).

  • Page 15: Cable Requirements

    CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Cable requirements Choose the video cable according to the transmission distance. The minimum requirements for the coaxial video cable are: 75Ω...
  • Page 16 Note: The default dome address is 0. The default baud rate is 2400. Figure 1: DIP switch location for pendant/wall mount PTZ dome DIP switch Figure 2: DIP switch location for surface/flush mount PTZ dome DIP switch Figure 3: Enlarged view of the DIP switch Installation Guide...
  • Page 17 Address settings  Use the SW1 switches from 1 to 4 to set the PTZ dome address. Refer to Table 1 on setting the PTZ dome address to a specific number. Table 1: Set the dome address between 0 and 15 Switch no.
  • Page 18 Switch no. Dome address Protocol settings  Use SW1 switches 5, 6 and 7 to set the PTZ dome protocol. Refer to Table 2 below: Table 2: Set the dome protocol SW1 switch no. Protocol UTC RS-485 PROTOCOL_PELCO_P PROTOCOL_PELCO_D PROTOCOL_DIGIPLEX PROTOCOL_RS422_ASCII PROTOCOL_BOSCH_CODE PROTOCOL_AD_CODE...
  • Page 19 Table 3: Set the HD-TVI mode SW1 switch no. HD-TVI mode TVI 2.0 TVI 1.0 Baud rate settings  Use the SW2 switches 1 and 2 to set the baud rate of the PTZ dome. The baud rate can be 2400 bps, 4800 bps, 9600 bps or 19200 bps.

  • Page 20: Ir Pendant/Wall Mount Hd-Tvi Ptz Dome

    IR pendant/wall mount HD-TVI PTZ dome Use the two DIP switches SW1 and SW2 to set the PTZ dome address, baud rate, protocol, etc. Value ON =1 and OFF =0. The switch label is on the back of the SWITCH cover, as shown below.
  • Page 21 Table 5: Set the dome address Switch no. Dome address Installation Guide...
  • Page 22 Switch no. Dome address Installation Guide...
  • Page 23 Switch no. Dome address Installation Guide...
  • Page 24 Switch no. Dome address Installation Guide...
  • Page 25 Switch no. Dome address Installation Guide...
  • Page 26 Switch no. Dome address Installation Guide...
  • Page 27 Switch no. Dome address Installation Guide...
  • Page 28 Switch no. Dome address Installation Guide...
  • Page 29 Switch no. Dome address Installation Guide...
  • Page 30 Switch no. Dome address Installation Guide...
  • Page 31 Switch no. Dome address Installation Guide...
  • Page 32 Switch no. Dome address Installation Guide...
  • Page 33 Switch no. Dome address Baud rate settings  Use the SW2 switch numbers 1 and 2 to set the baud rate of the PTZ dome. The baud rate can be 2400 bps, 4800 bps, 9600 bps or 19200 bps. The baud rate will be set as 2400 bps by default if it is out of this range.
  • Page 34 Protocol settings  Use SW2 switches numbers 3, 4 and 5 to set the PTZ dome protocol. Refer to Table 2 below: Table 7: Set the dome protocol SW2 switch no. Protocol UTC RS-485 PROTOCOL_PELCO_P PROTOCOL_PELCO_D PROTOCOL_DIGIPLEX PROTOCOL_RS422_ASCII PROTOCOL_BOSCH_CODE PROTOCOL_AD_CODE HD-TVI mode settings ...
  • Page 35 Table 8: Set the HD-TVI Mode SW2 switch no. HD-TVI mode V2.0 V1.0 Terminal resistor settings (IR cameras only)  Use SW2 switch number 8 to turn on/off the 120Ω terminal resistor. When multiple PTZ domes are controlled through one RS-485 bus in serial mode, there must be a terminal resistor at the end of the RS-485 bus according to the RS-485 protocol standard.

  • Page 36: Terminal Resistor Settings (Non-Ir Cameras Only)

    Terminal resistor settings (non-IR cameras only) Follow these instructions to set the terminal resistor for the TVP-2401/TVP-4401. Remove the bubble from the TVI PTZ dome. Unscrew the four screws on the inside base of the camera to remove the PTZ drive from the housing. Locate the two pins near the corner of the dome drive base.
  • Page 37 Turn on the terminal resistor by inserting a jumper wire to connect the two pins. Installation Guide...

  • Page 38: Camera Description

    Camera description Figure 6: Outdoor HD-TVI PTZ dome HD-TVI output (White) 960H analog output (Black) Power supply 2 Alarm inputs a. Black 24 VAC (YELLOW/BLUE- b. Yellow/Green GND ALARM_IN1, c. Red 24 VAC YELLOW/ORANGE- ALARM_IN2)/ 1 Alarm RS-485 port output (WHITE/RED- a.
  • Page 39 Figure 7: Indoor HD-TVI PTZ dome HD-TVI output (White) 960H analog output (Black) Power supply 2 Alarm inputs a. Black 24 VAC (YELLOW/BLUE- b. Yellow/Green GND ALARM_IN1, c. Red 24 VAC YELLOW/ORANGE- ALARM_IN2)/1Alarm RS-485 port output (WHITE/RED- a. Orange RS-485+ ALARM_OUT1) b.
  • Page 40 Figure 8: IR outdoor HD-TVI PTZ dome HD-TVI output (White) RS-485 port a. Orange RS-485+ Power supply a. Black 24 VAC b. Yellow RS-485- b. Yellow/Green GND 960H analog output c. Red 24 VAC (Black) Housing Installation Guide...

  • Page 41: Ir Illuminators

    IR illuminators The IR PTZ dome camera’s built-in IR illumination provides high-quality video in low-light environments, even when there is no other illumination available. You can configure the IR illumination using the OSD menu or a recorder such as TVN and TVR. If the function is enabled, the IR light is ON when the camera enters night (black and white) mode.

  • Page 42: Mount The Camera On The Bracket

    Unscrew the two screws located below the rubber plugs. Open the bubble assembly and remove all three foam inserts and the plastic protective lens cover. Set the address and baud rate for the dome shown on the page 17. Attach the safety cable to the bracket. Use the supplied template to mark out the mounting area.
  • Page 43 Route the cables from the pendant-mount bracket. Install the PTZ dome to the bracket, and secure the PTZ dome using the screws enclosed with the bracket. Installation Guide...
  • Page 44 To mount the pendant/wall IR HD-TVI PTZ dome: Set the address and baud rate for the dome shown on the page 17. Hang the safety cable to the HD-TVI PTZ dome and then hook the dome to the bracket, as shown below. Route the cables of the PTZ dome through the bracket.

  • Page 45: Flush Mount The Camera

    Flush mount the camera Flush-mounting is suitable for indoor ceiling construction. The following requirements are mandatory preconditions for mounting: The height of the space above the ceiling must be greater  than 250 mm (9.843 in). The thickness of the ceiling must be between 5 and ...
  • Page 46 Back box Protective foam Sticker Lower dome Remove the protective lens cover, foam and sticker from the dome drive. Set the address and baud rate for the HD-TVI dome. See page 11. Attach the lower dome to the back box. Rotate it clockwise to secure it.
  • Page 47 Adjust the height of the two housing tabs by turning the screw on which they are attached. The distance of the tabs from the housing ring must be greater than the thickness of the ceiling. Housing tab Screw Make sure that the housing tab is closed and then PUSH the housing into the pass-through hole.

  • Page 48: Surface Mount The Camera

    Arrow label Notch Note: Remove the protective film on the lower dome when the  installation is completed. In order to obtain clear video images, wear anti-static  gloves when you install the PTZ dome. Surface mount the camera Use surface mounting for indoor/outdoor solid ceiling construction.
  • Page 49 To mount the surface/flush HD-TVI PTZ dome to a ceiling: Note: When installing the PTZ to a ceiling, do not use drywall anchors. Remove the mounting bracket. Remove the four screws on the back box using a screwdriver. Remove the in-ceiling mounting bracket. Installation Guide...
  • Page 50 Screw the four fixation pins onto the back box using a screwdriver. Wire the dome. Route the cables of dome either from the top or the side of the back box. For the cables routed from the top of the back box, you must drill a cable hole in the ceiling. Surface mounting: Rotate the lower dome counterclockwise to separate it from the back box.
  • Page 51 Use the mounting base as a template to mark four screw holes onto the ceiling. If you route cables from the top of the back box, mark the cable hole on the ceiling and drill a hole. Secure the mounting base to the ceiling with Phillips screws.
  • Page 52 Screw holes Cable hole Install the HD-TVI PTZ dome on to the mounting base. Route the cables for the HD-TVI dome. Align the base of the HD-TVI dome with the mounting base. Align the direction of the arrow with the spring end of the mounting base.

  • Page 53: Using The Camera With A Truvision Recorder Or Another System

    Do not touch the bubble of the lower dome directly with  your hand. The image will be blurred. Using the camera with a TruVision recorder or another system Please refer to the recorder user manual for instructions on connecting and operating the camera with these systems.

  • Page 54: Specifications

    Specifications TruVision Pendant/Wall HD-TVI PTZ camera Electrical Voltage input 24 VAC Power consumption Max. 20 W Miscellaneous Connectors 24 VAC, Alarm In/Out, HD-TVI Output, 960H Analog Output Operating temperature -30 to +65 °C (-22 to +149°F) Dimensions 220 × 226 mm (8.66 ×...

  • Page 55: Truvision Pendant/Wall Ir Hd-Tvi Ptz Dome

    Flush: 246 × 245 mm (9.69 × 9.65 in.) Surface: 179.8 × 239 mm (7.07 × 9.41 in.) Weight 3 kg (6.61 Ib.) Environmental rating IP54, IK10 TruVision Pendant/Wall IR HD-TVI PTZ Dome Electrical Voltage input 24 VAC Power consumption Max. 30 W Miscellaneous...
