ZeeVee ZvBox 170 Get Going Manual page 6

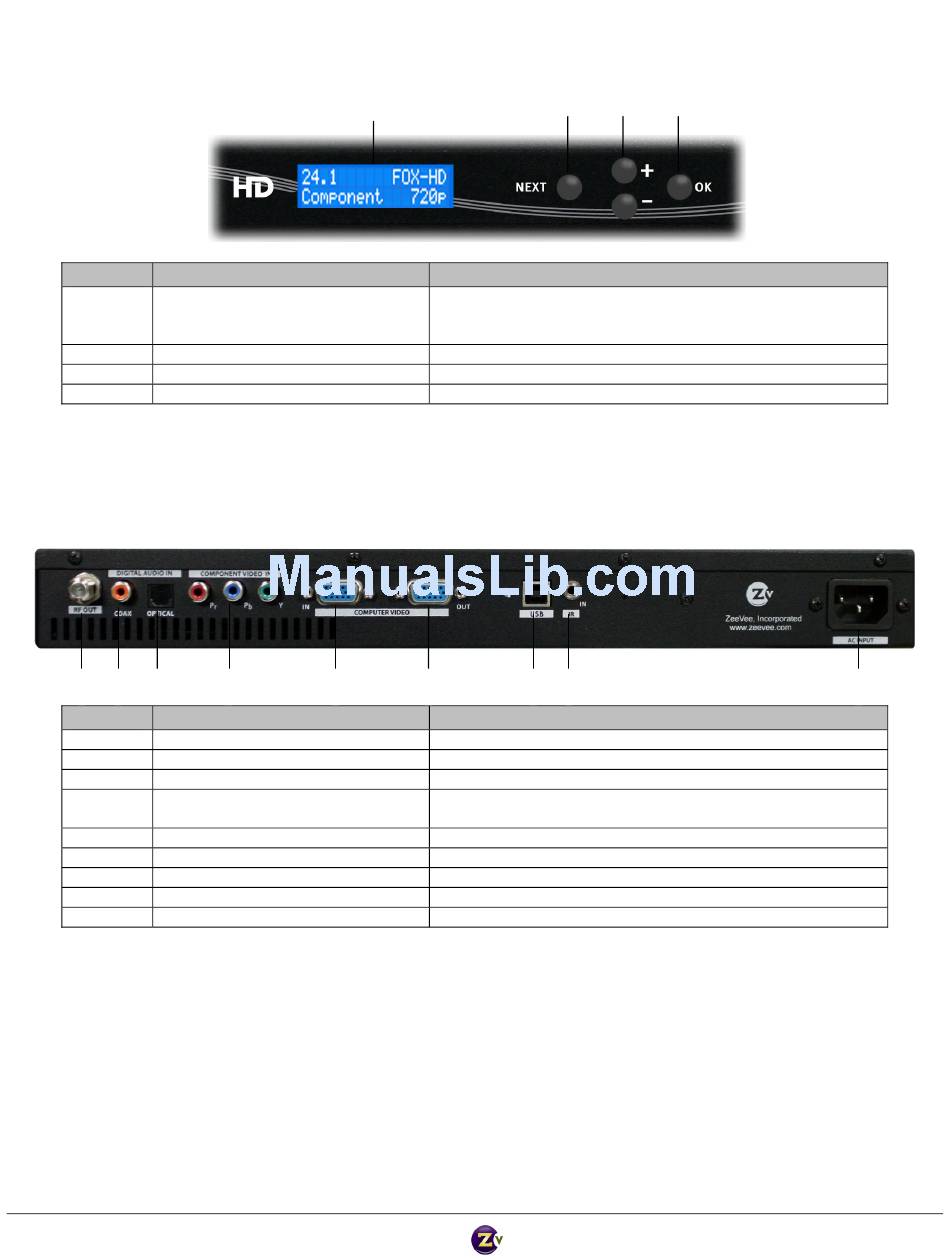

ZvBox 170 Front Panel
®
Item Description
1 Status Display
2 Next Button
3 +/‐ Buttons
4 OK Button
ZvBox 170 Back Panel
®
1 2 3
Item Description
1 Coax output
2 SPDIF Digital Audio Input (Coax)
3 SPDIF Digital Audio Input (Optical)
4 Component Video input, RCA
connectors, 75 Ohm
5 VGA (RGB) input; HD‐15 connector
6 VGA (RGB) output; HD‐15 connector
7 USB audio/control
8 IR port; 1/8" mini jack
9 AC input
®
ZvBox 170 Get Going Guide
v.1.0
1
4 5
2
Function
High‐visibility character display for setting and displaying
configuration including channel, power, and label configuration;
input selection; video output parameters; scanning/system status.
For scrolling between functions.
For scrolling between options within a function.
For selecting functions and options.
6 7 8
Function
Outputs encoded video as QAM 256 channel
Accepts digital audio input (48KHz PCM or AC3)
Accepts digital audio input (48KHz PCM or AC3)
Accepts Component Video input (Pr, Pb, Y)
Accepts standard VGA input
Looped output from VGA (RGB) input
Operates as USB audio device connection, or control interface
Accepts IR commands
AC power cord, 120/240 volt
3 4
9
