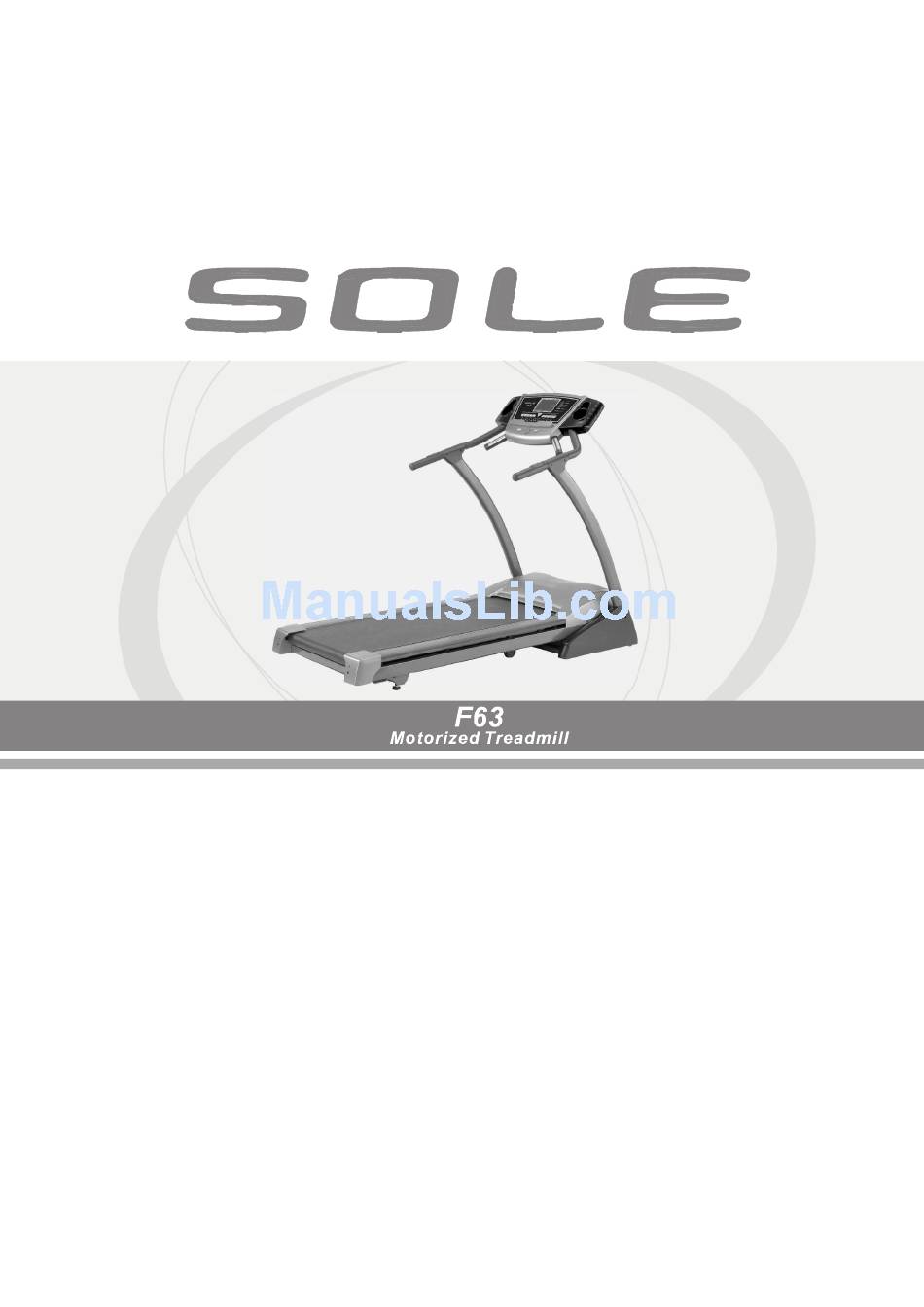

SOLE F63 Owner's Manual

Motorized treadmill
Hide thumbs Also See for F63:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW TREADMILL!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F63 and is the answer not in the manual?

Questions and answers

Related Manuals for SOLE F63

Summary of Contents for SOLE F63

  • Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!

  • Page 2: Table Of Contents

    Table of Contents Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Folding Instructions Transport Instructions Operation of Your New Treadmill Programmable Features General Maintenance. Service Checklist - Diagnosis Guide Manufacturer s Limited Warranty ATTENTION- THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRWNTED FOR THAT APPLICATION.

  • Page 3: Product Registration

    Through your dealer, Sole will do all we can to make your ownership experience as pleasant as possible for many years to come. The local dealership where you purchased this treadmill is your administrator for all Sole warranty and service needs.

  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your Sole treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 15-amp grounded outlet.

  • Page 5: Important Electrical Information

    Important Electrical Information WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected.

  • Page 6: Important Operation Instructions

    NEVER mount or dismount the treadmill while the belt is moving. Sole treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.

  • Page 7: Assembly Instructions

    Assembly Instructions (F63)
  • Page 8 ASSEMBLY PACK CHECK LIST (F63) (12 pcs) 5/16 x 1/2 Button Head Socket Screw (1 pc) Safety Key (1 pc) Belt / Deck Lubricant (1 pc) Combination M5 Allen Wrench & Screwdriver (1 pc) M6 Allen Wrench Assembly (F63) STEP 1 Remove all parts from the carton.

  • Page 9: Folding Instructions

    Folding Instructions Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired position. To Fold The Treadmill: Make certain the treadmill is at minimum incline.

  • Page 10: Operation Of Your New Treadmill

    Operation of Your Treadmill Getting familiar with the control panel Console Getting started: Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not power on without it.

  • Page 11: Incline Feature

    Quick-Start Operation: STEP 1: Attach the Safety key to wake display up (if not already on). STEP 2: Press the Start key to begin belt movement, at 1.0 km, then adjust to the desired speed using the Fast / Slow keys (console or handgrip). You may also use the rapid speed keys 2 through 10 to adjust the speed.

  • Page 12: Pulse Grip Feature

    Dot Matrix Center Display (Program Operation): Twenty rows of dots (8 high) indicate each segment of a workout. The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity. In operation the Speed / Incline dot matrix window will build a profile “picture”...

  • Page 13: Programmable Features

    Programmable Features Factory preset programs, 2 user defined programs, one Manual program (P0) and P1-P5 programs. Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The maximum speed that the particular program will achieve will be displayed in the Speed window.
  • Page 14 STEP 4: The Calorie window will now be blinking an Age value. Adjust the age and press enter. STEP 5: The first column (segment) will now be blinking. Using the Fast / Slow or rapid keys, adjust the speed level to your desired effort for the first segment then press enter. The second column will now be blinking.

  • Page 15: General Maintenance

    General Maintenance Belt and Bed - Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the bed is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge.
  • Page 16 TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SOLE WARRANTY. BELT / DECK LUBRICATION: Do not re-lube with other than Sole lubricant. Sole provides one application with this unit. See your Sole dealer for additional purchases. The use of some other lubricants may destroy the deck surface or belt and will void warranty.

  • Page 17: Service Checklist - Diagnosis Guide

    If an extension cord is required it should be as short as possible and heavy duty 16 gauge minimum. Low household voltage. Contact an electrician or your Sole dealer. A minimum of 110 volt AC current is required. Treadbelt stops quickly/suddenly when High belt/deck friction.

  • Page 18: Manufacturer S Limited Warranty

    3. If there is a question as to where to obtain service, contact our service department at (800) 258-4555 ext:634. 4. If no local service is available, Sole will repair or replace the parts, at Sole’s option, within the warranty period at no charge for parts. All transportation costs, both to our factory and upon return to the owner, are the responsibility of the owner.
