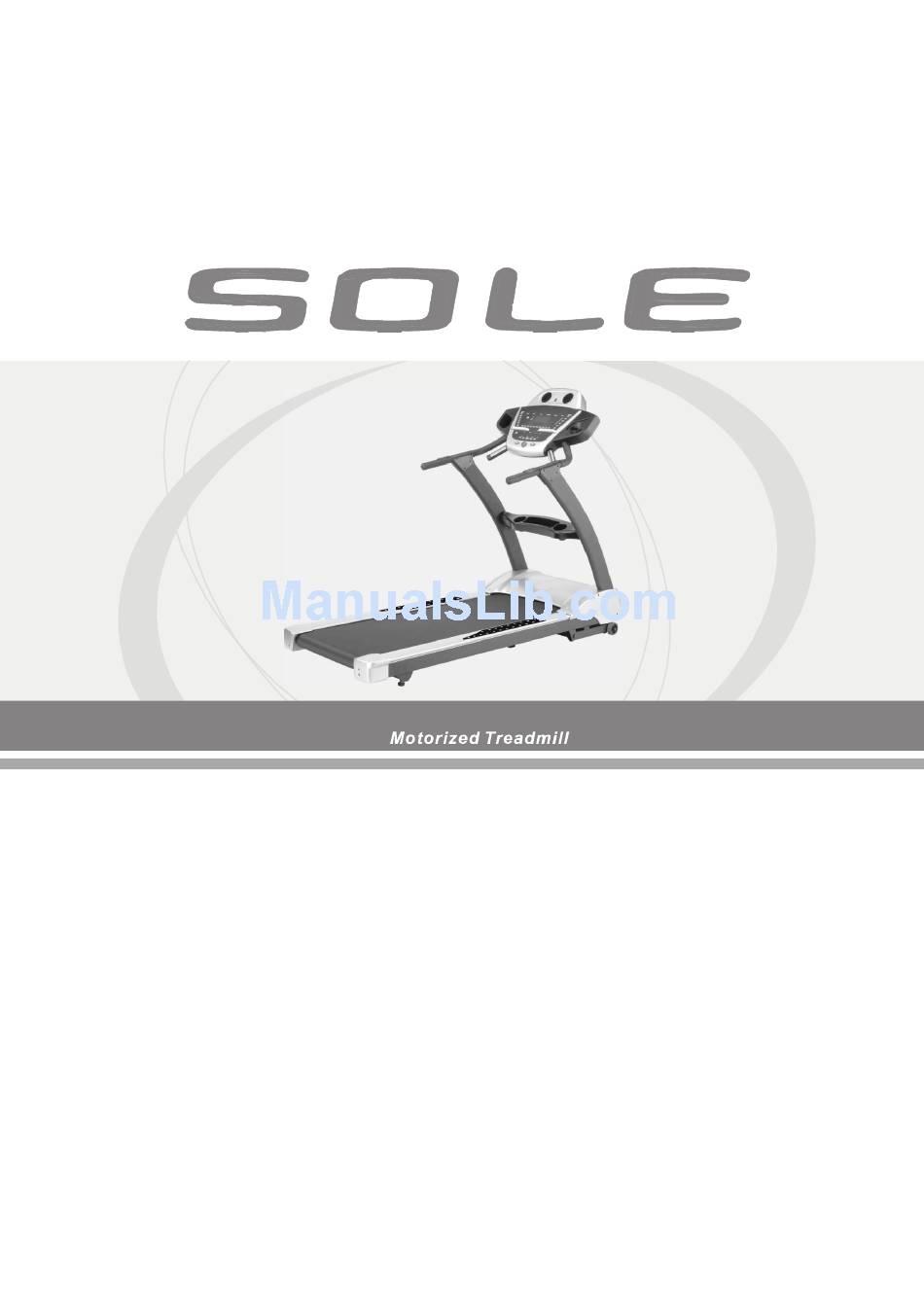

TT8
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE
OPERATING YOUR NEW TREADMILL!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT8 and is the answer not in the manual?

Questions and answers

Related Manuals for SOLE TT8

Summary of Contents for SOLE TT8

  • Page 1 OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!

  • Page 2: Table Of Contents

    Table of Contents Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Transport Instructions Operation of Your New Treadmill Programmable Features Target Heart Rate Using a Heart Rate Transmitter Heart Rate Control Operation General Maintenance. Service Checklist - Diagnosis Guide Manufacturer s Limited Warranty ATTENTION- THIS TREADMILL IS INTENDED FOR RESIDENTIAL USE ONLY...

  • Page 3: Product Registration

    Through your dealer, Sole will do all we can to make your ownership experience as pleasant as possible for many years to come. The local dealership where you purchased this treadmill is your administrator for all Sole warranty and service needs.

  • Page 4: Important Safety Instructions

    Important Safety Instructions WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your Sole treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 120-volt, 20-amp grounded outlet.

  • Page 5: Important Electrical Information

    Important Electrical Information WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power. If voltage varies by ten percent (10%) or more, the performance of your treadmill may be affected.

  • Page 6: Important Operation Instructions

    NEVER mount or dismount the treadmill while the belt is moving. Sole treadmills start with at a very low speed and it is unnecessary to straddle the belt during start up. Simply standing on the belt during slow acceleration is proper after you have learned to operate the unit.

  • Page 7: Assembly Instructions

    Assembly Instructions (TT8)
  • Page 8 ASSEMBLY PACK CHECK LIST (TT8) (3 pcs) M3 x 18 m/m Self Tapping Screw (10 pcs) 5/16 x 1/2 Button Head Socket Screw (4 pcs) 5/16 x 3/4 Button Head Socket Screw (2 pcs) M5 Iron Plate Nut (2 pcs) 3/8 x 2T Spring Washer...
  • Page 9 Transport Carefully lift the treadmill at the rear roller area, grasping the two side end caps, and roll the treadmill away.

  • Page 10: Operation Of Your New Treadmill

    Operation of Your Treadmill Getting familiar with the control panel TT8 Console Getting Started: Power the treadmill on by plugging it into an appropriate wall outlet, then turn on the power switch located at the front of the treadmill below the motor hood. Ensure that the safety key is installed, as the treadmill will not power on without it.

  • Page 11: Incline Feature

    Quick-Start Operation: STEP 1: Press and release the Start key to wake display up (if not already on). Note: Installing the tether key will also wake up the console. STEP 2: Press and release the Start key to begin belt movement, at .5 mph, then adjust to the desired speed using the Fast / Slow keys (console or hand rail).

  • Page 12: Pulse Grip Feature

    Dot Matrix Center Display (Manual Operation) Twenty rows of Red dots (8 high) indicate each segment of a workout. The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value - only an approximate percent to compare levels of intensity.

  • Page 13: Programmable Features

    Programmable Features The New Sole's Series offers 7 factory preset programs, 2 user defined programs and one Manual program. Each preset program has a maximum speed level that is displayed when a desired workout is chosen. The maximum speed that the particular program will achieve will be displayed in the Speed window.

  • Page 14: User Programs

    User Programs: STEP 1: Select User 1 or User 2 via the PROGRAM key then press Enter. Note that the dot matrix display portion will have a single row of dots at the bottom (Unless there is a previously stored program).

  • Page 15: Target Heart Rate

    Consult your physician before participating in any exercise program. With all Sole Heart Rate Control treadmills, you may use the heart rate monitor feature without using the Heart Rate Control program. This function can be used during manual mode or during any of the nine different programs.

  • Page 16: Using A Heart Rate Transmitter

    2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable. 3. Position the transmitter with the Sole logo centered in the middle of your body facing away from your chest (some people must position the transmitter slightly left of center). Attach the final end of the elastic strap by inserting the round end and, using the locking parts, secure the transmitter and strap around your chest.

  • Page 17: Heart Rate Control Operation

    Heart Rate Control How the Heart Rate Control Program Works: Heart Rate Control (HRC) uses your treadmill's speed and incline systems to adjust your heart rate. Increases and decreases in elevation affect heart rate much more efficiently than changes in speed alone.

  • Page 18: General Maintenance

    General Maintenance Belt and Bed - Your treadmill uses a very high-efficient low-friction bed. Performance is maximized when the bed is kept as clean as possible. Use a soft, damp cloth or paper towel to wipe the edge of the belt and the area between the belt edge and frame. Also reach as far as practical directly under the belt edge.
  • Page 19 Do not re-lube with other than Sole lubricant. Sole provides one application with this unit. See your Sole dealer for additional purchases. The use of some other lubricants may destroy the deck surface or belt and will void warranty. Conditions exist beyond Sole s control on belt / deck cleanliness which relates to friction.

  • Page 20: Service Checklist - Diagnosis Guide

    If an extension cord is required it should be as short as possible and heavy duty 16 gauge minimum. Low household voltage. Contact an electrician or your Sole dealer. A minimum of 110 volt AC current is required. Treadbelt stops quickly/suddenly when High belt/deck friction.

  • Page 21: Manufacturer S Limited Warranty

    3. If there is a question as to where to obtain service, contact our service department at (800) 258-4555 ext:634. 4. If no local service is available, Sole will repair or replace the parts, at Sole s option, within the warranty period at no charge for parts. All transportation costs, both to our factory and upon return to the owner, are the responsibility of the owner.
