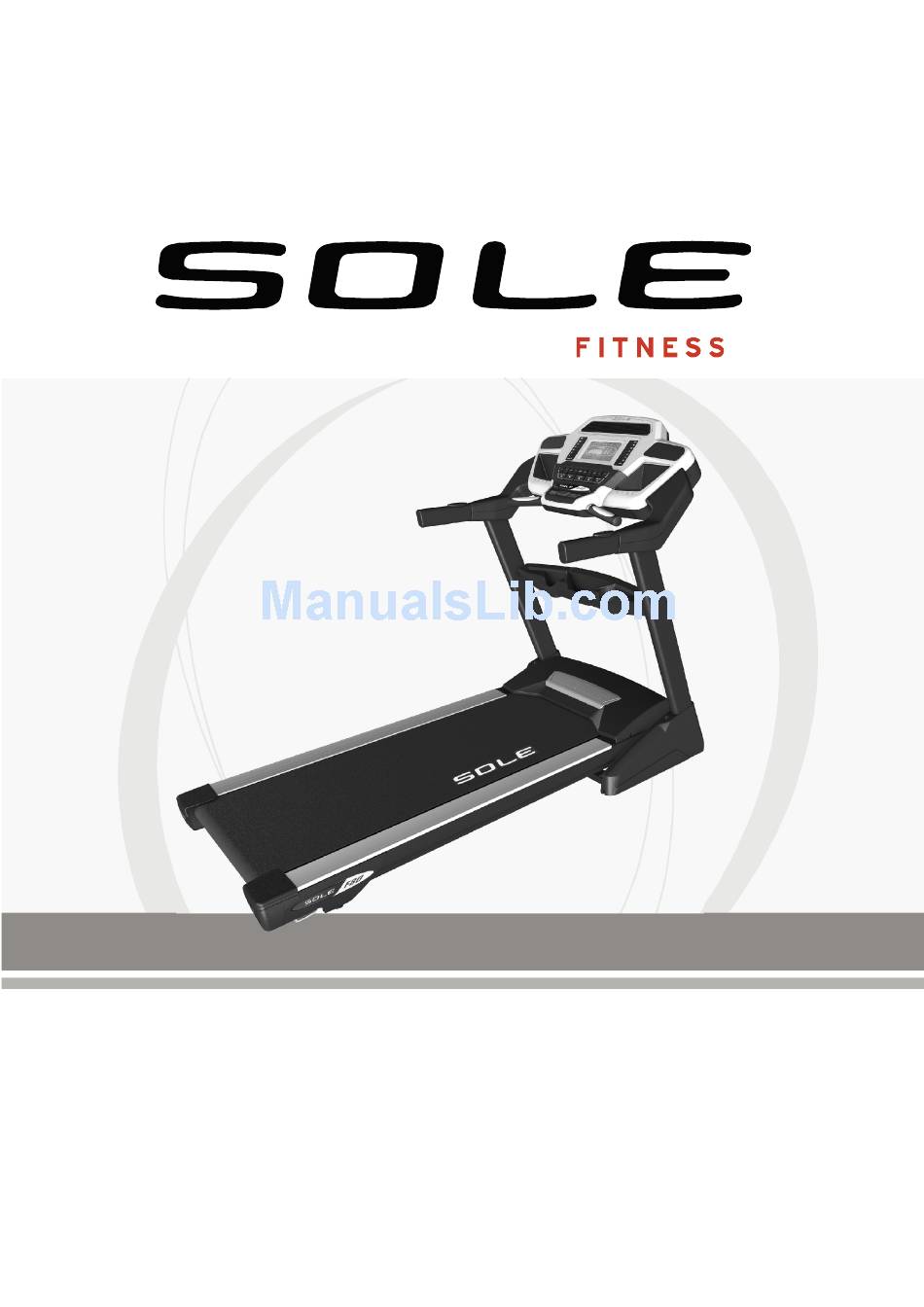

- SOL0015 -
F80 TREADMILL
OWNER'S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING
YOUR NEW TREADMILL!

Advertisement

Table of Contents
loading

Related Manuals for SOLE F80

Summary of Contents for SOLE F80

  • Page 1 - SOL0015 - F80 TREADMILL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL!

  • Page 2: Table Of Contents

    Important Electrical Information..........3 Important Operation Instructions..........4 Important Safety Instructions............5 Assembly Pack Checklist............6 Assembly Instructions...............8 Operation Of Your Treadmill............13 Programmable Features............17 General Maintenance...............24 Service Checklist - Diagnosis Guide........27 Exploded View Diagram............29 Parts List ................30 Manufacturer’s Limited Warranty........... 35 F80 / SOL0015_ver.A(2013)
  • Page 3 Through your dealer, SOLE will do all we can to make your ownership experience as pleasant as possible for many years to come. If not purchased direct from SOLE, the local dealership where you purchased this treadmill is your administrator for all SOLE warranty and service needs.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this appliance. DANGER - To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work. WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons, install the treadmill on a flat level surface with access to a 230-volt, 10-amp grounded outlet with only the treadmill plugged into the circuit.

  • Page 5: Important Electrical Information

    IMPORTANT ELECTRICAL INSTRUCTIONS WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. NEVER remove any cover without first disconnecting AC power.

  • Page 6: Important Operation Instructions

    IMPORTANT OPERATION INSTRUCTIONS NEVER operate this treadmill without reading and completely understanding the results of any operational change you request from the computer. Understand that changes in speed and incline do not occur immediately. Set your desired speed on the computer console and release the adjustment key. The computer will obey the command gradually.

  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ BEFORE UNPACKING YOUR FOLDING TREADMILL Serious injury could occur if this folding treadmill is not unpacked properly. There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping. If this strap is not removed properly the treadmill could spring open unexpectedly and cause injury if someone is standing near the treadmill when the strap is removed.

  • Page 8: Assembly Pack Checklist

    ASSEMBLY PACK CHECKLIST HARDWARE STEP 2 #128. M5 Speed Nut Clip (6 pcs) HARDWARE STEP 3 #130. 5/16” x 1/2” Button Head Socket Bolt (8 pcs) HARDWARE STEP 5 #113. Ø 10 x 2T Split #133. 3/8” x 1-3/4” Button Head Socket Bolt (4 pcs) Washer (4 pcs) HARDWARE STEP 6...
  • Page 9 HARDWARE STEP 7 #151. 5/16” x 3/4” #75. Safety Key Button Head Socket Bolt (4 pcs) HARDWARE STEP 8 #120. 5 x 16mm Tapping Screw (6 pcs) ASSEMBLY TOOLS #131. Combination M5 Allen Wrench & Phillips Head Screw Driver #132. M6 L Allen Wrench...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ASSEMBLY STEP 1 1. Remove the treadmill from the carton and position it aside on a smooth, level floor. The rear should be at least 3’ from any wall. Do not remove the Velcro belt until you have removed the plastic wrap and Styrofoam from beneath the unit.

  • Page 11: Assembly Step

    ASSEMBLY STEP 3 HARDWARE STEP 3 #130. 5/16” x 1/2” Button Head Socket Bolts (8 pcs) 1. Attach the Upright Tubes (4 & 5) onto the Frame Base (2) with eight Button Head Socket Bolts (130) by using the Combination M5 Allen Wrench &...
  • Page 12 ASSEMBLY STEP 5 HARDWARE STEP 5 #133. 3/8” x 1-3/4” Button Head Socket Bolts (4 pcs) #113. Ø10mm x 2T Split Washers (4 pcs) 1 3 2 1 1 3 1 1 3 1 3 3 1 3 3 1. Attach the Console Assembly (52) onto the Upright Tubes (4 & 5) and attach with four Button Head Socket Bolts (133) and four Split Washers (113).
  • Page 13 ASSEMBLY STEP 7 HARDWARE STEP 7 #151. 5/16” x 3/4” Button Head Socket Bolts (4 pcs) #75. Safety Key 1. Attach the Support tube (15) between the upright tubes (4 & 5) with four Button Head Socket Bolts (151). Tighten bolts firmly. 2.

  • Page 14: Folding Instructions

    FOLDING INSTRUCTIONS Do not attempt to move the unit unless it is in the folded and locked position. Be sure the power cord is secured to avoid possible damage. Use both handrails to maneuver the unit to the desired position. TO FOLD THE TREADMILL Make certain the treadmill is at minimum incline.

  • Page 15: Operation Of Your Treadmill

    OPERATION OF YOUR TREADMILL GETTING FAMILIAR WITH THE CONTROL PANEL CONSOLE COOLING FANS INCLINE SPEED QUICK KEYS QUICK KEYS SPEAKER SPEAKER FAN POWER SWITCH DISPLAY BUTTON DOT MATRIX DISPLAY CONTROL KEYS HEADPHONE JACK AUDIO IN JACK (MP3, CD, OR SMARTPHONE) CONTACT HEART RATE SENSORS GETTING STARTED...

  • Page 16: Incline Feature

    QUICK-START OPERATION 1. Attach the Safety Key to wake display up (if not already on). 2. Press the Start key to begin belt movement then adjust to the desired speed using the keys (console or handgrip). You may also use the Quick speed keys 2, 3, 4, Speed ▲...
  • Page 17 DOT MATRIX CENTER DISPLAY 18 columns of dots 8 high for the, indicate each segment of a workout. The dots are only to show an approximate level (speed/incline) of effort. They do not necessarily indicate a specific value only an approximate percent to compare levels of intensity. In operation, the speed/incline dot matrix window will build a profile “picture”...

  • Page 18: Pulse Feature

    PULSE FEATURE The Pulse (Heart Rate) Window will display your current heart rate in beats per minute during the workout. You must use both stainless steel sensors on the front cross bar to display your pulse or wear the wireless chest strap. The pulse value will display anytime the upper display is receiving a pulse signal.

  • Page 19: Programmable Features

    PROGRAMMABLE FEATURES The have ten built-in programs: one Manual program, five preset profiles, two user defined programs (U1 & U2) and two Heart Rate programs (HR1 & HR2). PRESET PROGRAMS Hill The Hill program simulates going up and down a hill. The workload will steadily increase and then decrease during the program.
  • Page 20 SELECTING A PROGRAM 1. Press the Program keys to view the programs on the screen then press the Enter key to select the program you would like to perform. The display will prompt you through the programming steps or you can just press the Start key to begin the program using the preset program values for age, weight and other program specific information.
  • Page 21 USER PROGRAMS 1. Select User 1 or User 2 via the Program keys then press Enter. Note that the dot matrix display portion will have a single row of dots at the bottom (Unless there is a previously stored program). If there is a program stored under the button that is pressed, it will be retrieved.
  • Page 22 HEART RATE PROGRAMS Before we get started, a word about Heart Rate: The old motto, “no pain, no gain”, is a myth that has been overpowered by the benefits of exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
  • Page 23 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages. There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute to the intensity at which you should workout.

  • Page 24: Using Heart Rate Transmitter (Optional)

    USING HEART RATE TRANSMITTER (Optional) How to wear your wireless chest strap transmitter: 1. Attach the transmitter to the elastic strap using the locking parts. 2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable.
  • Page 25 HEART RATE PROGRAMMING CAUTION! Heart Rate programs are intended for wireless transmitter chest strap. Do not use Pulse Grip bar for Heart Rate. You must receive a strong/steady value in the Heart Rate Window (See Using Heart Rate Transmitter section for instructions on how to use). The HR1 program has a default level that is 60% of your projected heart rate maximum.

  • Page 26: General Maintenance

    GENERAL MAINTENANCE BELT & DECK Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame.

  • Page 27: Tread-Belt Tracking Adjustment

    TREAD-BELT TRACKING ADJUSTMENT The treadmill is designed so that the tread-belt remains reasonably centered while in use. It is normal for some belts to drift near one side while in use, depending on a user’s gait and if they favor one leg. But if during use the belt continues to move toward one side, adjustments are necessary.

  • Page 28: Belt/Deck Lubrication

    BELT/DECK LUBRICATION First, you want to clean between the belt and deck to remove any debris that may be trapped. Use a clean, non-fraying rag, t-shirt, or light towel. Halfway between the end of the treadmill and motor cover, shove the garment under the belt until you can grasp it on both sides of the belt.

  • Page 29: Service Checklist - Diagnosis Guide

    SERVICE CHECKLIST - DIAGNOSIS GUIDE Before contacting your dealer for aid, please review the following information. It may save you both time and expense. This list includes common problems that may not be covered under the treadmill’s warranty. PROBLEM SOLUTION/CAUSE 1.
  • Page 30 CALIBRATION PROCEDURE 1. Remove the Safety Key. 2. Press and hold down the Start and Speed buttons and replace the Safety Key. Continue to ▲ hold the Start and Speed key until the window displays “Factory settings”, then press the ▲...

  • Page 31: Exploded View Diagram

    EXPLODED VIEW DIAGRAM...

  • Page 32: Parts List

    PARTS LIST Part Number Part Description Qty per unit Main Frame Frame Base Incline Bracket Right Upright Left Upright Console Support Seat Slider Outer Slide Clevis Pin Fastening Bushing Link Shaft Shaft Bushing Fastening Bracket Link Handrail Support Dual Torsion-Spring Release Lever ChenChin Torsion-Spring Cylinder...
  • Page 33 Part Number Part Description Qty per unit 43~1 Ø25 × 12 × 15m/m_Ferrite Core 43~2 Ø31 × 18 × 13L_Ferrite Core On/Off Switch Power Cord 100m/m_Connecting Wire (Black) 100m/m_Connecting Wire (White) 100m/m_Connecting Wire (Black) 700m/m_Computer Cable(Upper/Lower) 1150m/m_Computer Cable(Lower) 1200m/m_Computer Cable Console Assembly 52~1 Console Top Cover...
  • Page 34 Part Number Part Description Qty per unit 52~39 Speaker Iron Net (R) 52~40 400m/m_Console Ground Wire 52~43 LCD Transparent Piece 52~44 7.5" Water-resist Rubber 52~45 Book Rack Motor Top Cover 300m/m_Speed Adjustment Switch W/Cable 300m/m_Incline Adjustment Switch W/Cable Cushion Transportation Wheel(A) Transportation Wheel(B) Foot Rail Cap (L) Foot Rail Cap (R)
  • Page 35 Part Number Part Description Qty per unit 1/2" × 8.0T_Nyloc Nut 3/8" × 7.0T_Nyloc Nut 5/16" × 6.0T_Nyloc Nut M8 × 7.0T_Nyloc Nut 3/8" × 6.5T_Nut M3 × 2.5T_Nut Ø5/16" × Ø35 × 1.5T_Flat Washer Ø10 × Ø25 × 2.0T_Flat Washer Ø10 ×...
  • Page 36 Part Number Part Description Qty per unit Speaker Grill Anchor Drink Bottle Beverage Holder 5/16" × 3/4"_Button Head Socket Bolt M5 × 1.5T_Split Washer LOGO Cover (R) LOGO Cover (L) Wire Clamp Rear Roller Cover (L) Rear Roller Cover (R) Ø4 ×...

  • Page 37: Manufacturer's Limited Warranty

    The various components of the treadmill are warranted against defects and workmanship for the time periods specified as follows: SOL0015 – F80 Life Time Motor and Life Time Frame Life Time Running Deck 3 Years Parts All warranty coverage extends only to the original retail purchaser from the date of purchase.

  • Page 38: Warranty Information

    Law. If the warranty periods offered in the two documents are different then the greater of the two shall be honoured. F80 Treadmill is warranted to be free from defects in material and workmanship under normal use and service conditions for a period of 6 months from the date of purchase of this article.
  • Page 39 The service centre representative will assess the claim. If: 1) there is a minor fault, they can offer either a replacement spare part, replacement unit, repair or other suitable remedy; 2) there is a major fault, they can offer a replacement, repair or suggest you return to the store you purchased it from for a full refund.
