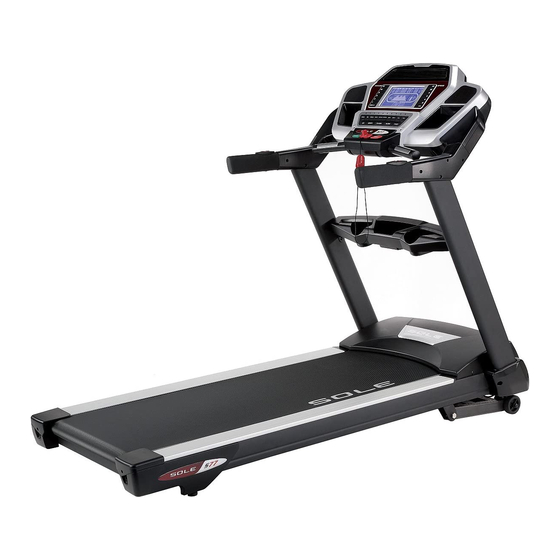

SOLE S77 Owner's Manual
  1. Manuals
  2. Brands
  3. SOLE Manuals
  4. Treadmill
  5. S77
  6. Owner's manual

SOLE S77 Owner's Manual

Hide thumbs Also See for S77:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S77 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOLE S77

Summary of Contents for SOLE S77

  • Page 2 TABLE O F Product Registration Important Electrical Information Important Operation Instructions Assembly Instructions Transport Instructions Operation of Your New Treadmill Programmable Features General Maintenance Service Checklist - Diagnosis Guide Manufacturer's Limited Warranty...
  • Page 3 SOLE will do all we can to make your ownership experience as pleasant as possible for many years to come. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1=866=780=SOLE {7653). If you have a technical...
  • Page 4 UCTI WARNING - Read all instructions before using this appliance. DANGER -To reduce the risk of electric shock disconnect your SOLE treadmill from the electrical outlet prior to cleaning and/or service work. WARNING -To reduce the risk of burns, fire, electric...
  • Page 5 IMPORTANT ELECT CALl T UCTi WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any appliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation...
  • Page 6 If you feel the buttons are not functioning properly with normal pressure contact your SOLE dealer. IMPORTANT TYI UCTI A safety tether cord is provided with this unit and should be used at all times. It is for your safety should you fall or move too far back on the tread-belt.
  • Page 7 IMPORTANT TYI ST UCTI READ BEFORE UNPACKING YOUR FOLDING TREADMILL Serious injury could occur if this folding treadmill is not unpacked properly. There is a Velcro strap installed around the treadmill base that prevents the treadmill from unfolding accidentally during shipping.
  • Page 8 $77ASSEMBLY PACK C HECKLIST #79.010mm x 019mm x 1.5T #86.3/8"x #100.5/16"x 3/4" Button Head Socket Flat Washer (6 pcs) Split Washer (6 pcs) Bolt (4 pcs) #124.08mm x 023mm x 1.5T #123.3/8"x 2-1/2" Button Head Socket Bolt (6 pcs) Curved Washer (4 pcs) ©...
  • Page 9 #100.5/16"x 3/4" Button HeadSocketBolt (4 pcs) #127. M5 x 10mm PhillipsHeadScrew(4 pcs) #103. CombinationM5 AllenWrench & PhillipsHeadScrewDriver #104. M6 L Allen Wrench $77 TREADMILL...
  • Page 10 $77ASSEMBLY INSTRUCTIONS Remove the treadmill from the carton and position it aside on a smooth, level floor.The rear should be at least 3'from any wall. Do not remove the Velcro belt until you have removed the plastic wrap and Styrofoam from beneath the unit.
  • Page 11 #79. DlOmm x D19mm x 1.5T Flat Washer (6 pcs) #86.3/8" x 2T Split Washer (6 pcs) #100. 5/16"x 3/4" Button Head Socket Bolt (4 pcs) #123. 3/8"x 2-1/2" Button Head Socket Bolt (6 pcs) #124. D8mm x 023mm x 1.5T Curved Washer (4 pcs) Attach the left (5) and right (4) Console Mast Tubes and accompanying brackets (7 Left Side &...
  • Page 12 Side Cap (111 & 112) and Right Handgrip Side Cap (113 & 114) on the uprights (5,4) and Console Assembly (36) with six Sheet Metal Screws (125).Tighten using the Combination M5 Allen Wrench and Phillips Head Screw Driver (103). S77 TREADMILL...
  • Page 13 • #100. 5/16"x 3/4" Button Head Socket Bolts (4 pcs) Install Handrail Support (3) between right and left Uprights (4) and (5) and use the Combination M5 L Allen Wrench & Phillips Head Screw Driver (103) to tighten the four Button Head Socket Bolts (IO0). Then install the Left & Right Beverage Holder Covers (129 &...
  • Page 14 TRANSPORTATIONI ST CT The treadmill is equipped with transport wheels that are engaged when the treadmill is folded. After folding simply roll the treadmill away. $77 TREADMILL...

  • Page 15: Getting Started

    (or Kilometers if the treadmill is set to metric readings) the treadmill has gone.The current software version will appear in the Message window.The treadmill will then enter idle mode, which is the starting point for operation. S77 TREADMILL...

  • Page 16: Incline F Eature

    OPERATION QUICK-START Attach the Safety Key to wake display up (if not already on). Press the Start key to begin belt movement then adjust to the desired speed using the Speed keys (console or handgrip).You may also use the Quick speed keys 2, 3, 4, 5, 6, 9 or 12 to adjust the speed.

  • Page 17: Message Window

    DOT MATRIX CENTER DISPLAY Twenty four columns of dots (10 high) indicate each segment (speed or incline) of a workout. They do not necessarily indicate a specific value - only an approximate percent compare levels of intensity. In Manual Operation the Speed / Incline dot matrix window...
  • Page 18 PULSE FEATURE The Pulse (Heart Rate) Window will display your current heart rate in beats per minute dur- ing the workout. You must use both stainless steel sensors on the front cross bar to display your pulse or wear the wireless chest strap.The pulse value will display anytime...
  • Page 19 PROGRAMMA The $77 has ten built-in programs: one Manual program, five preset profiles, two user defined programs (U1 & U2) and two Heart Rate programs(HR1 & HR2). PRESET PROGRAMS Hill The Hill program simulates going up and down a hill. The workload will steadily increase and then decrease during the program.
  • Page 20 SELECTING A PROGRAM Press the Program keys to view the programs on the screen then press the Enter key to select the program you would like to perform.The display will prompt you through programming steps or you can just press the Start key to begin the program using the preset program...

  • Page 21: User Programs

    USER PROGRAMS I IC[O I IE['_ O u2J_K u3CK Select User 1 or User 2 via the Program keys then press Enter. Note that the dot matrix display portion will have a single row of dots at the bottom (Unless there is a previously stored program).

  • Page 22: Heart R Ate P Rograms

    HEART R ATE P ROGRAMS Before we get started, a word about Heart Rate: The old motto, "no pain, no gain", is a myth that has been overpowered by the benefits exercising comfortably. A great deal of this success has been promoted by the use of heart rate monitors.
  • Page 23 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages.There are more variables involved in how hard you should workout than just heart rate. Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute...

  • Page 24: Erratic Operation

    Normally the transmitter will be oriented so the SOLE logo is right side up. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning whole machine 90 degrees may de-tune the interference.
  • Page 25 HEART RATE PROGRAMMING CAUTION! Heart Rate programs are intended for wireless transmitter chest strap. Do not use Pulse Grip bar for Heart Rate. You must receive a strong/steady value in the Heart Rate Window (See Using Heart Rate Transmitter section for instructions on how to use).

  • Page 26: Belt A Djustments

    GENERAL I T BELT & DECK Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame.
  • Page 27 FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SOLE WARRANTY. TREADMILL BELT The walking belt on your new Sole treadmill is made of the highest quality materials designed to last even under punishing conditions.When a treadmill belt is brand new, and has been in...
  • Page 28 Sole Fitness approved lubricant. Your treadmill comes with one tube of"Lube"and extra tubes can be ordered directly from Sole Fitness or your authorized Sole Fitness dealer.You may also use a Lube-n-Walk kit that can be purchased through both aforementioned sellers.
  • Page 29 AC household wall outlet. Household circuit breaker may be tripped. Treadmill defect. Contact your SOLE dealer. Tread-belt does not stay centered The user may be walking while favoring or putting more weight on either the left or right foot. If this...

  • Page 30: The Speed Sensor

    CALIBRATION PROCEDURE Remove the Safety Key. Press and hold down the Start and Speed A buttons and replace the Safety Key. Continue to hold the Start and Speed A key until the window displays"Factory settings", then press the Enter key. You will now be able to set the display to show Metric or English...

  • Page 31: Treadmill Warranty

    Products that do not have a warranty registration card on file at SOLE. SOLE reserves the right to request proof of purchase if no warranty record exists for the product. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDINGTHE...
