Brickcom CB-100A Series User Manual page 60

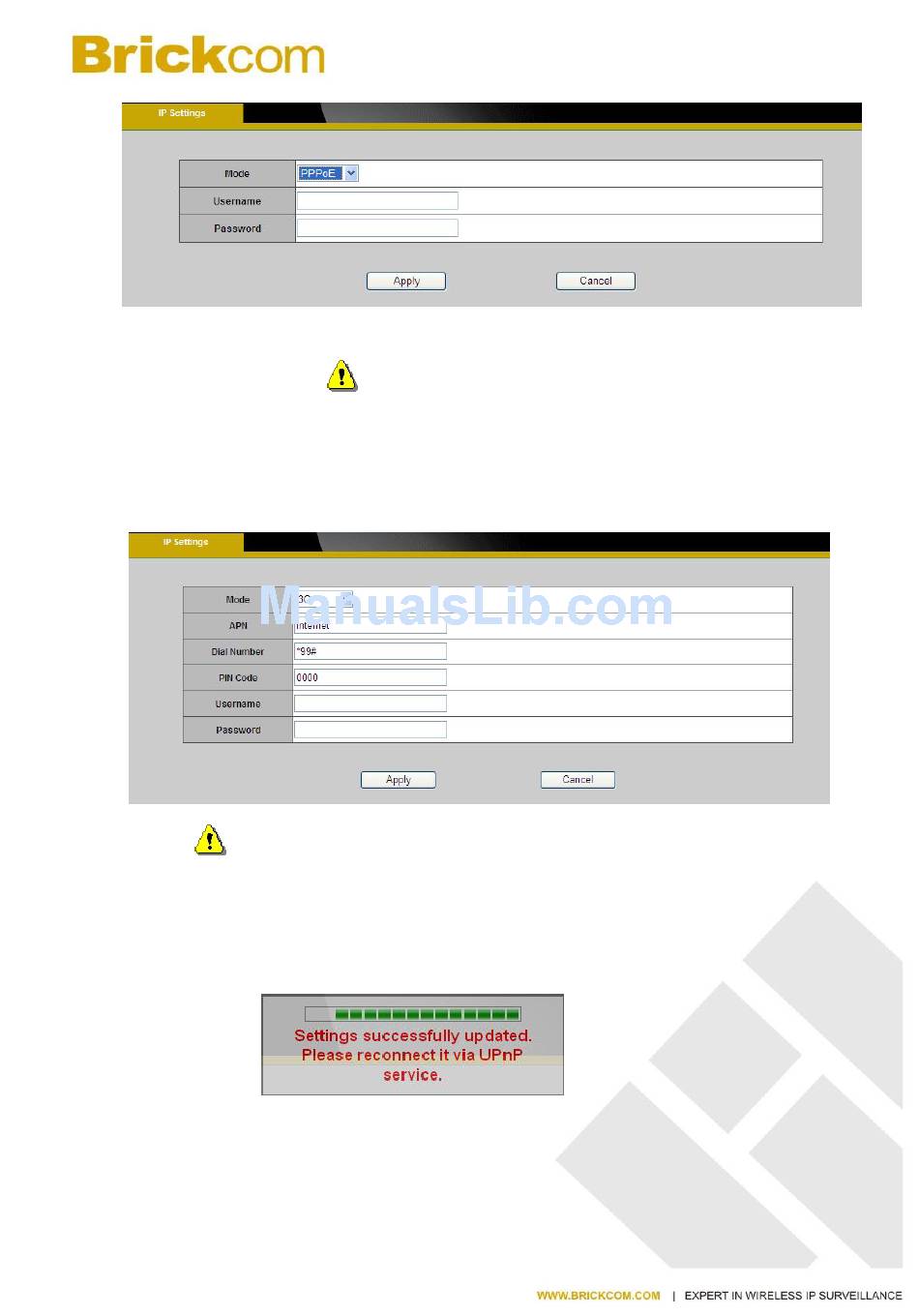

3. PPPoE (Point-to-point over Ethernet): Use this mode if connecting to the Internet
through a DSL Line.
by an Internet Service Provider. Enter the user name and password provided by the ISP.
Click Apply to apply settings or Cancel to cancel changes.
4. 3G(*) – Use this option if using a 3G SIM card to transmit video/audio surveillance
over a 3G network
NOTE - This function is only available for GOB models.
a. Enter the APN (Access Point Number), Dial Number, PIN Code, User
Name and Password provided by the ISP.
b. Click Apply to apply the settings.
displayed if the 3G settings were successfully applied.
c. Before disconnected the wired connection with the network camera,
obtain the IP Address by opening EasyConfig. The 3G connection IP
Address will be displayed in the IP Address column.
NOTE - To utilize this feature, it requires an account provided
- 53 -
The message below will be
