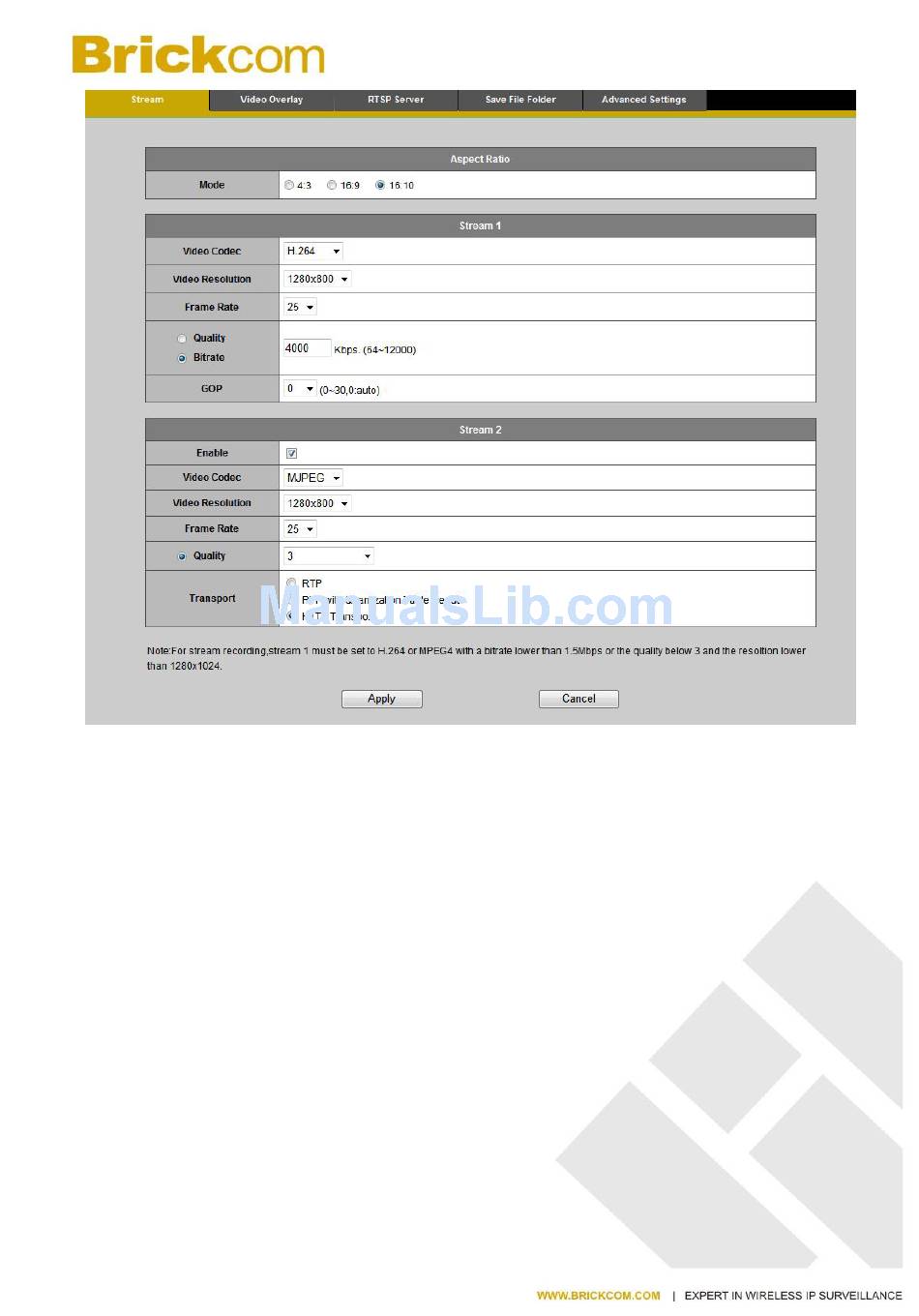

Stream 1 & Stream 2
Aspect Ratio – Select the width to height image aspect ratio.
Video Codec - The Network Camera offers three choices of video codec standards for
real-time viewing: H.264, MPEG-4 and MJPEG.
Video Resolution - Select from the drop-down menu to choose the best resolution
recording settings.
Frame Rate - Select the frame rate from drop-down menu. When H.264 or MJPEG is
selected, the frame rate ranges from 1 to 30 fps. When MPEG-4 is selected, the frame
rate ranges from 1 to 15 fps. Set a higher frame rate for smoother video quality.
Video quality and bit rate - Choose either "quality" or "bitrate" to control the video quality
with video codec at H.264 or MPEG4. Only "quality" can be chosen when video codec at
MJPEG is selected. Set the bitrate higher for a better video quality.
Transport-
RTP: The Real-time Transport Protocol (RTP) defines a standardized packet format
for delivering audio and video over IP networks.
