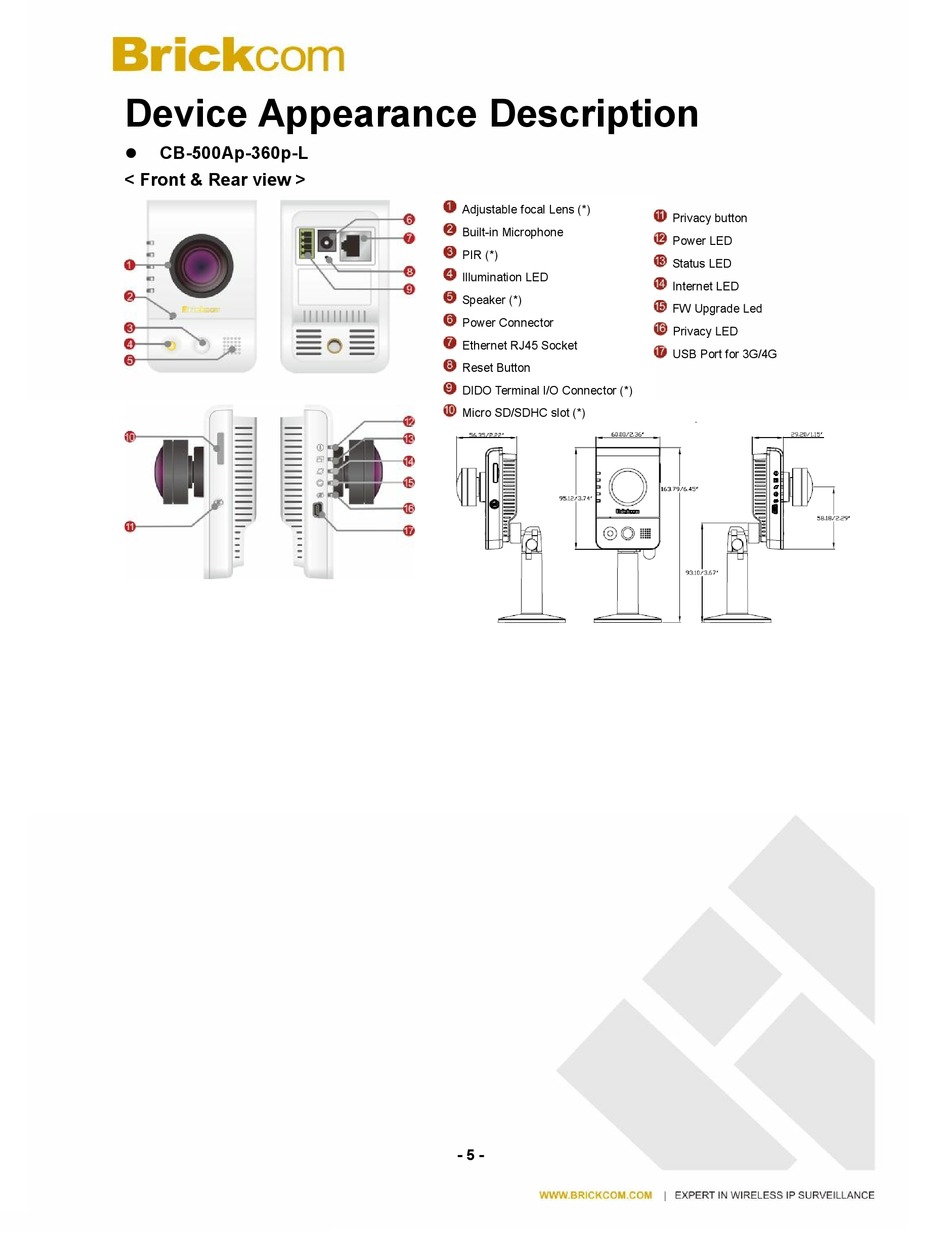

Device Appearance Description
CB-500Ap-360p-L
< Front & Rear view >
Adjustable focal Lens (*)
Built-in Microphone
PIR (*)
Illumination LED
Speaker (*)
Power Connector
Ethernet RJ45 Socket
Reset Button
DIDO Terminal I/O Connector (*)
Micro SD/SDHC slot (*)
- 5 -
Privacy button
Power LED
Status LED
Internet LED
FW Upgrade Led
Privacy LED
USB Port for 3G/4G
