Brickcom CB-100A Series User Manual page 45

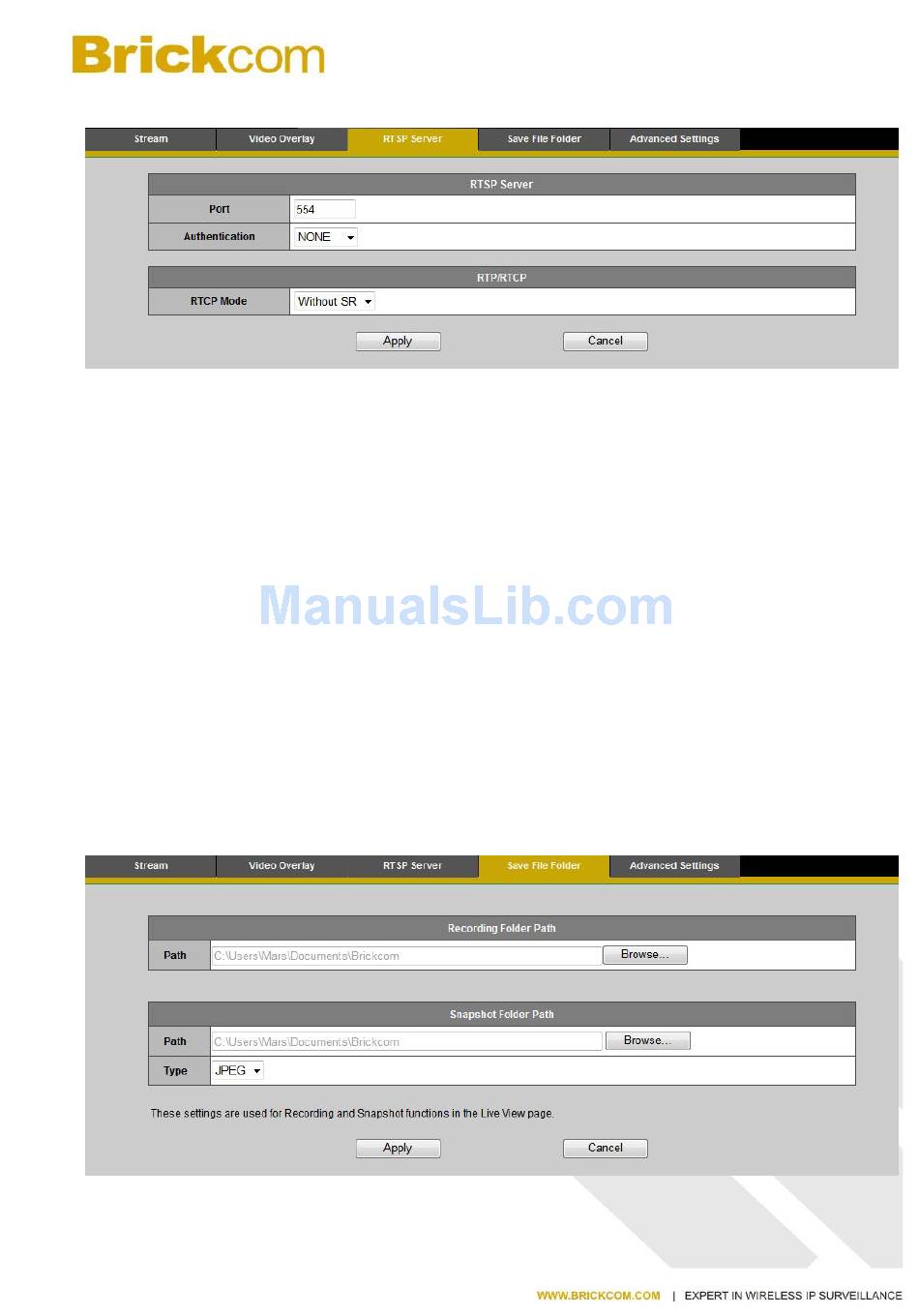

RTSP Server
To utilize RTSP authentication, the user must first set a password for the camera. RTSP
(Real-Time Streaming Protocol) controls the delivery of streaming media. By default the port
number is set to 554.
Authentication - Depending on the network security requirements, the camera provides two
types of security settings for streaming via RTSP protocol: NONE and DIGEST.
If DIGEST authentication is selected, user credentials are encrypted using MD5 algorithm, thus
providing better protection against unauthorized access.
RTP/RTCP-
RTCP without SR - RTCP without SR (Sender Report) is the default option. Under this
option, audio and video received from the IP camera are played immediately and independent
of each other.
RTCP with SR - RTCP with SR option allows synchronization between video and audio on
live viewing. Choose this option if audio and video become unsynchronized.
Click Apply to apply settings or Cancel to cancel changes.
Save File Folder
- 38 -
