CyberData 011049 Installation Quick Reference

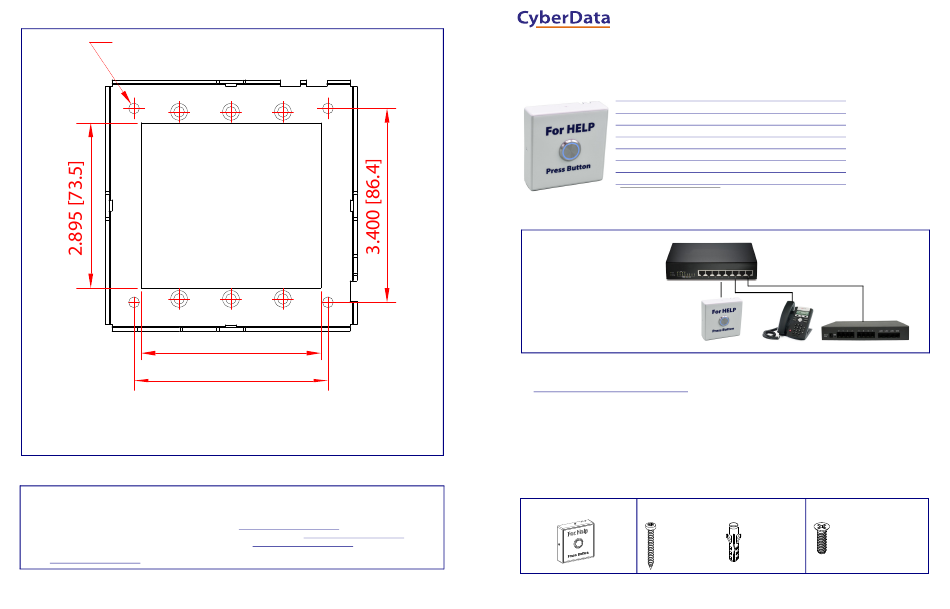

Maximum Recommended Wall Cutout Dimensions
Ø0.189 [Ø4.8]
(10 Places)
Drawing Scale: 1 : 1
3.150 [80.0]
3.400 [86.4]
Dimensions are in Inches [Millimeters]
Printing Instructions: Before printing this document or the mounting template, check the following:
• Make sure that the Paper Size setting of the printer is set to 11"x 17".
• Make sure that the Page Scaling setting of the printer is set to NONE (with no scaling [1:1])
• Make sure that the Fit to Paper Size setting of the printer is not selected.
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601 Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2024, CyberData Corporation, ALL RIGHTS RESERVED
"Fit to Paper Size" is Not Selected
OPEN
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931549C Quick Reference
Installation Quick Reference

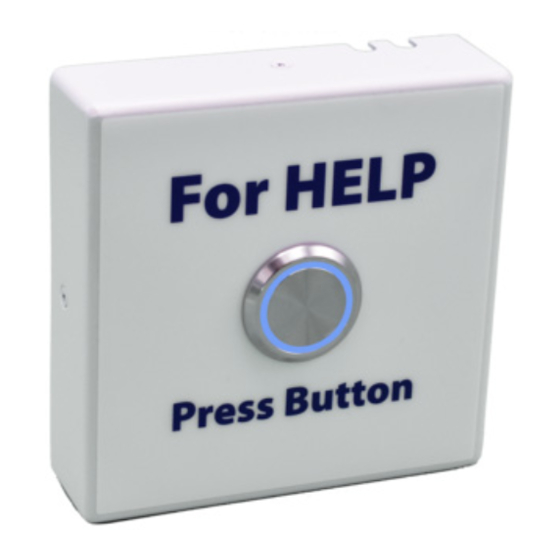

SIP Call Button
The IP Endpoint Company
SIP Compliant
011049
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
802.3af Compliant Ethernet Switch
Getting Started
• Download the SIP Call Button Operations Guide PDF file, from the SIP Call Button product page at:
https://www.cyberdata.net/products/011049
• Create a plan for the locations of your SIP Call Buttons.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) SIP Call Button Assembly (1) Wall Mounting Kit
(4) #6 x 1.25 inches
Sheet Metal Screw
Quick Reference
Factory Default Setting
DHCP
192.168.1.23
admin
admin
255.255.255.0
192.168.1.1
SIP Call Button IP Phone IP PBX Server
(1) Gang Box Mounting Kit
(4) #6-32 x 0.625-inch
(4) #6 Ribbed Plastic
Flat-Head Machine Screw
Anchor
931549C © 2024, CyberData Corporation, ALL RIGHTS RESERVED
