CyberData RS232 Specification Sheet

4-Port PoweredUSB 2.0 & RS232

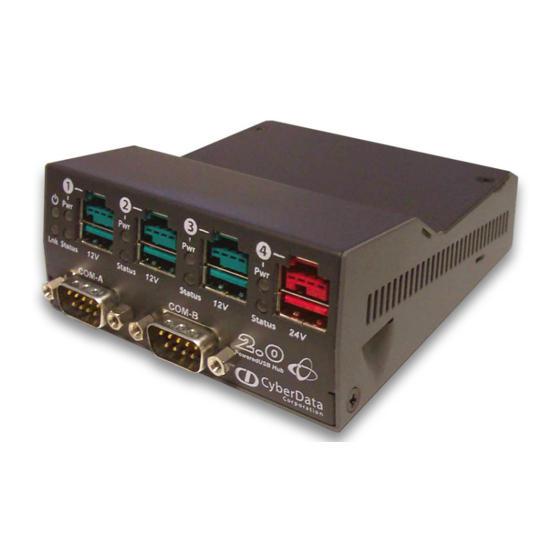

The CyberData PoweredUSB and RS-232
Hub enables PoweredUSB connectivity in a
standard PC configuration. This hub
solution also provides legacy serial device
connectivity via two RS232 ports allowing
you to use existing RS-232 devices until
they are ready for migration.
CyberData's hub solution is the centerpiece
of a simple migration strategy for your entire
POS environment.
Translation Technology
CyberData's USB 2.0 translation technology
allows each PoweredUSB port to
communicate to the host PC at 2.0 speeds,
even if the attached device is only USB 1.1
compliant.
Features
Dell Retail Integrator compatible

Adds 2 Full-Featured RS232 ports

Adds 4 PoweredUSB ports

Translation convertor on all USB ports

One +24 volt at 2.3A

Three +12 volt at 1.5A each
Short circuit and overcurrent protected

Designed to support multi-function

printer power requirements
Peripheral power control by stand-by/wake

commands
External LED to show USB port status

Two year warranty

CyberData Corporation
Innovative Concepts in Peripheral Connectivity.
CyberData Corporation
External Hub
Compatibility
IBM PC Windows 98SE, 2000, & XP compatible.
Apple Computer & Linux also supported.
USB Standard 2.0 is fully supported.
External Power Supply
24V, 120W power supply included.
PoweredUSB & RS232 External Hub Specifications
PoweredUSB Ports
PoweredUSB Power Output*
(Standard)
RS232 Ports
External LEDs
Power Input
Regulatory Compliance
Warranty
Part Number
*All ports support standard "A" type +5V USB connection.
4
1 @ 24V 2.3A
3 @ 12V 1.5A each
2 DB9M with power option
Power, link & status
24VDC
FCC Class B, UL 60950-1, CE
2 year limited
010845
930160A
