VoIP Zone Controller Mounting Template
© 2009 CyberData Corporation ALL RIGHTS RESERVED
930108B
Quick Reference
Installation Quick Reference

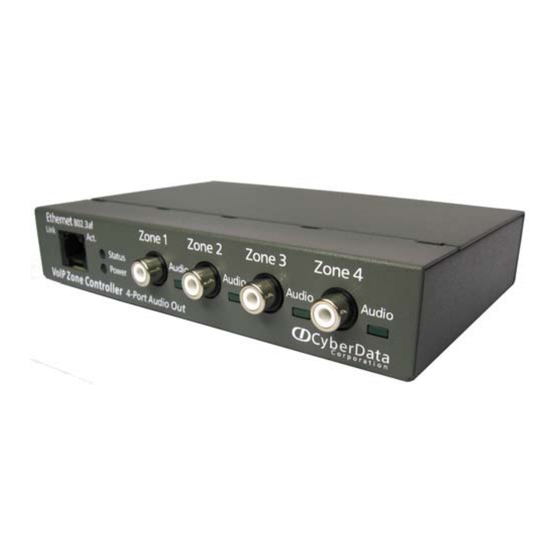

VoIP Zone Controller:
4-Port Audio Out
Sip Compliant
The VoIP Zone Controller is a PoE-enabled, single SIP-endpoint enabling user defined paging zones through a line-out
connection to legacy analog amplifiers connected to existing legacy analog paging speakers. SIP compliant IP-PBX's can
now interface with existing legacy analog paging speaker installations.
Product Specifications
Regulatory Compliance
FCC Class A, UL 60950, CE
Power Requirement
PoE or +48VDC
LAN Speed
10/100 Mbps
Protocol
SiP compliant
Part Number
010881
Dimensions
6.11"L x 4.05"W x 1.15" H
Weight
1.2 lbs.
Getting Started
Be sure that you have received all the parts described in the
●
Download the VoIP Zone Controller - 4-Port Audio Out Operations Guide at:
●
http://www.cyberdata.net/support/download.html or go to www.cyberdata.net—>Support—>
FAQs, Drivers, Utilities & Manuals—>FAQs, Product Drivers & Documentation
Parts List
(1) VoIP Zone Controller - 4-Port Audio Out
(2) #6 Mounting Anchors
Quick Reference
Parts List
section.
(1) Mounting Template (see the last page)
(1) Mounting Kit
(2) #6 x 1 1/2" Screws
930108B
© 2009 CyberData Corporation ALL RIGHTS RESERVED
Advertisement
Related Manuals for CyberData VoIP Zone Controller
Summary of Contents for CyberData VoIP Zone Controller
- Page 1 4-Port Audio Out Sip Compliant The VoIP Zone Controller is a PoE-enabled, single SIP-endpoint enabling user defined paging zones through a line-out connection to legacy analog amplifiers connected to existing legacy analog paging speakers. SIP compliant IP-PBX's can now interface with existing legacy analog paging speaker installations.
- Page 2 All VoIP Zone Controller settings are restored to the factory defaults, and the unit reboots. Mounting (optional) and Setting Up the VoIP Zone Controller: 4-Port Audio Out You have the option to use the mounting template Step 2 on the last page of this document to mark, and then drill two 5/32”...
