DISHMACHINES
The "Ventless" option is a Heat Recovery Condensation
Removal System:
Captures and distributes normally exhausted heat from the
wash/rinse tank, using this FREE energy to pre-heat cold water
prior to feeding the booster heater. Water entering the booster
heater has been pre-heated, reducing the energy cost to bring
booster temperature to required 180 degrees, potentially saving
THOUSANDS of $ in operational costs.
NO VENT HOOD REQUIRED: Saves THOUSANDS $ on installation.
CMA Dishmachines 12700 Knott Street Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: 714-895-2141 • www.cmadishmachines.com
Printed in the U.S.A.
CMA reserves the right to modify specifications or discontinue models without prior notification.
Features:
eplaces need for independent vent hood.
Final rinse valve receives cold water (41-65
through "heat recovery system", providing nearly cost free
heating capabilities for water supplied to the booster heater,
which reduces the recovery time for the booster heater.
Heat recovery system captures water vapor from the
wash & rinse cycle, and condenses it to heat the incoming cold
water & evacuate the steam from the wash chamber.
Door-actuated start.
Safe-T-Temp feature assures 180
every cycle.
12kW electrical booster heater.
Booster-safety thermostat.
6kW wash tank heater.
Low max. 0.89 US gallons of water usage per rack.
Minimum 90-second cycle. (60 second wash/rinse & 30 second
steam evacuation)
40 racks per hour (based on 90-second cycle).
Fully automatic cycle for easy operation.
Water level safety control.
Maximum clearance for dishes is 17-1/2".
All Stainless Steel construction.
Wash tank screens, which filter recirculating wash water,
prevent soil from entering spray arms.
3-door feature for straight or corner applications.
Automatic heat exchange condenser wash-down feature.
Rinse PRV supplied (Pressure Regulating Valve).
Field convertible from three phase to single phase.
Simple, rugged durability that you expect from CMA.
Door Safety Interlock System (DSI) assures that doors remain
locked throughout the entire cycle, allowing the HR system to
evacuate the vapor from the machine.
Available Options:
Alternative electrical available for export
Stainless steel dishtables
Dual power supply connections

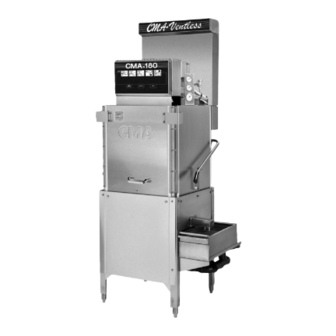

CM -180-VL
High Temperature
3- Door Single Rack
Dishwasher
F) that is processed
0
0 F sanitizing rinse
U L
C US
R
LISTED
COMMERCIAL
DISHWASHER
864T
