CMA Dishmachines CMA-180VL-FL Quick Setup Instructions

CMA-180VL-FL
Quick Setup
Instructions
STEP
1
8"
WALL
DRAIN
Connect a 2" drain pipe (not supplied) from scrap
accumulator to floor or wall drain.
STEP
2
HOT WATER INLET
Connect dishmachine to hot water source 120°F -
140°F.
STEP
3
COLD WATER INLET
Connect cold water inlet (min 41°F and max 65°F).
(Review other side for details).
STEP
4
3 PHASE OR SINGLE
FOR SINGLE PHASE
L1
L2
L3
3 Phase: Connect power supply wires, L1, L2 and L3
to the appropriate terminals marked L1, L2 and L3 on
the power block. Important: If one of the three wires
has higher voltage it must be inserted as L-2.
PN: 10130.17
FLOOR DRAIN
1
CONNECTION
STEP
5
208/240
PHASE
L1 AND L3
R e m o v e t h e p l a s t i c p l u g t o i n s t a l l t h e d e t e r g e n t
f i t t i n g ( p r o v i d e d b y y o u r d i s p e n s e r s u p p l i e r ;
C M A d o e s n o t s u p p l y ) .

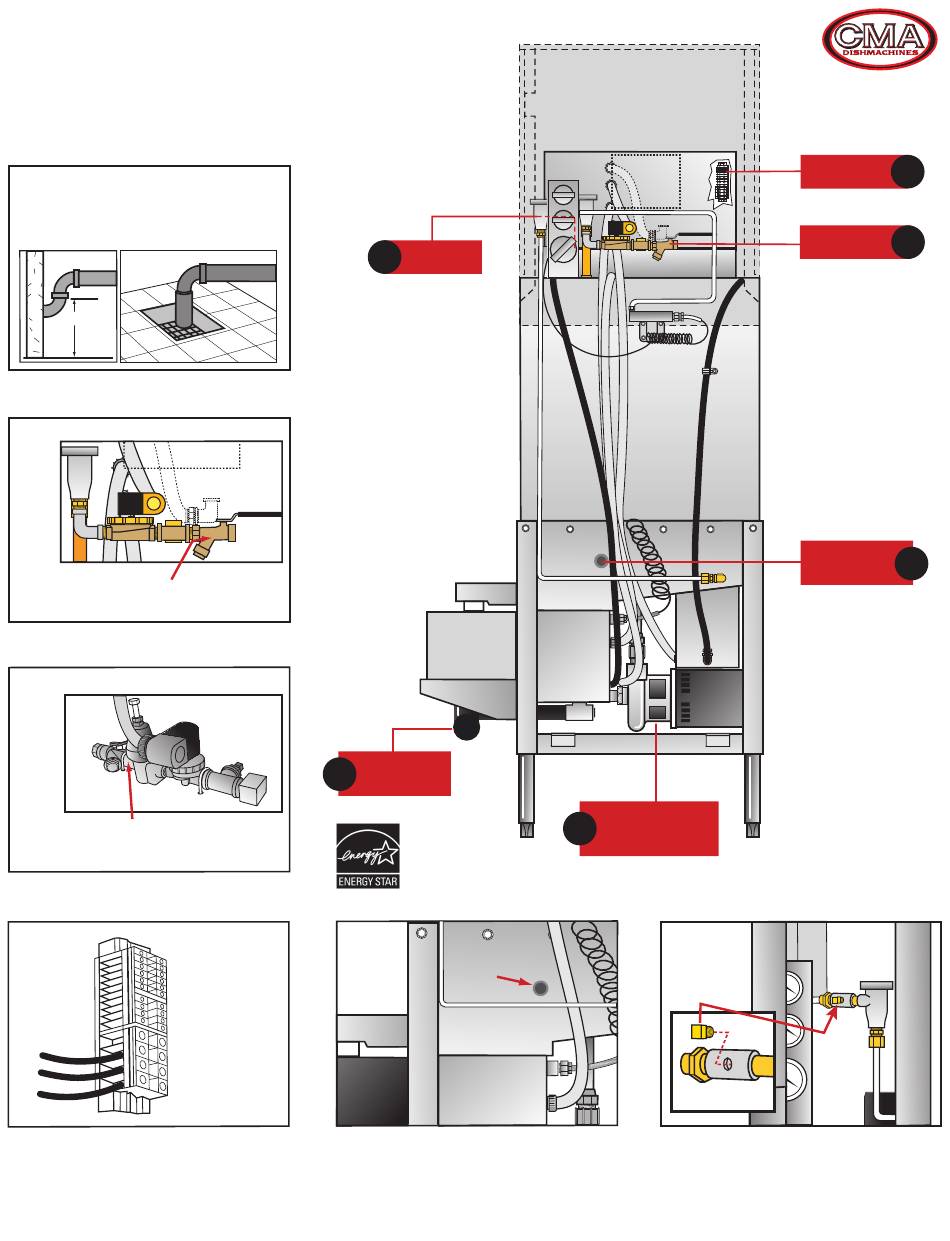

CMA-180VL-FL
REAR VIEW
6 MIXING
CHAMBER
DRAIN
PLASTIC
PLUG
COLD WATER INLET
3
LOCATED ON FRONT
OF MACHINE
STEP
6
Remove the plug from the mixing chamber and install
the rinse injection fitting (rinse injection fitting
provided by your dispenser supplier; CMA does not
supply).
4
POWER
BLOCK
HOT WATER 2
INLET
DETERGENT
5
FITTING INLET
WARNING: Electrical and
plumbing connections need
to be made by a licensed
service person and comply
with all Federal, State and
Local Health, Electrical,
Plumbing and Safety codes.
11-2016
