2.2.3 Connecting the Loudspeaker Amplifier

2.2.3.1 Using the Amplified Outputs
Figure 2-5
amplified outputs in low and high power mode.
Low Power Mode
Operations Guide
and Figure 2-6 illustrates how to connect the VoIP V2 Loudspeaker Amplifier and use the

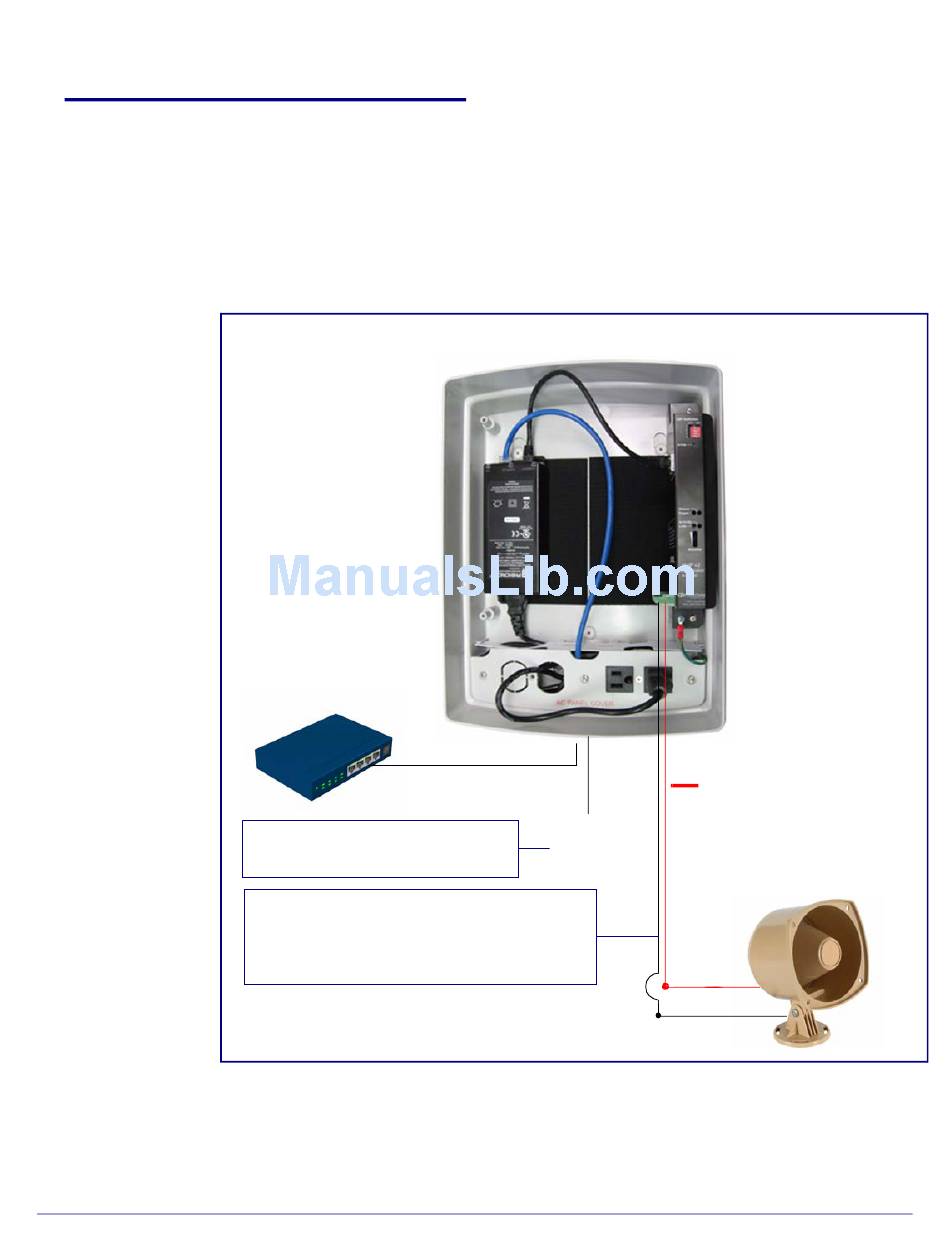

Figure 2-5. Using the Amplified Outputs—Low Power Mode
Non-PoE Ethernet Switch
*Note: This AC connection needs to
be installed by a certified electrician.
Use 16 gauge wire coming out of screw terminals.
Note: The maximum wire length from the amplifier
to the speaker should not be more than 25 feet.
Cat 5 Ethernet Cable
~
AC Input*
930375C
Installing the VoIP V2 Loudspeaker Amplifier
Loudspeaker Amplifier Setup
+
Standard 1 Speaker Configuration
(802.3af mode)
8 Ohms
-
16 gauge wire
+
CyberData Corporation
