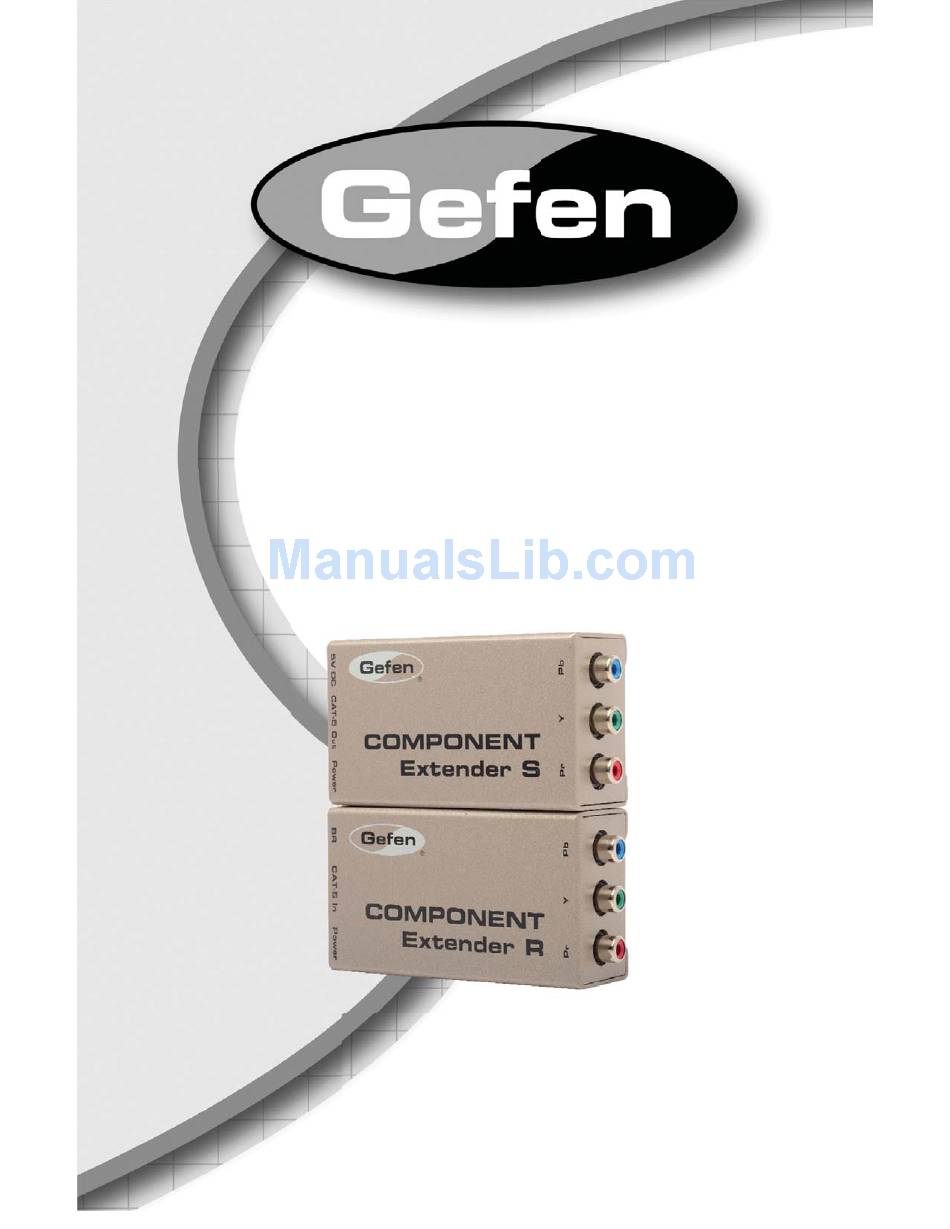

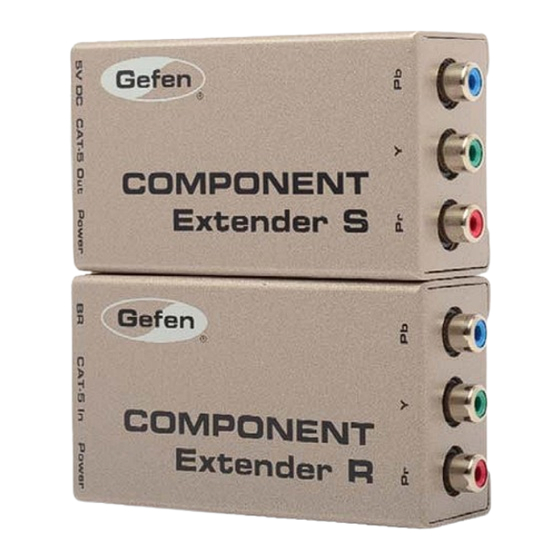

- Page 1 ® Component Extender EXT-COMP-141N USER MANUAL...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Component Extender is a trademark of Gefen, LLC © 2011 Gefen, LLC. All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Receiver Panel Layout Connecting And Operating The Component Extender Confi guring The Component Extender Network Cable Wiring Diagram Specifi cations 10 Warranty... -
Page 4: Introduction
Congratulations on your purchase of the Component Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE COMPONENT EXTENDER • The Component Extender has a maximum range of 330 Feet. • Use industry standard Category-5e (CAT-5e) cable to operate the Component Extender system. CAT-5e cable is preferred. •... -
Page 6: Features
FEATURES Features • Supports up to 1080p component video. • Power only required only on transmitter. • Plug & Play installation. • Equalizations for different CAT-5e skews. • One CAT-5e Cable for extension. • No Loss of Quality. Package Includes (1) Component Extender Sender (1) Component Extender Receiver (1) 3 RCA 6 Foot Cable... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Power LED 5V DC RJ-45 Indicator Power Port Input Back Panel Blue RCA In Green RCA In Red RCA In... -
Page 8: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Power LED Brightness RJ-45 Indicator Adjustment Port Back Panel Green RCA Red RCA Blue RCA Out... -
Page 9: Connecting And Operating The Component Extender
CONNECTING AND OPERATING THE COMPONENT EXTENDER How to Connect the Component Extender Connect the component source to the Component Extender Sending unit using the supplied 3 RCA component cable. Connect a CAT-5e cable between the Component Extender Sending and Receiving units. Connect the component display to the Component Extender Receiving unit’s output using a user supplied 3 RCA component cable. -
Page 10: Confi Guring The Component Extender
CONFIGURING THE COMPONENT EXTENDER The fi rst step in adjusting the video quality is to display text and a graphic on your monitor (i.e. desktop icons). Then set your source to the resolution that you will be using most frequently. The dip switches are used to set the focus and sharpness of the picture to the best possible setting. -
Page 11: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................350 MHz Input Video Signal ................1.2 Volts p-p Video In ................3 RCA Component Video Video out ................3 RCA Component Video Link Connector ....................RJ-45 Power Consumption ................5 Watts (max.) Power Supply ....................5V DC Dimensions ..............0.875”H x 1.625”W x 3.25”D Shipping Weight .....................3 lbs. -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
