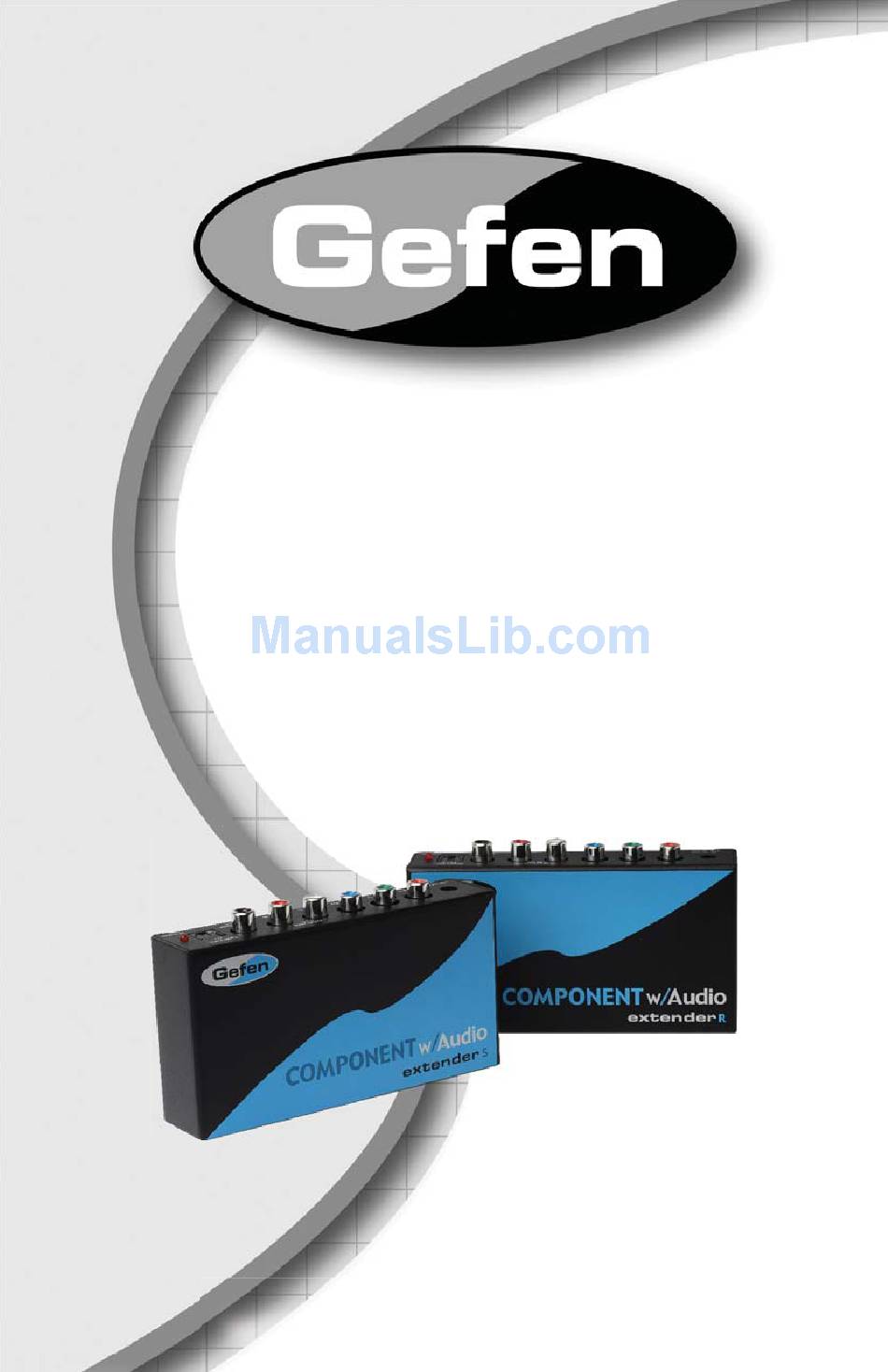

- Page 1 ® Component w/Audio Extender E X T - C O M P A U D - 1 4 1 U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Component w/ Audio Extender is a trademark of Gefen Inc. © 2009 Gefen Inc., All Rights Reserved All trademarks are the property of their respective companies.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION / HOW IT WORKS / OPERATION NOTES FEATURES PANEL DESCRIPTION PANEL DESCRIPTION INSTALLATION INSTRUCTIONS / BRIGHTNESS AND FOCUS TRIM POTS CAT5 WIRING DIAGRAM CONNECTIONS DIAGRAM SPECIFICATIONS WARRANTY... -
Page 4: Introduction / How It Works / Operation Notes
Thank you for purchasing the Component with Audio Extender by Gefen, Inc. Extend your audio and video signal using the Gefen Component Audio Extender. Place your source anywhere and extend the signal up to 1000 feet (300 meters) away. The Component Audio Extender will extend Analog Component as well as Analog Audio and Digital Audio via SPDIF or TOSlink. -
Page 5: Features
FEATURES Features • Supports up to 1080p component video • Supports analog L+R audio • Plug and play installation • Equalizations for different CAT-5 skews • One CAT-5 cable for extension Includes: (1) Component Audio Extender Sender (1) Component Audio Extender Receiver (1) 6ft. -
Page 6: Panel Description
PANEL DESCRIPTIONS Sender SPDIF Input Power Light 5V Power Indicator Supply Input Analog Audio Component Input Input Optical / Toslink Input Receiver SPDIF Output Power Light 5V Power Indicator Supply Input Analog Audio Component Output Output Optical / Toslink Output... -
Page 7: Panel Description
PANEL DESCRIPTIONS Sender CAT-5e Cable Input Receiver CAT-5e Brightness Cable Input Trim Pot Focus Trim Pot... -
Page 8: Installation Instructions / Brightness And Focus Trim Pots
INSTALLATION INSTRUCTIONS Connect the Component output of your source / receiver to the input on the Component Extender Sender Unit. Connect the audio output of your source / receiver to the input on the Component Extender Sender Unit. Connect the Component input of your display to the Component output on the Component Extender Receiver Unit. -
Page 9: Cat5 Wiring Diagram
CAT5 WIRING DIAGRAM... -
Page 10: Connections Diagram
CONNECTIONS DIAGRAM... -
Page 11: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth................350 MHz Input Video Signal..................1.2 Volts p-p Input Sync Signal................5 Volts p-p (TTL) Horizontal Frequency Range...............15-70 KHz Vertical Frequency Range................30-170 Hz Video In/Out..................3 RCA Component Audio In/Out............2 RCA Audio, 1 S/PDIF, 1 TOSLINK Link Connector..................RJ-45 Shielded Power Supply......................5V DC Power Consumption................10 watts (max.) Dimensions.................5.2”W x 1.2”H x 2.7”D... -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 13 Rev X2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
