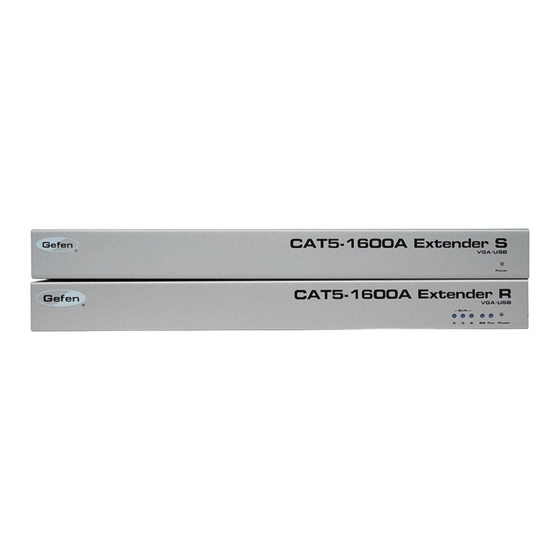

- Page 1 ® CAT5-1600A Extender EXT-CAT5-1600A User Manual www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. CAT5-1600 Extender is a trademark of Gefen LLC © 2011 Gefen LLC, All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Unit Layout Receiver Unit Layout Connecting and Operating the CAT5-1600A Extender Advanced Features 10 Network Cable Wiring Diagram 11 Specifi cations 12 Warranty... -
Page 4: Introduction
Gefen Gefen is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE OPERATING THE CAT5-1600A EXTENDER • The CAT5-1600A extends VGA and Audio up to 1000 feet (300 meters). • CAT-5 cables should not exceed 330 feet (100 meters) when extending USB. -
Page 6: Features
• Locking Power Connectors • Mounting Brackets Package Includes (1) Gefen CAT5 1600A Sender Unit (1) Gefen CAT5 1600A Receiver Unit (1) 6 ft. VGA Cable (M-M) (1) 6 ft. USB Cable (A-B) (1) 6 ft. Mini-Stereo Cable (3.5mm) (2) 5V DC Locking Power Supplies... -
Page 7: Sender Unit Layout
SENDER UNIT LAYOUT... - Page 8 SENDER UNIT LAYOUT Power Indicator This LED will turn RED once the locking power supply has been properly connected. When the CAT-5 link is established between the Sender and Receiver units, the LED will be GREEN. When the Sender unit is in Standby Mode or Power Saving Mode, this LED will be RED.
- Page 9 RECEIVER UNIT DESCRIPTIONS...
-
Page 10: Receiver Panel Layout
(available at electronics stores). Use gentle force when rotating Trim Pot controls. Turn controls in both directions if necessary to get best results. Never force a control if resistance is encountered. Gefen is not responsible for inoperable units due to broken trim pot controls. -
Page 11: Connecting And Operating The Cat5-1600A Extender
CONNECTING AND OPERATING THE GEFEN CAT5-1600A EXTENDER How to Connect the Gefen CAT5-1600A Connect the Sender Unit to the computer using the included VGA and USB cables. If audio is being used, connect the included 3.5mm mini-stereo cable between the audio source and the audio input on the Sender Unit. -
Page 12: Advanced Features
ADVANCED FEATURES Power Save Mode and Video Fine Adjustment The CAT5-1600A system has two advanced controls which are operated via controls normally hidden from the user on the underside of the Receiver. These controls allow activation / adjustment of two features: 1. -
Page 13: Network Cable Wiring Diagram
NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld-terminating the CAT-5 cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green... -
Page 14: Specifications
SPECIFICATIONS Video Amplifi er Bandwidth ............... 350 MHz Input Video Signal..................1.2 V p-p Input Sync Signal................5 V p-p (TTL) Horizontal Frequency Range ............15 kHz - 70 kHz Vertical Frequency Range ............30 kHz - 170 kHz VGA Connectors (Sender Unit) ...... (1) HD-15, male; (1) HD-15, female VGA Connectors (Receiver Unit) .......... -
Page 15: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 17 Rev A4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefenPRO.com support@gefen.com...
