Summary of Contents for Gefen EXT-COMPAUD-CAT5-142

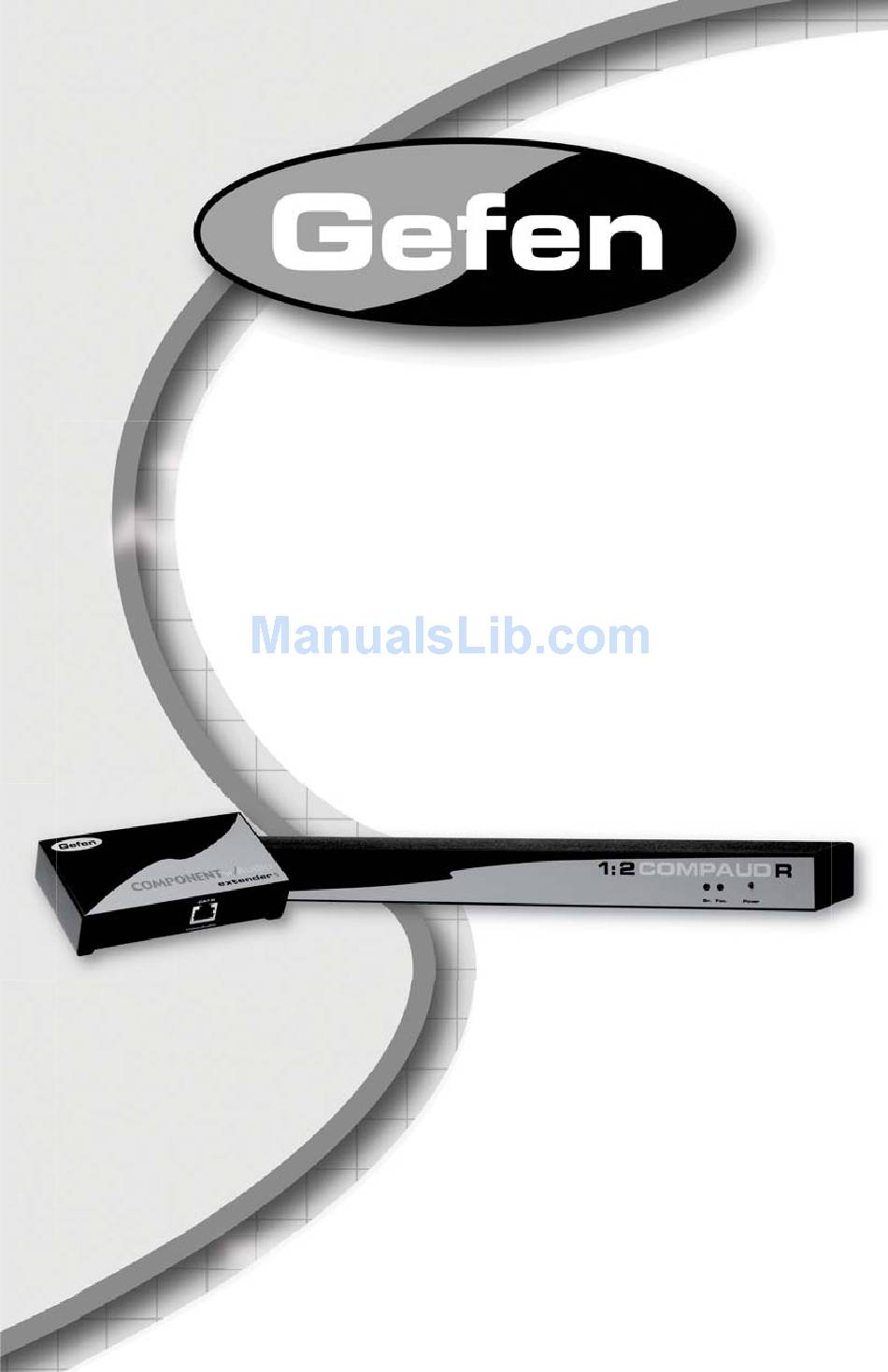

- Page 1 1:2 Component Audio Over CAT5 EXT-COMPAUD-CAT5-142 User Manual www.gefen.com...
-
Page 2: Asking For Assistance
Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:2 Component Audio Over CAT5 is a trademark of Gefen Inc. -
Page 3: Table Of Contents
Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The 1:2 Component Audio Over CAT5 Adjusting The Video Quality 10 Network Cable Wiring Diagram 11 Specifi cations 12 Warranty CONTENTS... -
Page 4: Introduction
Congratulations on your purchase of the 1:2 Component Audio Over CAT5. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:2 COMPONENT AUDIO OVER CAT5 • Use only industry standard Category-5 Enhanced (CAT-5e) cable to operate the 1:2 Component Audio Over CAT5. Cat-6 cables can also be used. • Unit will convert digital audio to analog audio and analog audio to digital audio. It will not however down-mix multichannel digital audio tracks to analog 2 channel. -
Page 6: Features
Features • Supports up to 1080p component video • Supports analog L+R audio and multichannel digital audio via optical Toslink or S/PDIF jacks • Simple plug-and-play installation • Equalizations for different CAT-5 skews • No loss of quality over long distances Package Includes (1) Component Audio Over CAT5 Sender (1) 1:2 Component Audio Over CAT5 Receiver... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS 5V DC Power Input Connect the included 5V DC power supply input this port. Once this has been properly connected the power LED will become active. 3 RCA Component Input Connect the component source device to this input. 2 RCA Analog Stereo Input Connect the source’s analog audio to this input. -
Page 9: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 10: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Brightness Trim Pot Use this adjustment Trim Pot to brighten/darken the output video signal. See page 9. Focus Trim Pot Use this adjustment Trim Pot to focus/blur the output video signal. See page 9. Power LED Indicator This LED will become active once the included 5V DC power supply is properly connected. -
Page 11: Connecting And Operating The 1:2 Component Audio Over Cat5
CONNECTING AND OPERATING THE 1:2 COMPONENT AUDIO OVER CAT5 How to Connect the 1:2 Component Audio Over CAT5 Connect the component video source to the Component Audio Over CAT5 sending unit using the supplied 3 RCA component cable. Connect audio to the Component audio Over CAT5 sender unit using either user supplied audio cables or the included audio cables. -
Page 12: Adjusting The Video Quality
ADJUSTING THE VIDEO QUALITY The 1:2 Component Audio Over CAT5 receiving unit can adjust both the brightness and focus of the reproduced video signal. Differences in cable skew and distance are factors that can affect these settings. To adjust these settings and tune the video signal please use the steps below. -
Page 13: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 14: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 350 MHz Input Video Signal ... 1.2 Volts p-p Input Sync Signal ... 5 Volts p-p (TTL) Horizontal Frequency Range ... 15-70 KHz Vertical Frequency Range ... 30-170 Hz Video In/Out ... 6 RCA component Audio In/Out ...
