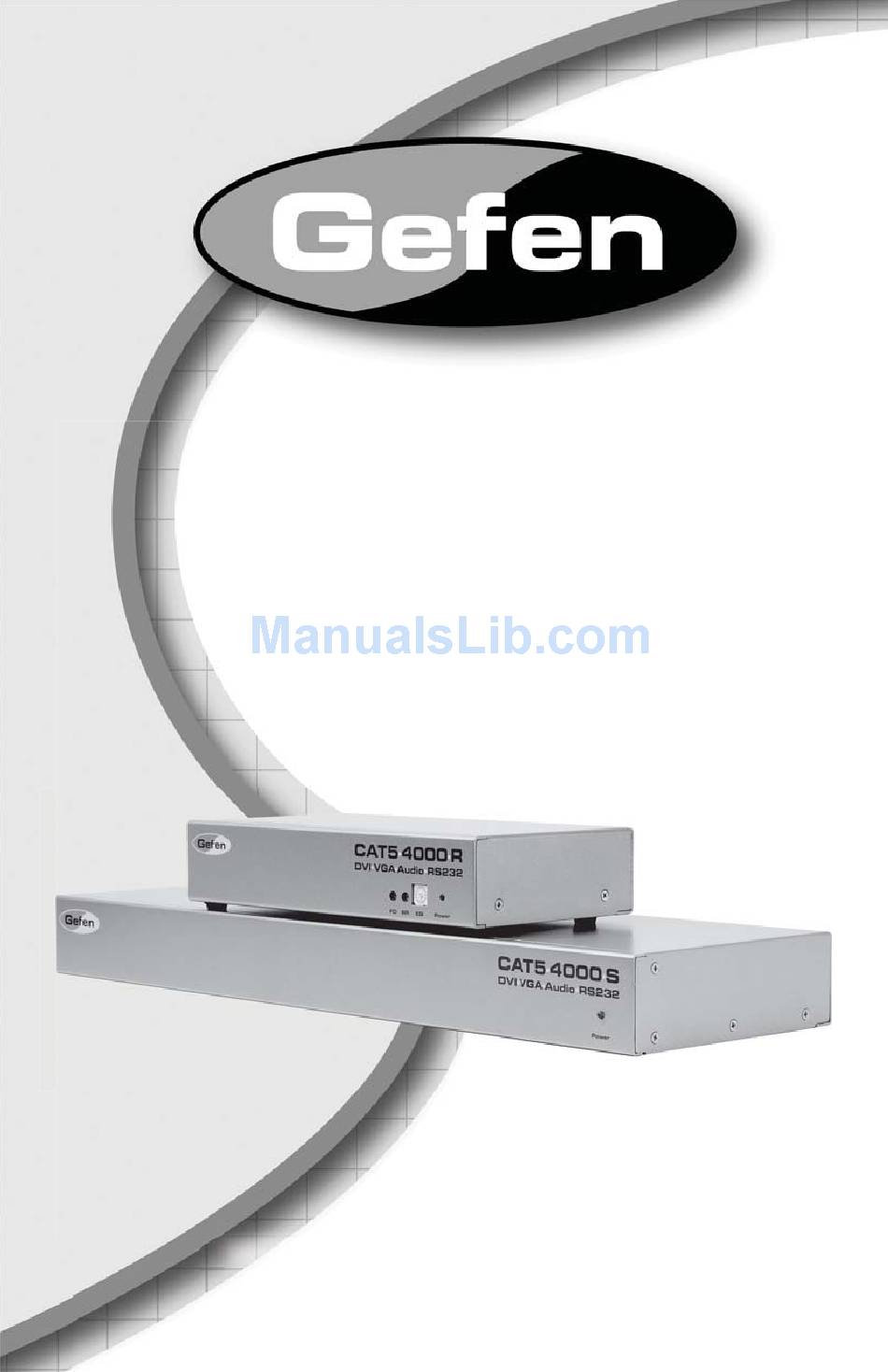

- Page 1 CAT-5 4000 Extender EXT-CAT5-4000 User Manual www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. CAT5•4000 Extender is a trademark of Gefen Inc. © 2009 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Sender Panel Descriptions Notes (Intensionally Left Blank) Receiver Panel Layout Receiver Panel Descriptions 10 Connecting The CAT5•4000 Extender Analog (VGA) 11 Connecting/Adjusting The CAT5•4000 Analog (VGA) 12 Connecting The CAT5•4000 Extender Digital (DVI) 13 Connecting/Adjusting The CAT5•4000 Digital (DVI) 14 RS-232 Serial Communication Configuration 15 Specifi... -
Page 4: Introduction
The Gefen CAT5•4000 Extender The Gefen CAT5•4000 Extender is an exceptional solution for extending up to three individual analog or digital sources to up to four remote locations. The fi rst input is mirrored to two outputs. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE CAT5•4000 EXTENDER • Maximum distance ratings: • VGA 1920x1200 60Hz is 330 feet. • DVI 1920x1200 60Hz is 130 feet. • DVI 1280x1024 60Hz is 300 feet. • VGA Supported resolutions: 640 x 480 through 1920 x 1200 •... -
Page 6: Features
FEATURES Features • Both analog and digital video signals are supported through the use of DVI-I inputs. • DVI video is transmitted digitally for zero signal loss • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • Supports DDWG standard for DVI compliant monitors •... -
Page 7: Sender Panel Layout
SENDER PANEL LAYOUT Front Panel Back Panel... -
Page 8: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Power LED Indicator This LED will become active once the included 5V DC power supply is properly connected between the unit and an open wall power socket. RS-232 Serial Communication Input 1-4 These inputs will support RS-232 serial communications devices. Only pins 2 (RX), 3 (TX), and ground (5) are supported. -
Page 9: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Channel 3 VGA/RS-232 and DVI/DDC RJ-45 Ports These RJ-45 ports connect the CAT5•4000 sender to a CAT5•4000 receiver unit using CAT-5, CAT-5e or CAT-6 cabling. When the input source is analog, the VGA/RS-232 port is used. When the input source is digital, the DVI/DDC port is used. - Page 10 NOTES (INTENTIONALLY LEFT BLANK)
-
Page 11: Receiver Panel Layout
RECEIVER PANEL LAYOUT Front Panel Back Panel... -
Page 12: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Brightness Trim Pot When using an analog input video source, use this Trim Pot to brighten/darken the output video. Please see page 11 for detailed instructions on the usage. Focus Trim Pot When using an analog input video source, use this Trim Pot to blur/sharpen the output video. -
Page 13: Connecting The Cat5•4000 Extender Analog (Vga)
CONNECTING THE CAT5•4000 EXTENDER ANALOG (VGA) How to Connect the CAT5•4000 Extender Using an Analog (VGA) Source Connect up to three analog (VGA) sources to the DVI-I inputs on the CAT5•4000 sender unit. VGA to DVI-A cables/adapters will be necessary to make these connections. -
Page 14: Connecting/Adjusting The Cat5•4000 Analog (Vga)
CONNECTING/ADJUSTING THE CAT5•4000 ANALOG (VGA) How to Connect the CAT5•4000 Extender Using an Analog (VGA) Source (Continued from the previous page) For receivers connected to channel 1, connect a amplifi ed stereo output device to the RCA analog stereo audio outputs on the receiver unit. Channels 2 and 3 do not support audio extension. -
Page 15: Connecting The Cat5•4000 Extender Digital (Dvi)
CONNECTING THE CAT5•4000 EXTENDER DIGITAL (DVI) How to Connect the CAT5•4000 Extender Using an Digital (DVI) Source Connect up to three digital (DVI) sources to the DVI-I inputs on the CAT5•4000 sender unit. DVI-D cables should be used to ensure that digital video is being transmitted. -
Page 16: Connecting/Adjusting The Cat5•4000 Digital (Dvi)
CONNECTING/ADJUSTING THE CAT5•4000 DIGITAL (DVI) How to Connect the CAT5•4000 Extender Using an Analog (VGA) Source (Continued from the previous page) For receivers connected to channel 1, connect a amplifi ed stereo output device to the RCA analog stereo audio outputs on the receiver unit. Channels 2 and 3 do not support audio extension. -
Page 17: Rs-232 Serial Communication Configuration
RS-232 SERIAL COMMUNICATION CONFIGURATION RS-232 Serial Control The RS-232 transmission from the CAT5•4000 receiver units must be confi gured for use on either channel 1 or on channels 2 and 3. By default, the CAT5•4000 units are confi gured to work on channels 2 and 3. To enable the RS-232 transmission for channel 1, a DIP (Dual In-line Package) switch must be enabled. -
Page 18: Specifications
SPECIFICATIONS Analog Video Amplifi er Bandwidth ............350 MHz Digital Video Amplifi er Bandwidth ............165 MHz VGA Video Input / Output Connectors ........DVI-I 29-pin female VGA Video Frequency Ranges ....15-70 KHz Horizontal, 30-75 Hz Vertical VGA DDC signal ................0.75V p-p TTL DVI Video Input / Output Connectors ........
