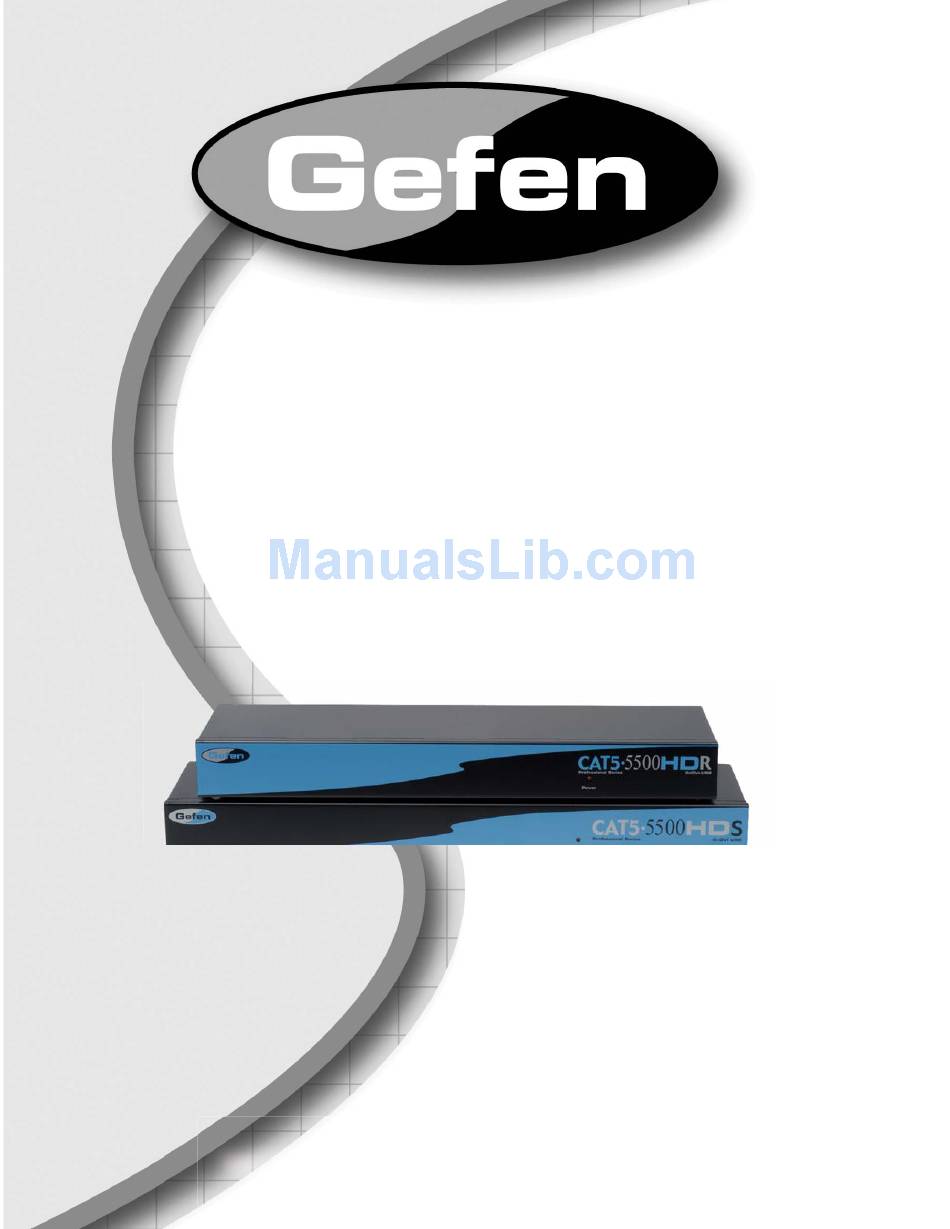

- Page 1 ® Cat5 • 5500HD E X T - C A T 5 - 5 5 0 0 H D U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The CAT5 5500HD is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved All trademarks are the property of their respective owners.`...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction and Operation Notes Features How It Works / Front Panel Layouts CAT5•5500HDS Back Panel Layout CAT5•5500HDS Back Panel Function Descriptions CAT5•5500HDR Back Panel Layout CAT5•5500HDR Back Panel Functions Descriptions Link Cable Wiring Diagrams CAT5•5500HD - Wiring Diagram Service Switch Usage Guide Troubleshooting Guide Terminology... - Page 4 INTRODUCTION Thank you for purchasing the Gefen CAT5•5500HD series The Gefen CAT5•5500HD allows users the benefi ts of extending dual DVI displays and USB beyond the desktop. In a growing number of applications, broadcast stations and production facilities need to locate a computer remotely from the keyboard, mouse, and video monitor.
-
Page 5: Features
FEATURES Features • Uses CAT-5 cable for DDC and control signals • Extends any DVI (Digital Video Interface) compliant device up to 200 ft from the computer • 200 ft extension at 1280x1024 • 150 ft extension at 1920x1200 • Saves space on your desktop •... -
Page 6: How It Works / Front Panel Layouts
HOW IT WORKS CONTENTS The CAT5•5500HD system consists of: --- (1) CAT5•5500HDS sender unit --- (1) CAT5•5500HDR receiver unit --- (2) 5 VDC power supplies --- (2) DVI cable M-M (6FT) --- (1) USB cable (6FT) --- (1) Set of Rack Ears --- (1) User Manual HOW IT WORKS The CAT5•5500HD sender unit sits next to your computer. -
Page 7: Cat5•5500Hds Back Panel Layout
CAT5•5500HDS BACK PANEL LAYOUT Sender... - Page 8 CAT5•5500HDS BACK PANEL FUNCTIONS POWER - 5 VDC external power supply CAT5 Video 1 - RJ-45 input extends DVI input 1 with CAT-5 cable CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable DVI IN 1 - DVI Input connects to your computer CAT5 Video 2 - RJ-45 input extends DVI input 2 with CAT-5 cable CAT5 USB/DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5 cable DVI IN 2 - DVI Input connects to your computer...
-
Page 9: Cat5•5500Hdr Back Panel Layout
CAT5•5500HDR BACK PANEL LAYOUT Receiver... - Page 10 CAT5•5500HDR BACK PANEL FUNC TIONS POWER - 5 VDC external power supply CAT5 USB/DDC1 - RJ-45 input extends USB and DDC1 signals with CAT-5 cable CAT5 Video 1 - RJ-45 input extends video input 1 with CAT-5 cable DVI OUT 1 - DVI output connects to the monitor 1 for local video CAT5 USB/DDC2 - RJ-45 input extends USB and DDC2 signals with CAT-5 cable CAT5 Video 2 - RJ-45 input extends video input 2 with CAT-5 cable DVI OUT 2 - DVI output connects to the monitor 2 for local video...
-
Page 11: Link Cable Wiring Diagrams
CAT5 LINK CABLE - WIRING DIAGRAM... -
Page 12: Cat5•5500Hd Wiring Diagram
CAT5•5500HD WIRING DIAGRAM... -
Page 13: Service Switch Usage Guide
SERVICE SWITCH USAGE GUIDE Gefen CAT5 Extreme products (sender and receiver) both contain a pair of service switches (also called dip switches) located underneath the unit. These service switches are used to select from sets of confi gurations that will equalize the signal to best match the conditions in your setup. -
Page 14: Troubleshooting Guide
What kind of CAT-5e cable should I be using? Solid core CAT-5e cable rated at 350 Mhz and terminated in 568a or 568b is the minimum requirement. For resolutions greater than 1280x1024 or 1080i, Gefen recommends solid CAT-6 cables. I’m getting no video on the screens, what can I check? First thing to check is make sure that the video CAT5 is linked to the other video CAT5 port and the same with the DDC ports. -
Page 15: Terminology
TERMINOLOGY CAT-5 Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair type cable designed for high signal integrity. The actual standard defi nes specifi c electrical properties of the wire, but it is most commonly known as being rated for its Ethernet capability of 100 Mbit/s. -
Page 16: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth: ................165 MHz Single Link Range: ................1080P/1920 x 1200 Input Video Signal: ..................1.2 volts p-p Input DDC Signal: ...................5 volts p-p (TTL) DVI Connector: ............DVI-I (29 pin) female (digital only) USB Input: ..................USB type "B" connector USB Output: ...............two USB type "A"... - Page 18 Rev X3 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
