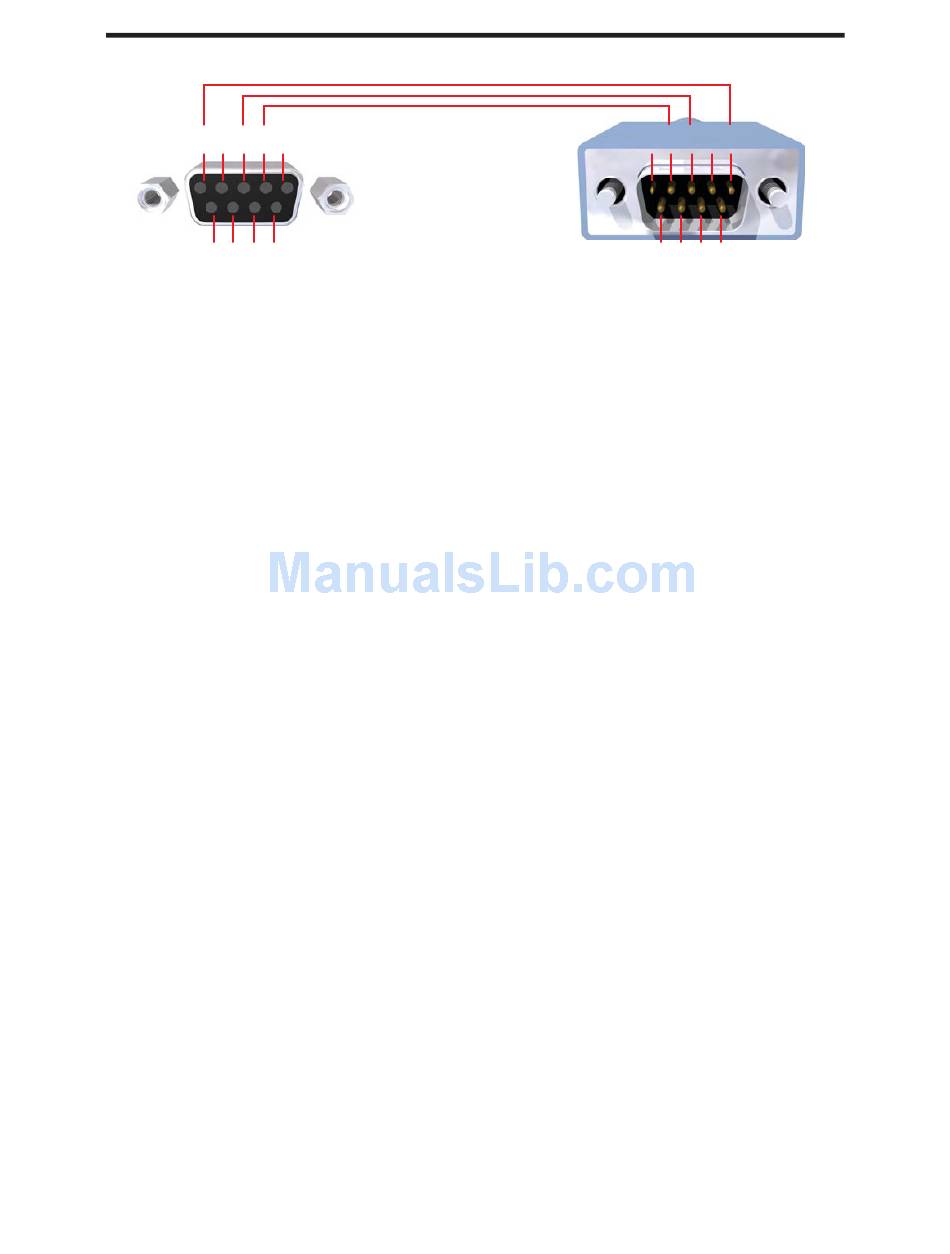

RS-232 SERIAL CONTROL INTERFACE

5 4 3 2 1

1 2 3 4 5

9 8 7 6

6 7 8 9

Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface

RS232 Settings

Bits per second ................................................................................................. 19200

Data bits .................................................................................................................... 8

Parity .................................................................................................................. None

Stop bits .....................................................................................................................1

Flow Control ....................................................................................................... None
