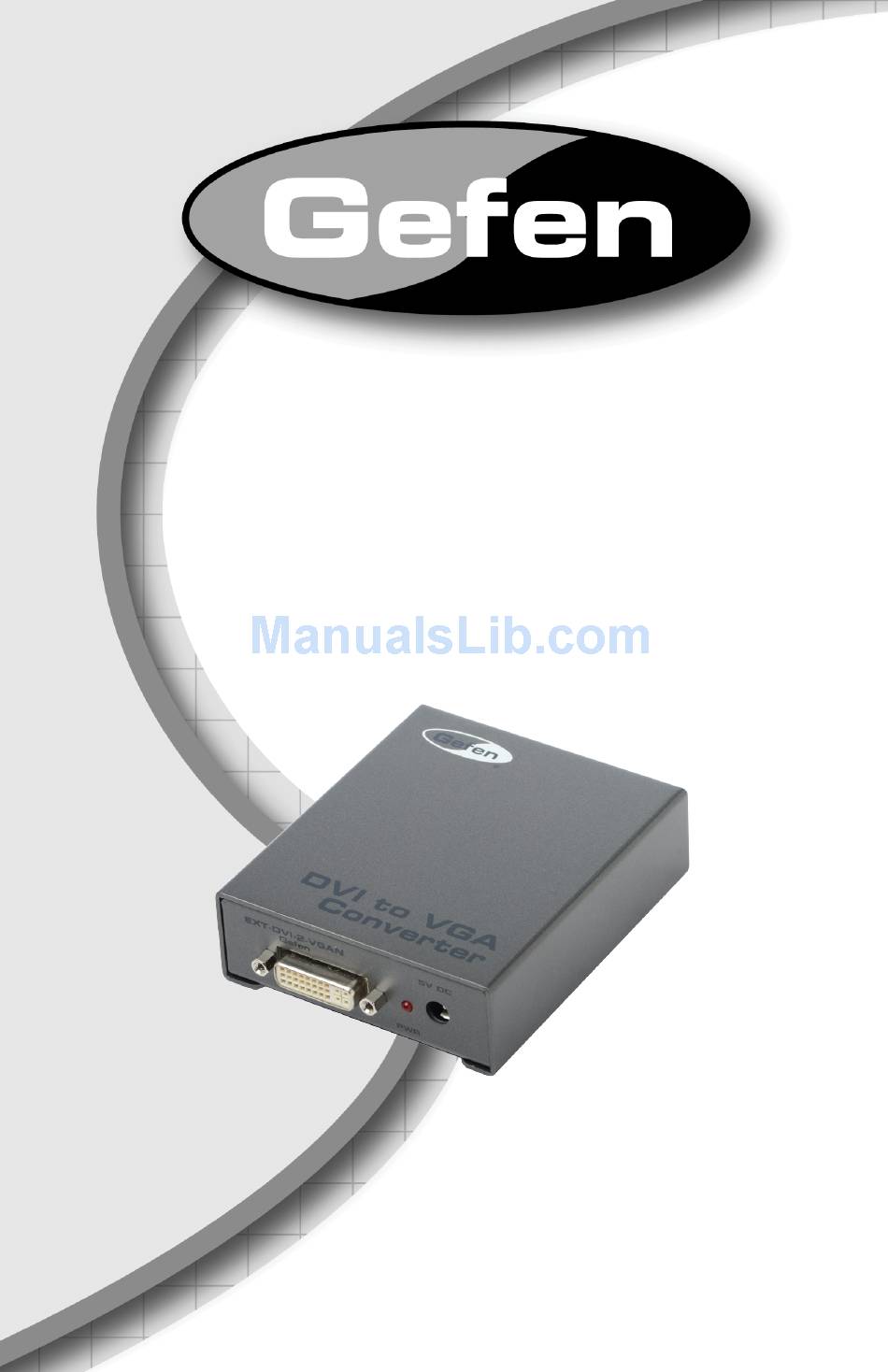

- Page 1 ® DVI to VGA Converter EXT-DVI-2-VGAN User Manual www.gefen.com...
- Page 3 Notice Gefen LLC reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. DVI to VGA Converter is a trademark of Gefen, LLC © 2013 Gefen LLC, All Rights Reserved.
-
Page 4: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting and Operating the DVI to VGA Converter Wiring Diagram EDID Management EDID Mode Selection Internal EDID Specifications Specifications 10 Warranty... -
Page 5: Introduction

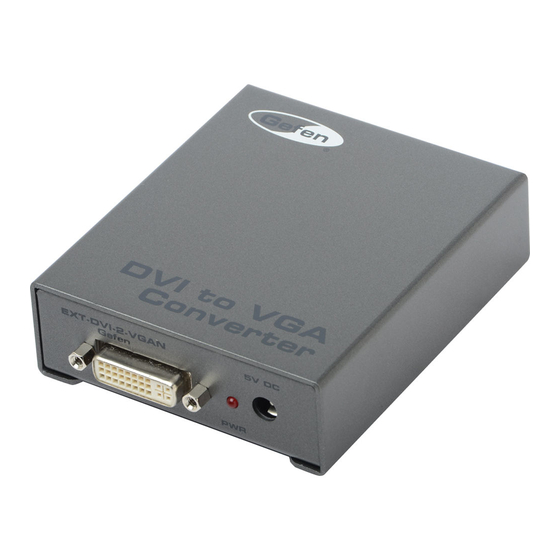

Standard Time for assistance with your A/V needs. We’ll be happy to assist you. The Gefen DVI to VGA Converter The Gefen DVI to VGA Converter is a small box solution that converts DVI-D to VGA Analog PC/RGB, enabling digital sources to connect with any display, projector or TV using VGA. -
Page 6: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN DVI TO VGA CONVERTER • The DVI to VGA Converter supports a DVI-D signal using a DVI-I connector. • The DVI to VGA Converter detect the presence of a connected monitor to determine which EDID will be used. -
Page 7: Features
Supports VESA resolutions up to 1920x1200 @ 60 Hz. • EDID Management for rapid integration of sources and display devices. Package Includes (1) Gefen DVI to VGA Converter (1) 6 ft DVI cable (M-M) (1) 5V DC Power Supply (1) Quick-Start Guide... -
Page 8: Panel Layout
PANEL LAYOUT Front Back... -
Page 9: Panel Descriptions
PANEL DESCRIPTIONS DVI In Connect a digital DVI (DVI-D) source to this port. This LED will turn bright red once the included 5V DC power supply has been properly connected to the unit and the locking power supply has been connected to an available electrical outlet. -
Page 10: Wiring Diagram
DVI to VGA Converter will turn bright red indicating that the unit is powered. Power on the VGA monitor and the DVI source. Wiring Diagram for the DVI to VGA Converter DVI CABLE VGA CABLE DVI Source Converter VGA Display EXT-DVI-2-VGAN Attention: This product should always be connected to a grounded electrical socket. -
Page 11: Edid Management
EDID MANAGEMENT EDID Modes External EDID Move the EDID switch to the Ext position to use the EDID in the display. Connect the source and display to the VGA to DVI Converter, then power on the unit. EDID switch set to External EDID Internal EDID Move the EDID switch to the Int position to use the Internal EDID. -
Page 12: Internal Edid Specifications
EDID MANAGEMENT Internal EDID Specifications The table below lists the resolutions and timings within the Internal EDID: Video Data Block Video Data Block 1920x1080p @ 59.94/60 Hz (native) 1920 x 1200 @ 60 Hz 1920 x 1080i @ 59.94/60 Hz (native) 1600 x 1200 1920 x 1080i @ 50 Hz 1280 x 1024 @ 60/75 Hz... -
Page 13: Specifications
SPECIFICATIONS Video Bandwidth..................165 MHz Input Video Signal................1.2 Volts p-p Input DDC Signal................5 Volts p-p (TTL) DVI Connector.............DVI-I 29-pin, female (digital only) VGA Connector.................HD-15, female Power Supply....................5V DC Power Consumption...............2.5 Watts (max.) Operating Temperature................0 ~ 40 ° Dimensions................3” W x 3.75” H x 1” D Shipping Weight....................2 lbs. -
Page 14: Warranty
If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 16 Rev B2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed or CE compliant power supplies.
