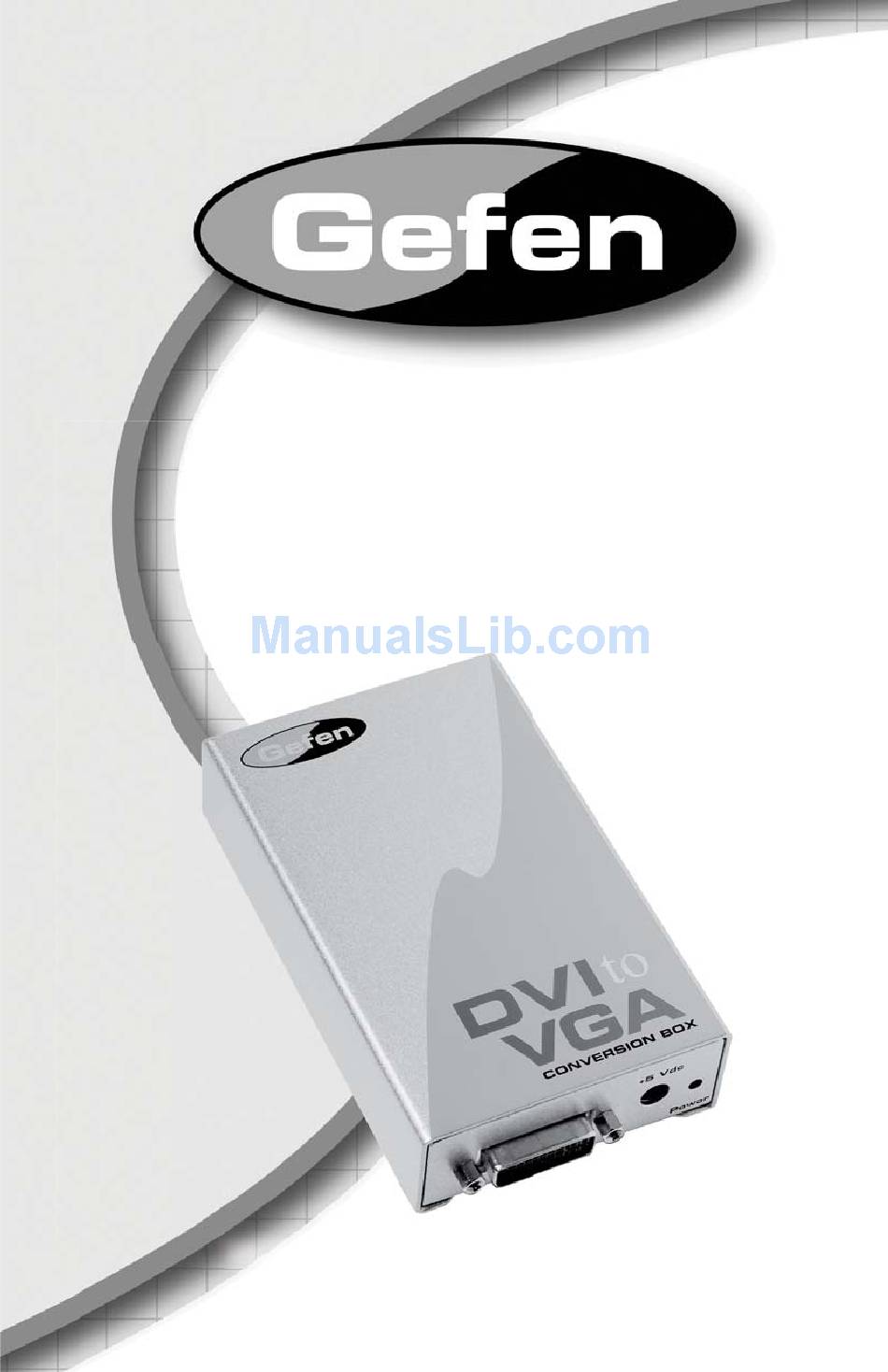

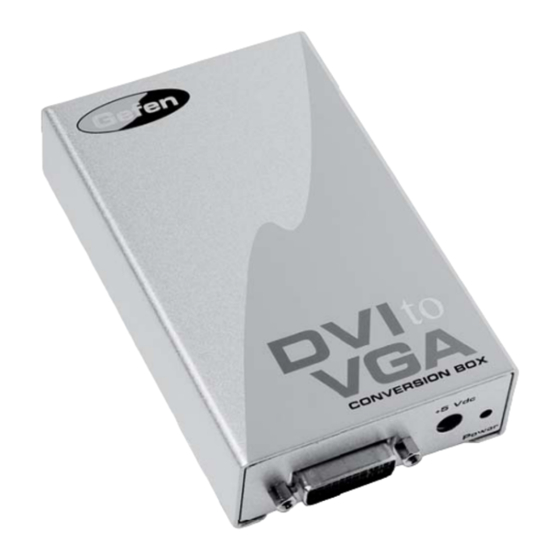

- Page 1 DVI To VGA Converter EXT-DVI-2-VGA User Manual www.gefen.com www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI To VGA Converter is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Operation Notes Features Panel Layout Connecting And Operating The DVI To VGA Converter Specifi cations Warranty CONTENTS... -
Page 4: Introduction
Congratulations on your purchase of the DVI To VGA Converter. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
The digital to analog converter in the DVI to VGA conversion box will handle any resolution, but the default EDID stored in the unit is 1600x1200@60hz. If you did not select an EDID at the time of purchase and you require a different EDID, please contact Gefen Technical Support. -
Page 6: Features
Features • Connects computers with DVI-D connectors to analog SVGA monitors or projectors • Maintains up to 1920 x 1200 x 60hz resolution • Supports DDWG standard for DVI monitors Package Includes (1) DVI to VGA Conversion Box (1) 6 Foot DVI Cable (M-M) (1) 5V DC Power Supply (1)User’s Manual FEATURES... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel DVI Input 5V DC Power Input Back Panel VGA Output... -
Page 8: Connecting And Operating The Dvi To Vga Converter
EDID stored in the unit is 1600x1200@60hz. If you did not select an EDID at the time of purchase and you require a different EDID, please contact Gefen Technical Support. DVI To VGA Converter. -
Page 9: Specifi Cations
SPECIFICATIONS DVI Bandwidth ...165 MHz VGA Bandwidth ...350 MHz Input Video Signal ...1.2 Volts p-p Input DDC Signal ...5 Volts p-p (TTL) Maximum Single Link Range ...1920 x 1200 DVI Connector Type ...DVI-I VGA Connector Type ... HD-15 Power Consumption ...2.5 Watts (max.) Power Supply ...5V DC Dimensions ...2.75”W x 1”H x 4.5”D Shipping Weight ...5 Lbs...
