Summary of Contents for Gefen EXT-HDMI-2-HDSDIS

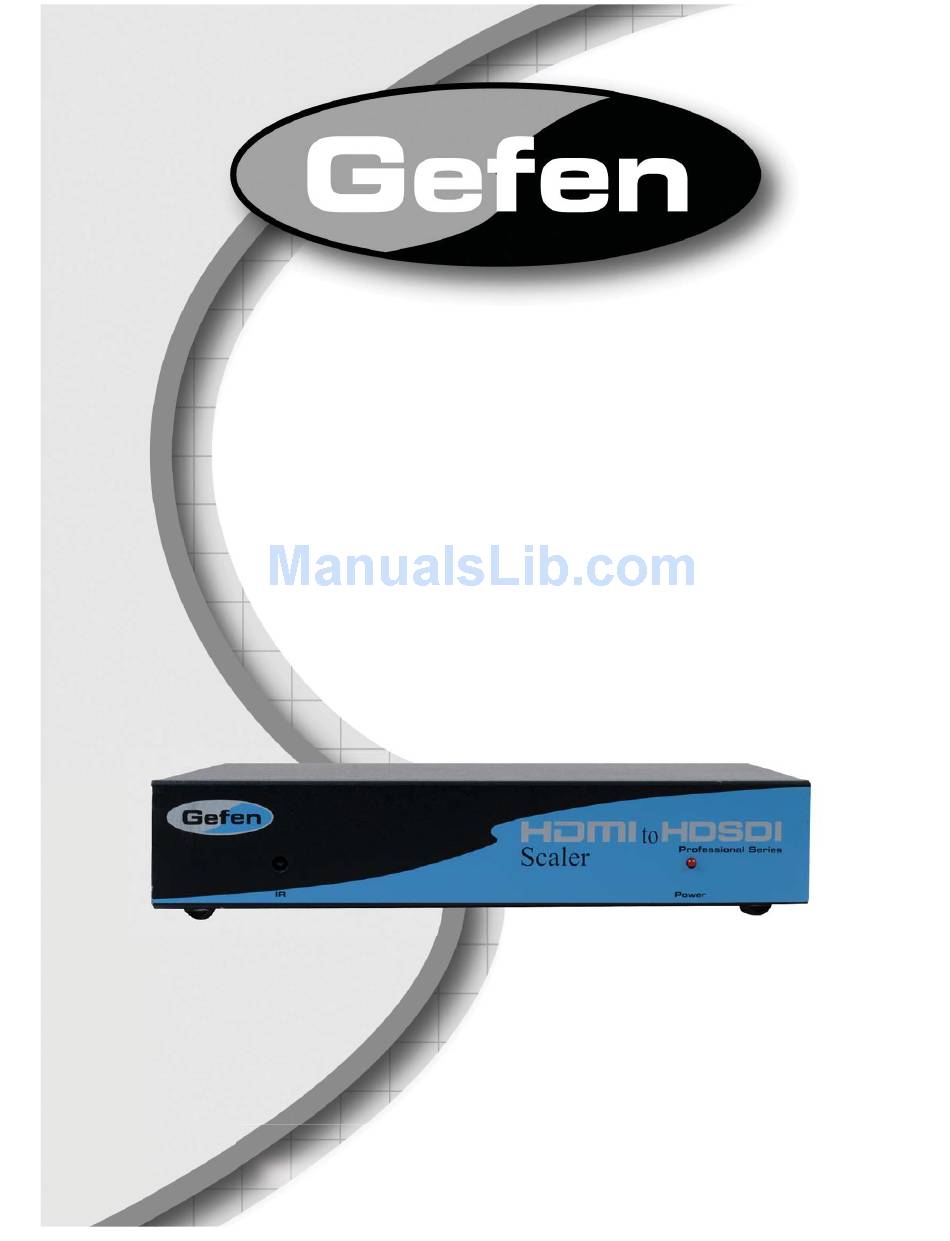

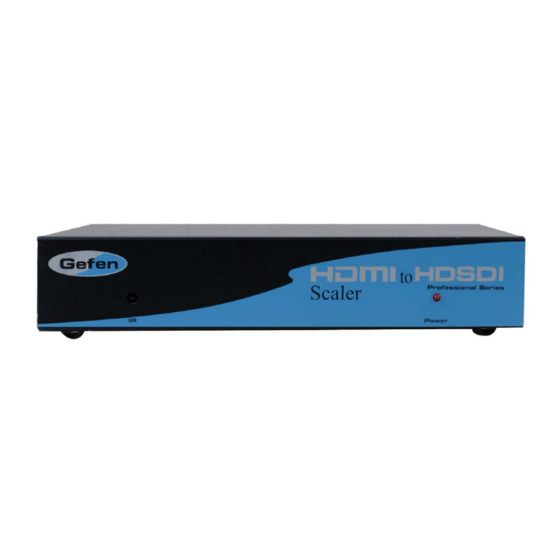

- Page 1 ® HDMI to HD-SDI Scaler E X T - H D M I - 2 - H D S D I S U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The HDMI to HD-SDI Single Scaler is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Menu Functions Menu Functions (Continued...) Supported Input/Output Resolutions Operation Notes RMT-8HDS-IR Installation Firmware Update Procedure Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION The HDMI to HDSDI Scaler is the newest revision of our HDSDI conversion line incorporating HDMI conversion scaled to your choice of SD/HDSDI Single or Dual link modes. Resolutions of up to 1080p are supported over the HDSDI link for those that want true “High Defi... -
Page 5: Features
FEATURES • 10-bit resolution for greater precision and dynamic range • Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD /SD formats • Support for all HDMI 1.2 audio formats • Advanced noise reduction and detail enhancement • Max. -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Power Indicator Infrared Eye Light Genlock HDMI Input HD-SDI Input Output 5V Power Connector RS-232 Uplink Port... -
Page 7: Menu Functions
MENU FUNCTIONS Aspect: -Full Screen: Stretches input to fi ll the Monitor. -Letter / Pillar Box: Sets the aspect ratio to fi t a letter or pillar box format. -Panoramic: Panoramic Zoom feature -Extract: Feature to magnify the signal. -Exact Size: Adjusts signal magnifi cation. -Horizontal / Vertical Position: Moves the magnifi... -
Page 8: Menu Functions (Continued
MENU FUNCTIONS (CONTINUED...) Input Menu Continued... -Clean Aperture: -Horizontal and Vertical Size: Stretch image Horizontally or Vertically -Horizontal and Vertical Position: Move image in view port Horizontally or Vertically -Remote Channel: Changes the IR code of the HDMI to HDSDI Scaler to one of 4 different settings between 0 and 3. -
Page 9: Supported Input/Output Resolutions
SUPPORTED INPUT/OUTPUT RESOLUTIONS Input Video Formats Supported: 480i 720p/50 1080p/23.98 2K-p/23.98 480p 720p/59.94 1080p/24 2K-p/24 576i 720p/60 1080p/25 576p 1035i/59.94 1080p/29.97 720p/23.98 1035i/60 1080p/30 720p/24 1080i/50 1080p/50 720p/25 1080i/50M 1080p/50M 720p/29.97 1080i/59.94 1080p/59.94 720p/30 1080i/60 1080p/60 Input Graphic Formats Supported: 640x350/85 1024x768/75 1280x1024/85... -
Page 10: Operation Notes
OPERATION NOTES On power up, the HDMI to HDSDI Scaler will automatically detect the input format of the input. The unit is controlled using the included remote. The following are the buttons for the RMT-8HDS-IR: - UP (Navigates cursor up) - LEFT (Navigates cursor left) - Enter (Accept Operation / Return to Menu) - RIGHT (Navigates cursor right) -
Page 11: Rmt-8Hds-Ir Installation
RMT-8HDS-IR INSTALLATION 1. Remove battery cover from the back of the RMT-8HDS-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 12: Firmware Update Procedure
The HDMI to HDSDI can be controlled via IR remote and through the RS-2323 Uplink port. Check the download section on our website for fi rmware updates and information on how to control this unit. Go to http://www.gefen.com/kvm/support/download.jsp to fi nd the necessary documents and fi les. -
Page 13: Specifi Cations
SPECIFICATIONS Input Video Bandwidth..................1.65 Gbps Output Video Bandwidth................2x 1.485 Gbps Maximum Input Resolution................2048x1080 Maximum Output Resolution..........1080p with Dual Link HD-SDI HDMI Connector.................type A 19 pin female SDI/HDSDI Connector..................BNC female Data Port......................Serial RS-232 Power Supply......................5V DC Power Consumption...................20 watts (Max.) Dimensions..................8.25”W x 1.75”H x 7.5”H Shipping Weight......................5 lbs. -
Page 14: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
