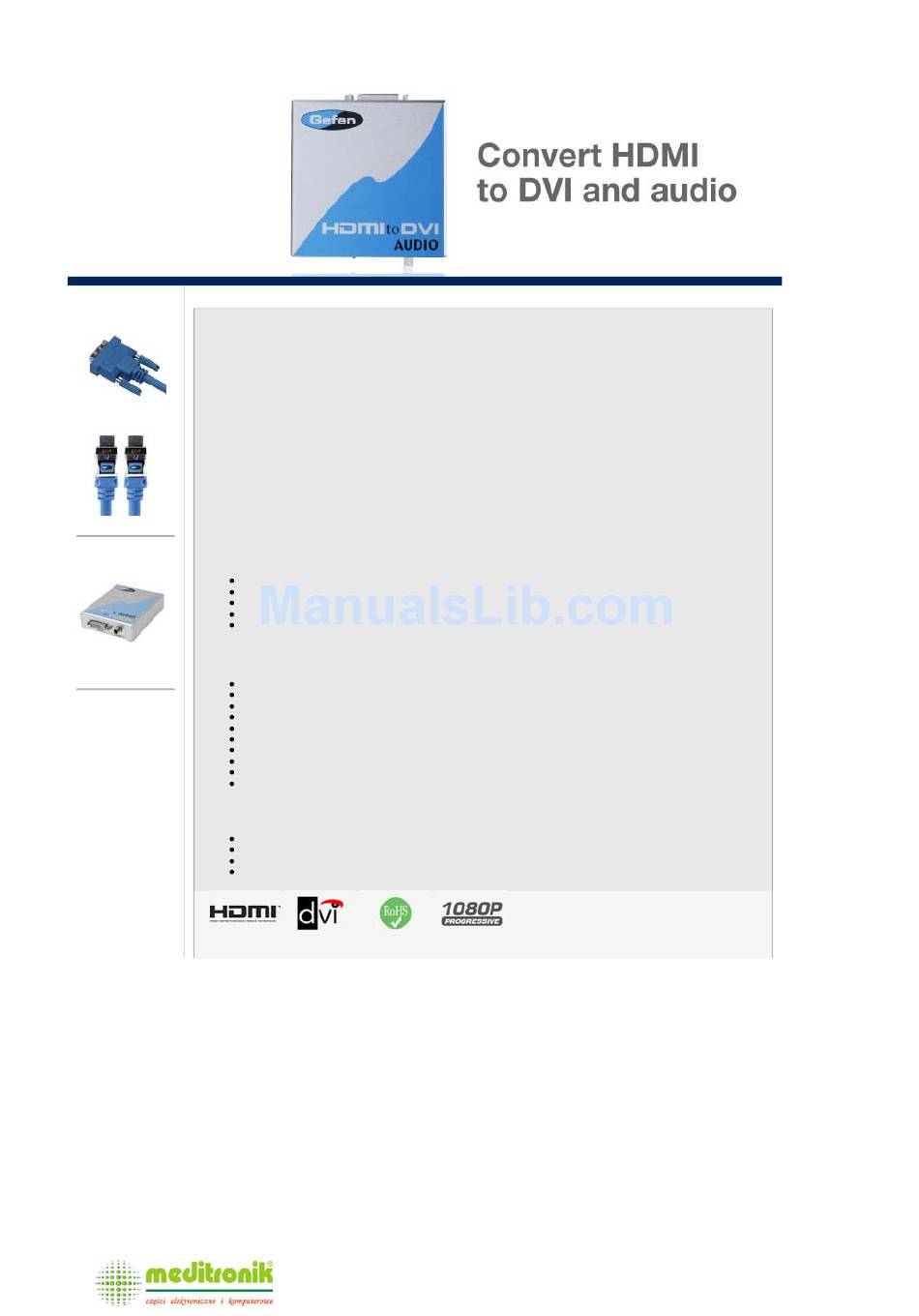

User Manual
Optional
HDMI to DVI Audio Adapter
Accessories
Convert HDMI to DVI Video and Audio
The HDMI™ to DVI Audio Adapter is a unique device that inputs digital video and digital audio into
DVI and a TOSlink output to seamlessly integrate into the modern home theater. This adapter
connects HDMI™ home theater devices or HDMI video to DVI compliant digital monitors. This
adapter also takes digital audio and decodes it onto the digital audio signal for the full DVI video
and audio effect. With the HDMI to DVI Audio Adapter home theater devices and computer systems
can be easily connected any DVI display for the full digital video and audio experience.
DVI Cables
How It Works
Simply connect the supplied HDMI™ cable to the input side of the HDMI to DVI Audio Adapter.
Then connect the TOSlink digital audio cable to the audio output of the HDMI to DVI Audio Adapter.
Then connect the DVI display or projector to the DVI output of the HDMI to DVI Audio Adapter. The
adapter decodes the digital audio and the digital video signal to generate the DVI signal and audio
output.
HDMI Cables
Features:
Related Products
Allows you to connect HDMI™ outputs to TOSlink and a DVI display
Decodes digital audio and video signal from HDMI™ video and audio
Supports resolutions up to 1080p, 2K, and 1920 x 1200
HDMI™ compliant
HDCP pass-through
Specifications:
DVI Audio to HDMI
Adapter
Video Amplifier Bandwidth: 165 MHz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
HDMI Connector: type A (19 pin) female
DVI Connector: DVI-I (29 pin) female (digital only)
Audio Connector: TOSlink: 192 kHz Performance
Power Consumption: 10 watts (max)
Power Supply: 5V DC
Dimensions: 6"W x 1"H x 4"D
Shipping Weight: 2 lbs.
Package Includes:
HDMI to DVI Audio Adapter
One 5V Power Supply
One 6 ft HDMI Cable
Users Manual
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-HDMI-2-DVIAUD
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gefen EXT-HDMI-2-DVIAUD
Summary of Contents for Gefen EXT-HDMI-2-DVIAUD
- Page 1 HDMI to DVI Audio Adapter One 5V Power Supply One 6 ft HDMI Cable Users Manual EXT-HDMI-2-DVIAUD Dystrybucja i sprzedaż: Meditronik Sp. z o.o. 02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46 http://www.meditronik.com.pl e-mail: office@meditronik.com.pl...
- Page 2 HDMI to DVI AUDIO U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. HDMI to DVI AUDIO is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the HDMI to DVI AUDIO Dip Switch Guide Specifi cations Warranty... -
Page 5: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. Introduction The HDMI™... -
Page 6: Features
FEATURES Features • Allows you to connect HDMI™ outputs to TosLINK and a DVI display • Decodes digital audio and video signal from HDMI™ video and audio • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • HDMI™ compliant •... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Power Indicator Connects to HDMI Input 5VDC power supply DVI Output TOSlink Output... -
Page 8: Connecting And Operating The Hdmi To Dvi Audio
CONNECTING AND OPERATING THE HDMI TO DVI AUDIO ADAPTER How to Connect the HDMI to DVI and Audio Adapter 1- Connect your DVI compliant monitor to the DVI female connector on the output side of the HDMI to DVI Audio Adapter. 2- Connect your HDMI source to the HDMI input on the HDMI to DVI Audio Adapter. -
Page 9: Dip Switch Guide
DIP SWITCH GUIDE The audio output can be confi gured by following the Dip switch selection as followed: Switches [4:1] Audio With all Dip Switches off EDID audio and speakers descriptor as in display's EDID (Default) With Switch 1 on Audio format: LPCM Maximum number of channels: 6 Sampling frequency (KHz): 32,44.1, and 48... -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth..................1.65 Gbps Input Video Signal...................1.2 volts p-p Input DDC Signal..................5 volts p-p (TTL) HDMI Connector................type A (19 pin) female DVI Connector...............DVI-I (29 pin) female (digital only) Audio Connector...............TOSlink: 192 kHz Performance Power Consumption..................10 watts (max) Power Supply......................5V DC Dimensions....................6”W x 1”H x 4”D Shipping Weight......................2 lbs. -
Page 11: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
