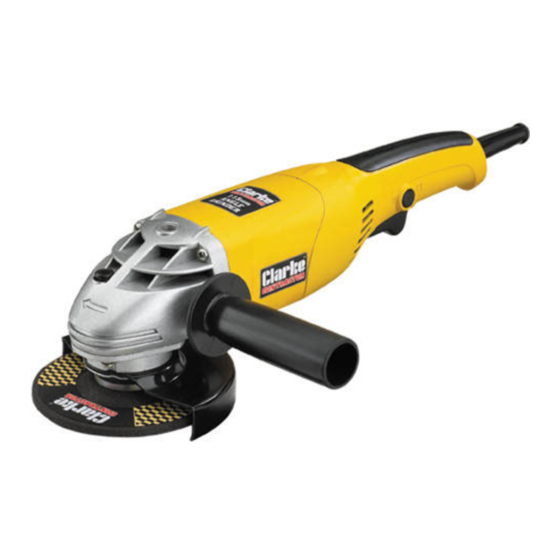

- Page 1 4½” (115mm) 4½” (115mm) ANGLE GRINDER ANGLE GRINDER Model No. CON115 OPERATING & MAINTENANCE INSTRUCTIONS GC0911...
-
Page 2: Specifications
Weight (Net) ..........2.7kg Part No............6470140 Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. -
Page 3: Table Of Contents
Thank you for selecting this CLARKE 115mm (4½”) Angle Grinder. Before attempting to use the tool, please read this leaflet thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the Angle Grinder giving you long and satisfactory service. - Page 4 ALWAYS ensure that ADEQUATE LIGHTING is available. A minimum intensity of 300 lux should be provided. Ensure that lighting is placed so that you will not be working in your own shadow. CHECK FOR DAMAGE. Before using the tool, any damaged part should be checked to ensure that it will operate properly and perform its intended function.
-
Page 5: Additional Precautions For Angle Grinders
Never allow the ventilation slots in the tool to become blocked. Do not attempt any electrical repair yourself. Consult a qualified electrician, or the Clarke Service Department on 0208 988 7400. DO NOT cut through walls or cavities before checking for hidden electrical wires or water pipes etc. -
Page 6: Electrical Connections
24. NEVER use a cutting-off wheel for side grinding. 25. ALWAYS ensure the work is properly secured or supported. 26. Do not allow flying sparks to fall on sensitive areas. Be aware of fire risks. 27. When not in use always store in a dry clean environment and out of reach of children. -
Page 7: Features
FEATURES (Ref. Fig 1) 1. ON/OFF Switch (A) The ON/OFF switch (A) is provided with a safety lock button (B). The lock button (B) must be held in before the trigger can be squeezed in to the ‘ON’ position. This is designed to prevent Fig 1. -
Page 8: Operation
2. Hand Grip A threaded hole ‘E’, on the top, left or right hand side of the gear housing, is provided so that the hand grip may be screwed in, as required, to provide left or right hand control of the tool. OPERATION IMPORTANT: DO NOT plug the tool in to the mains, unless you have ensured it is switched OFF and the guard is set to the desired position. -
Page 9: Troubleshootiing
2. Consult your Clarke dealer SPARE PARTS AND SERVICE CONTACTS For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com... -
Page 10: Spare Parts
HTCON11507 Guard Locking Screw HTCON11508 Flange Release Tool HTCON11509 The following Grinding Wheels/ Cutting Discs are available from your Clarke dealer. Metal Grinding (DPC) 115mm x 6mm thickness Part No: 6470705 Metal Cutting (DPC) 115mm x 3mm thickness Part No:...
