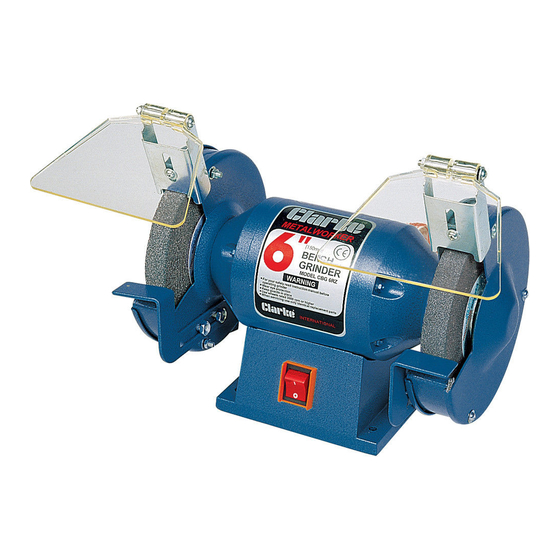

- Page 1 BENCH GRINDER MODEL NO: CBG6RZ PART NO: 6500105 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0117...
-
Page 2: Environmental Protection
INTRODUCTION Thank you for purchasing this CLARKE Bench Grinder. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite accidents 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. -
Page 4: Electrical Safety
6. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 7. Do not use the tool for any purpose than that described in this manual. -
Page 5: Grinding Stone Safety
4. When operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock. GRINDING STONE SAFETY 1. Check the speed of the grindstone before fitting to your grinder. Never use a stone with a rpm speed less than the rpm speed of your grinder. -
Page 6: Safety Symbols
4. Never use damaged or incorrect grindstones. The stone and retaining fixtures were specially designed for your grinder, for optimum performance and safety of operation. Inspect the condition of the grinding stone before use and do not use if any damage is found. 5. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 8 The items above should be supplied with the grinder. If any items are missing or damaged, please contact the Clarke dealer where you purchased the product. Position the machine in good light, and fixed to a suitable workbench using the boltholes in the machine base.
- Page 9 Fig.3. The angle for the eye shields can be adjusted to suit the operator We recommend that your Clarke Bench Grinder is secured to your workbench before operation, using the pre-drilled holes in the base. Do not overtighten the mounting bolts as this could damage the plastic base.
-
Page 10: Using Your Grinder
USING YOUR GRINDER WARNING: FRAGMENTS FROM A BROKEN/DETACHED GRINDING WHEEL CAN CAUSE INJURY. WARNING: ENSURE THAT THE WORKING POSITION ADOPTED DOES NOT CAUSE OPERATOR FATIGUE WHICH MAY LEAD TO LOSS OF CONTROL OF THE TOOL BEING GROUND. WARNING: THE STONE WILL CONTINUE TO ROTATE BRIEFLY AFTER THE OFF SWITCH HAS BEEN PRESSED. -
Page 11: General Maintenance
New grinding stones are frequently not true or in time can become grooved, glazed (built-up), out of round or otherwise mis-shapen. To correct these defects, a grinding stone dresser is available from your Clarke dealer. • ET125 Grinding Wheel Dresser - Part No:1700225... -
Page 12: Cleaning And Storage
• Replacement Dresser Wheel - Part No:1700230 • ET154 ½ Carat Diamond Tip Wheel Dresser - part No:1700329 1. If the grinding stone is new, allow it to spin for a minute with no load. Check that it is spinning straight and true. If not, it will require dressing before use. 2. -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Component Parts Diagram
COMPONENT PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Component Parts List
COMPONENT PARTS LIST Description Part No Description Part No Bolt HT6481901 Capacitor HT6481920 Washer HT6481902 Screw 3040528 Outer Cover LH HT6481903 Spring Washer 3040582 Outer Cover RH HT6481903A Flat Washer 3044576 Wheel Locking HT6481904 Tool Rest LH HT6481924 Nut LH Wheel Locking HT6481904A 24A Tool Rest RH...
