Summary of Contents for Clarke CBG6RP

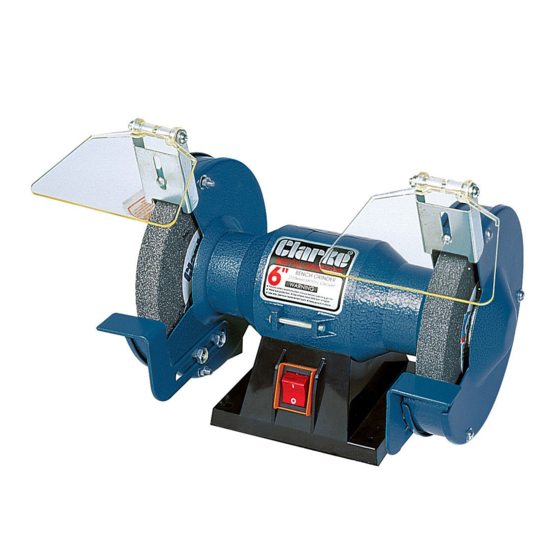

- Page 1 BENCH GRINDER MODEL CBG6RP OPERATING & MAINTENANCE INSTRUCTIONS 0101...
- Page 3 Thank you for purchasing this CLARKE Bench Grinder Before attempting to operate this machine, please read this instruction manual thoroughly and follow all directions carefully. By doing so you will ensure the safety of both yourself and others around you, and at the same time, you should look forward to it giving you long and trouble free service.
- Page 4 12. USE ONLY APPROVED REPLACEMENT GRINDING WHEELS. Contact your local dealer or Clarke International for approved replacement grinding wheels and accessories. The use of inferior accessories may cause risk of injury.
- Page 5 Note: if any parts are missing or damaged, please contact your local dealer or Clarke International for replacement. Main Body (A) - switch and power cable with plug are included. Two Eye Shields (B), each complete with:...
- Page 6 (as indicated by marking or colour code). Replacement fuse covers can be obtained from your local dealer, an electrical stockist, or CLARKE INTERNATIONAL Spare Parts Department The fuse in the plug must be replaced with one of the same rating and this...
- Page 7 Fig.3. The angle for the Eye Shields can be adjusted to suit the operator. We recommend that your Clarke Bench Grinder is secured to your workbench before operation, using the pre-drilled holes in the base. Do...
- Page 8 It will be necessary from time to time to dress the wheel to obtain a true working surface.This should be done ONLY with an approved dressing tool, which can be obtained from your CLARKE dealer, quoting Model No. GWD-1. Part No. 6501120.
- Page 9 TECHNICAL DATA Motor ................230v ~ 50hz; 1ph Speed ................2900 RPM Power Rating .............. 150Watts Wheel Size ..............150 X 20 X12.7 Mm Fuse Rating ..............5 Amps Wheels ................. 1 X Fine; 1 X Coarse Part No................ 6500520 Weight (Packed) ............
- Page 10 HT5481940 Cable Clamp HT5481919 For Spare Parts and Service,please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 e-mail as follows: PARTS: Parts@clarkeinternational.com SERVICE: Service@clarkeinternational.com...
- Page 11 PARTS DIAGRAM...
