- Page 1 33 PIECE AIR TOOL KIT MODEL NO: CAT133 PART NO: 3120147 OPERATING & MAINTENANCE INSTRUCTIONS GC0414...
- Page 2 Your tool kit has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local CLARKE dealer. IMPORTANT Please read all of the safety and operating instructions carefully before using this product.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. -
Page 4: Use Of The Cut-Off Tool
8. Do not carry out any alterations or modifications to the tool. 9. Always disconnect from the air supply when: • Performing any maintenance. • The tool is not in use. • The tool will be left unattended. • Moving to another work area. •... -
Page 5: Use Of Cutting Discs

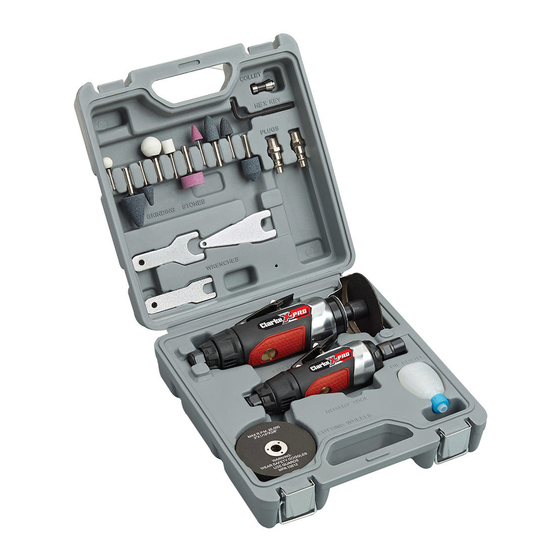

USE OF CUTTING DISCS 1. Never use cracked or chipped cutting discs. 2. Never use non-reinforced cutting discs. 3. Only use for cutting operation Never use the side of the cutting disc for grinding. 4. Never use a disc that is chipped, cracked or damaged. Fragments from a broken or damaged disc can cause serious injury. - Page 6 OVERVIEW The CAT133 Air Tool KIt includes a Die Grinder and Cut-off Tool, together with the accessories shown. When opening the case for the first time, check against the following list that all the items are present. Any damage or deficiency should be reported to your CLARKE dealer immediately.
-
Page 7: Contents Of The Kit
3/8” Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate. -
Page 8: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. • Air compressors used with the tool must comply with the appropriate European Community Safety Directives. -
Page 9: Before Use
Your air tool is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer). FITTING THE CUTTING DISC TO THE CUT-OFF TOOL 1. Ensure the disc being fitted has a speed rating greater than 20,000 rpm which is the maximum speed of the tool. - Page 10 IMPORTANT: Use the correct disc. Using an incorrect disc can cause serious injury.The use of parts other than CLARKE replacement parts may result in safety hazards, decreased tool performance and may invalidate your warranty. Replacement cutting discs are available from your Clarke dealer. (Part number 3110731).
-
Page 11: Operating The Tool
SETTING THE SPEED 1. Set the tool speed by rotating the control to one of the four settings. • The graduations on the speed control indicate the speed setting when aligned with the reference mark on the air inlet. • Speeds available for the Die Grinder are: 8300, 13000, 22000 or 25000 rpm (+/-10%). -
Page 12: Grinding Tips
1. Before use, drain water from the air tank, air line and compressor. 2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be carried out regardless of whether or not an in-line mini oiler is used. If an in- line mini oiler is not used, this procedure should be repeated after every two to three hours of use. - Page 13 If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to lubricate the internal parts.
-
Page 14: Troubleshooting
2. Motor parts worn. 2. Return to Clarke dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant. -
Page 15: Parts Diagram - Cut-Off Tool
PARTS DIAGRAM - CUT-OFF TOOL Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 16: Parts List-Cut - Off Tool
PARTS LIST-CUT - OFF TOOL Description No Description Main Housing Gasket Valve Bushing Bushing Trigger Bearing Trigger Pin Rear Motor Plate Throttle Locking Lever Spring Rotor Rotor Blade O-Ring Cylinder Exhaust Deflector Washer O-Ring Front Plate Air Regulator Bearing Set Plate Drive Shaft O-Ring O-Ring... -
Page 17: Parts Diagram - Die Grinder
PARTS DIAGRAM - DIE GRINDER Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 18: Parts List - Die Grinder
PARTS LIST - DIE GRINDER Description No Description Main Housing Air Inlet Trigger Housing Cover Lever Gasket Spring Rear Rotor Bearing Rear Plate Trigger Pin Soft Grip Rotor O-Ring Rotor Blade O-Ring Cylinder Valve Stem Rotor Collar Valve Spring Front Plate O-Ring Valve Plug Front Rotor Bearing... -
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
