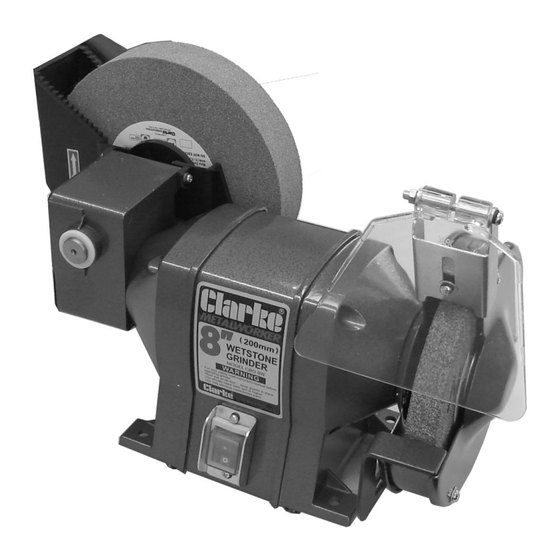

- Page 1 8” BENCH GRINDER MODEL NO: CBG8W PART NO: 6500112 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1116...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Bench Grinder. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite accidents 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. -
Page 4: Electrical Safety
6. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 7. Do not use the tool for any purpose than that described in this manual. -
Page 5: Grinding Stone Safety
tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. 4. If operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock. -
Page 6: Environmental Protection
13. Never grind on the side face of the wheel. This can cause stresses in the wheel and lead to the wheel shattering. 14. Always replace a cracked grinding wheel immediately. 15. ALWAYS check for damaged parts. Before further use any part that is damaged should be carefully checked to determine if it would operate properly and perform its intended function. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 8 Eye/Face Guard The items above should be supplied in the carton. If any are missing or damaged, please contact the Clarke dealer where you purchased the product. Position the machine in good light, and fixed to a suitable workbench using the boltholes in the machine base.
-
Page 9: Assembly And Installation
ASSEMBLY AND INSTALLATION 1. Fix the grinder to the bench using suitable screws or bolts through the holes In the base. Do not overtighten the securing screws. 2. The grinder has rubber mounting feet to help minimise vibration, and these will not be effective if compressed too tightly. -
Page 10: Using Your Grinder
The drive motor and bearings are sealed units and require no regular maintenance. Should you require assistance, contact your local Clarke service agent. The stone will wear down with use and may well go out of true. Use a dressing wheel or stone grader to correct the trueness and to remove worn, glazed grains from the stone. -
Page 11: Installing A New Grinding Stone
New grinding stones are frequently not true or in time can become grooved, glazed (built-up), out of round or otherwise mis-shapen. To correct these defects, a grinding stone dresser is available from your Clarke dealer. ET125 Grinding Wheel Dresser - Part No:1700225 Replacement Dresser Wheel - Part No:1700230 ET154 ½... -
Page 12: Cleaning And Storage
CAUSE SOLUTION Grinder will not No power supply. Check supply & rectify. operate. ON/OFF switch is Consult your CLARKE dealer. faulty. Fuse blown. Check & replace if necessary. Consult your dealer if condition persists. Motor faulty. Consult your CLARKE dealer. -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Component Parts Diagram
COMPONENT PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Component Parts List
Capacitor Bolt Connector Eyeshield Base Eyeshield Bracket Rubber Foot Spring Washer Switch When requesting spare parts from your Clarke dealer, please quote reference HT84819, followed by the number above. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
