- Page 1 BENCH GRINDER WITH LIGHT AND WIRE WHEEL MODEL NO: CBG8370LW PART NO: 6500533 OPERATION & MAINTENANCE INSTRUCTIONS LS0514...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Bench Grinder with light and wire wheel. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Power Tool Safety Warnings
POWER TOOL SAFETY WARNINGS 1) WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 4: Bench Grinder Safety Warnings
4) POWER TOOL USE AND CARE 1. Do not force the power tool. Use the correct accessories for your application. The correct power tool will do the job better and safer at the rate which it was designed. 2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. -
Page 5: Safety Symbols
8. ALWAYS check for damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine if it would operate properly and perform its intended function. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool's operation. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 7: Carton Contents

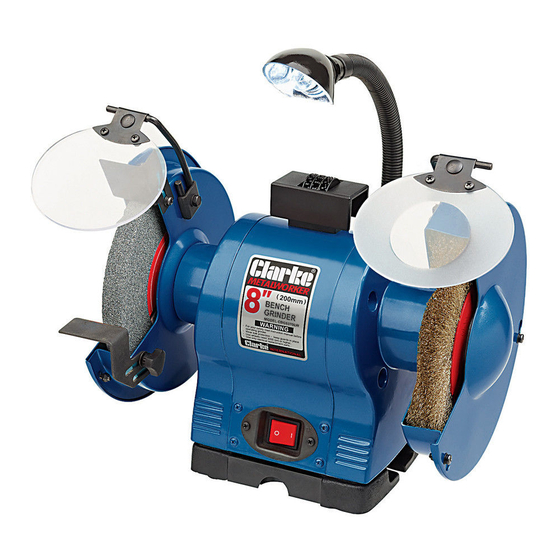

CARTON CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please contact the Clarke dealer where you purchased the bench grinder. 1 x Bench Grinder Assembly with Lamp (1 grinding wheel + 1 wire wheel attached) -
Page 8: Environmental Recycling Policy
ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE. In effect, this means that this product must not be disposed of with general household waste. -
Page 9: Installing The Spark Deflector
INSTALLING THE SPARK DEFLECTOR Fit the spark deflector to the grinding wheel guard using the screws provided. • Adjust the spark deflector frequently to compensate for wear of the wheel, keep the distance between the spark deflector and wheel as small as possible and never more than 2mm. -
Page 10: Operation
OPERATION CAUTION: KEEP ALL BYSTANDERS A SAFE DISTANCE AWAY FROM THE TOOL AND NOT IN DIRECT LINE, FRONT OR BACK OF THE GRINDER. CAUTION: ALWAYS WEAR SAFETY GLASSES NOTE: Check that there is a 1.5 mm clearance between the tool rest and the surface of the grinding wheel. -
Page 11: Sharpening Tips
SHARPENING TIPS SCISSORS If possible, take the scissors apart to make the sharpening operation easier and safer. Remove material only from the outside surface and work from the handle end of the blade towards the tip. KNIVES Remove metal equally from both faces, working from the handle end of the blade towards the tip. -
Page 12: Replacing The Wheels
(approximately 1 minute). CHANGING THE LIGHT BULB Remove the bulb by twisting it anticlockwise. Replace with an identical bulb (12V, 10W, ES10 fitting) available from the Clarke Parts Department. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
PARTS LIST Wire wheel AWCBG8370LW37 Philips Screw Assembly AWCBG8370LW01 Philips Screw AWCBG8370LW38 Left Guard Cover AWCBG8370LW02 Toothed Locking AWCBG8370LW39 I type Hex Nut AWCBG8370LW03 Washer Wheel Flange AWCBG8370LW04 Philips Screw AWCBG8370LW40 Wheel(36#) AWCBG8370LW05 Cord bushing AWCBG8370LW41 Philips Screw AWCBG8370LW06 Right Guard Inner AWCBG8370LW42 Standard Washer AWCBG8370LW07... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
