Installing the DIMM Module In The Expansion Socket

To remove the memory module, do the following:
You have just completed the memory upgrade.
4-10
1. Follow steps 1~7 in the above section, Installing the
DIMM Module In The Memory Socket .

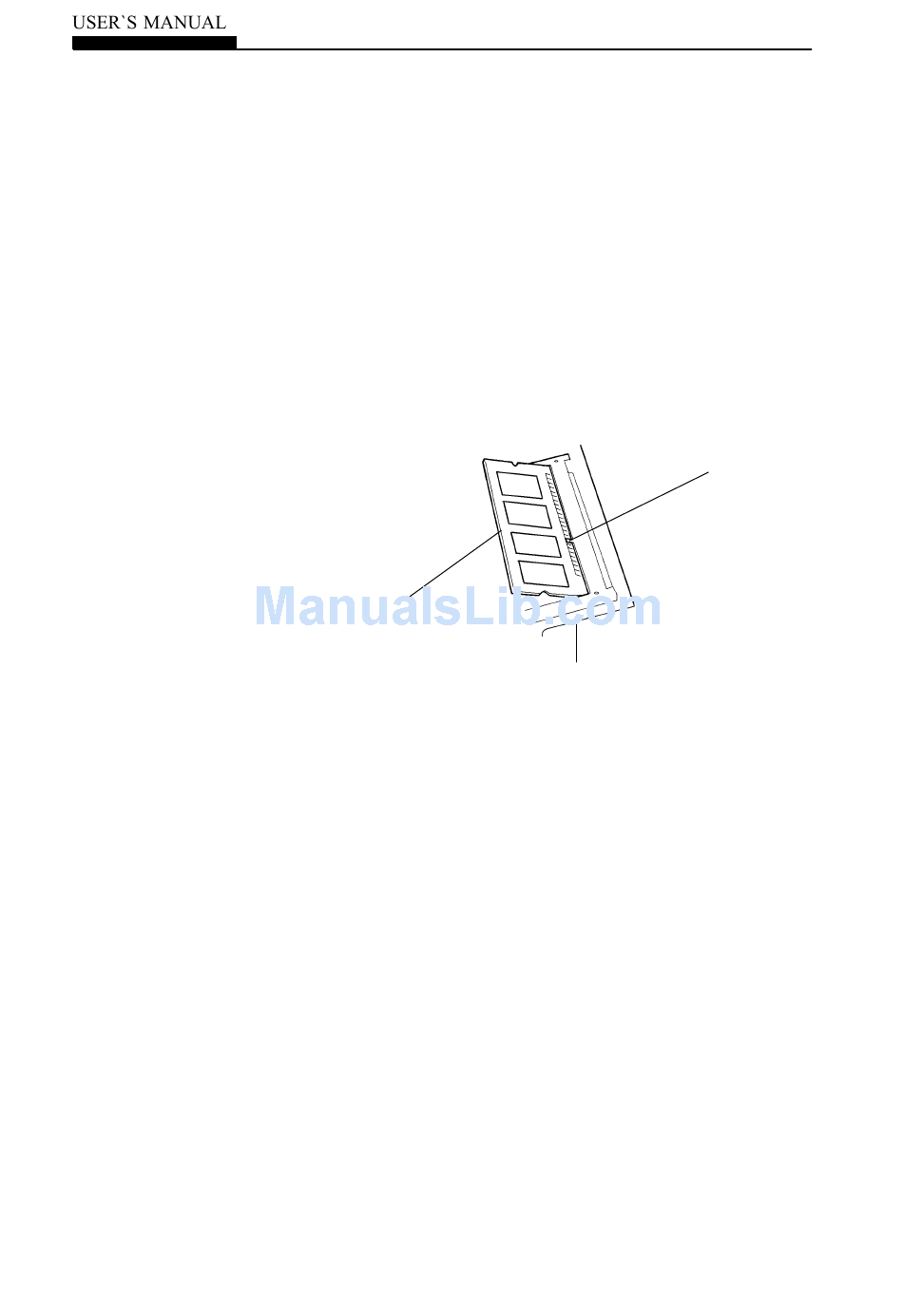

2. Hold the extended memory module at a 30-degree angle
and slide it into the empty momery socket.
DIMM Module
3. Align the small notch in the module with the socket on
the connector and gently push it in and down until it
clicks in place.
4. Pivot the DIMM until the latches on both sides of the
socket snap into place. At the time, you will feel a click.
5. Put the keyboard back to its original face-up position. Be
aware of the flexible PCB connected to the keyboard.
The keyboard should now be locked by the spring-loaded
latches.
Memory Socket
Notch
